AZT241W-DWPGH (2002)

Toyota Caldina

Production Sep 2002 - Jan 2005
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209-0501)

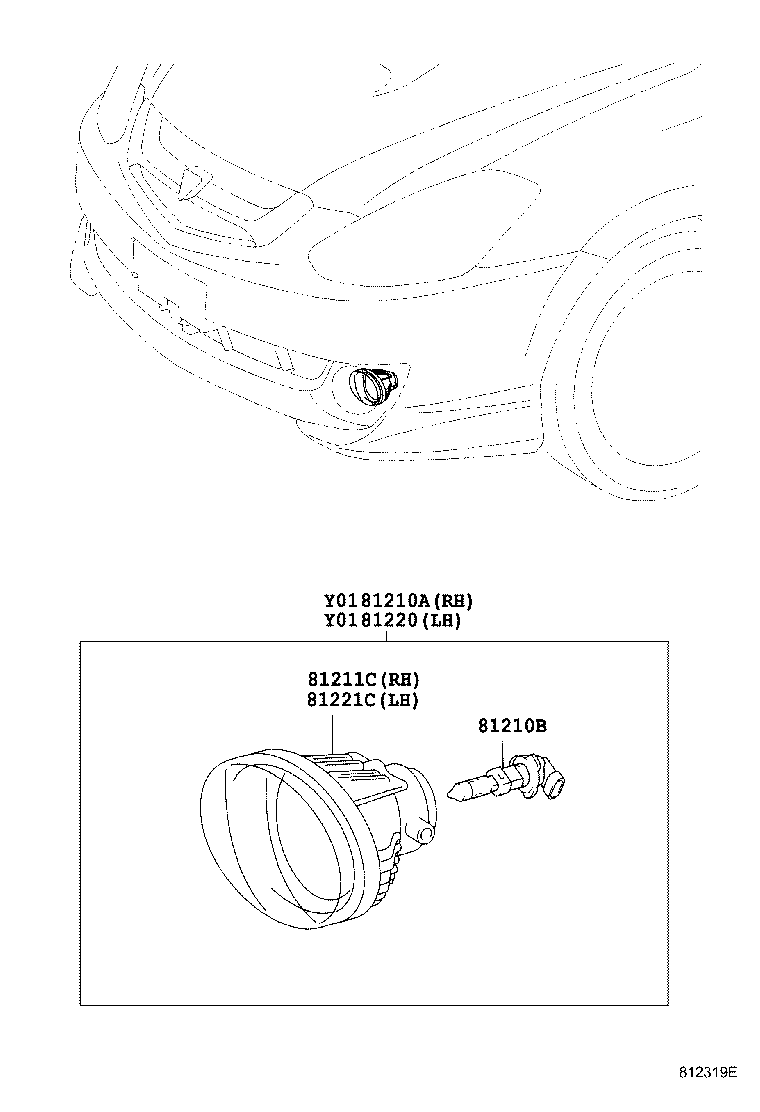

Click highlighted areas on diagram

diagram 81210A 81210B 81211C 81220 81221C
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-21050

AZT24#,ST246

 1
81210B - BULB, FOG LAMP
90981-13047

AZT24#,ST246

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-21050

AZT24#,ST246

 1
81220 - LAMP ASSY, FOG, LH
81220-21050

AZT24#,ST246

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-21050

AZT24#,ST246

 1
