AZT241W-DWPGH (2002)
Toyota Caldina
ILLUST NO. 1 OF 2(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64381C - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
2 | ||
| 64381C - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
2 | ||
| 64381C - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
2 | ||
| 64381C - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
2 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-21020C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-21020C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 64769E - KNOB, JACK COVER | ||||
| 64769-20010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-21050C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 67765A - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67765-21020C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 67766 - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67766-21020C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 74811D - HANDLE, DOOR PULL | ||||
| 74811-13010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90467-10161 | ||||

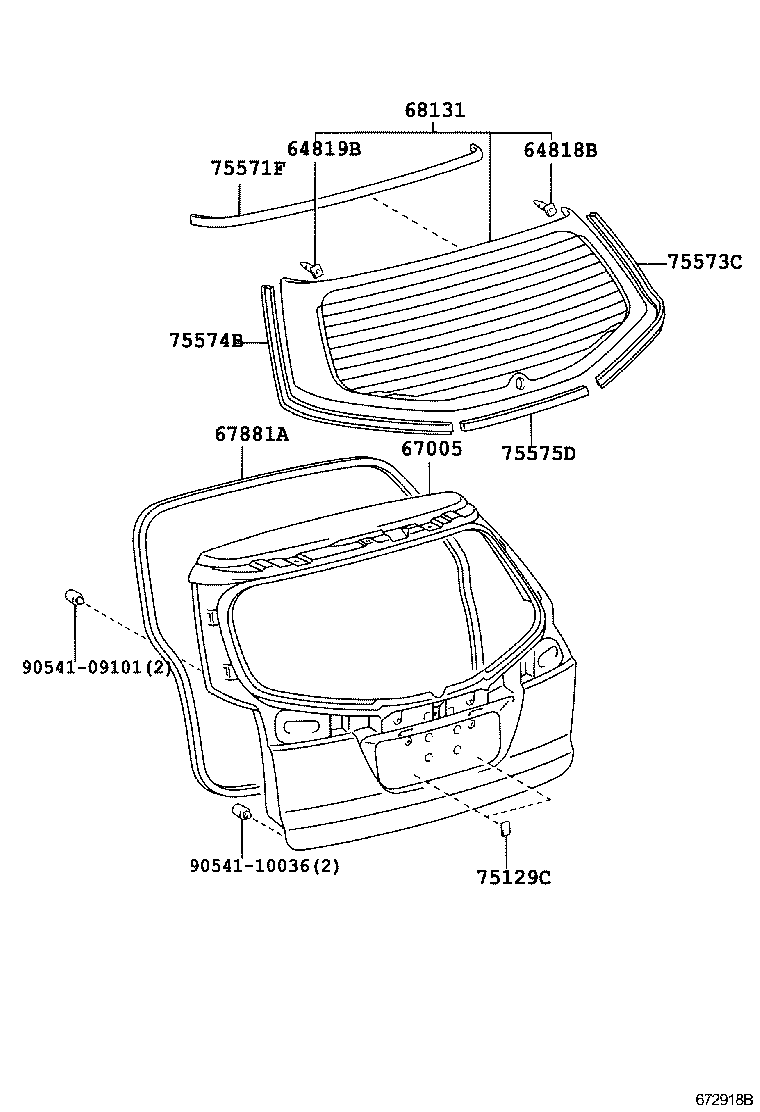

ILLUST NO. 2 OF 2(0209-0501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-21020 |
AZT24#,ST246,ZZT241 |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-21690 |
AZT24#,ST246,ZZT241 ｵｰﾃﾞｨｵ−ﾅﾋﾞ/TV/AM/FM/MD/CDﾁｪﾝｼﾞｬｰ 7ｽﾋﾟｰｶ |
1 | ||
| 67005-21690 |
AZT24#,ST246,ZZT241 ｵｰﾃﾞｨｵ−ﾅﾋﾞ & G−BOOK |
1 | ||
| 67005-21680 |
AZT24#,ST246,ZZT241 |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-21040 |
AZT24#,ST246,ZZT241 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-21220 |
AZT24#,ST246,ZZT241..GT4,Z,ZT *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68131-21230 |
AZT24#,ST246,ZZT241..GT4,Z,ZT *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｵｰﾃﾞｨｵ−ﾅﾋﾞ & G−BOOK |
1 | ||
| 68131-21230 |
AZT24#,ST246,ZZT241..GT4,Z,ZT *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｵｰﾃﾞｨｵ−ﾅﾋﾞ/TV/AM/FM/MD/Ccﾁｪﾝｼﾞｬｰ 7ｽﾋﾟｰｶ |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-21010 |
AZT24#,ST246,ZZT241 |
2 | ||
| 75571F - MOULDIMG, BACK DOOR WINDOW | ||||
| 75571-21040 |
AZT24#,ST246,ZZT241 |
1 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-21020 |
AZT24#,ST246,ZZT241 |
1 | ||
| 75574B - MOULDING, BACK WINDOW, OUTSIDE LH | ||||
| 75574-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-21040 |
AZT24#,ST246,ZZT241 |
1 | ||
| Common parts | ||||
| 90541-09101 | ||||
| 90541-10036 | ||||
