AZT241W-DWPGH (2002)
Toyota Caldina

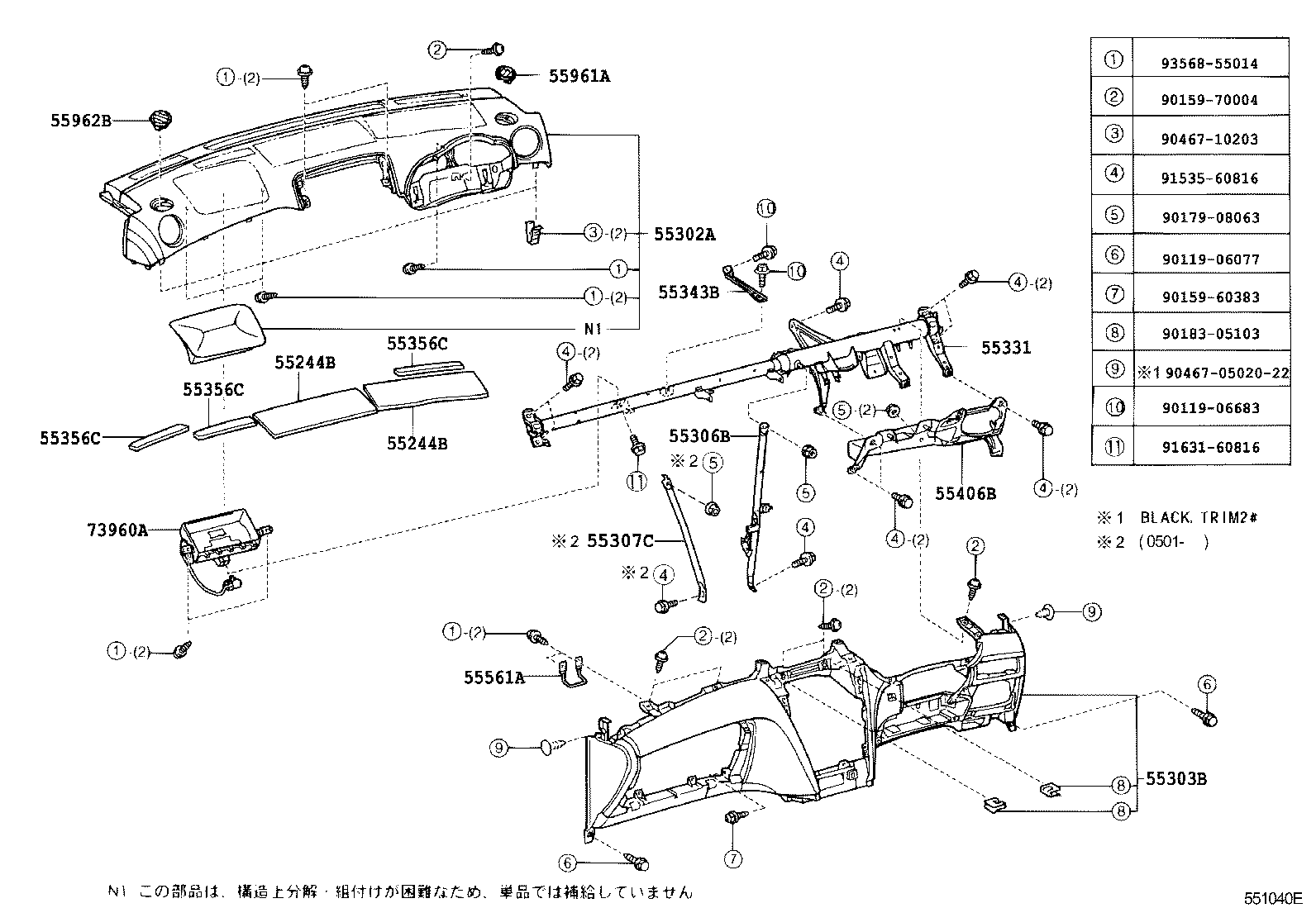

ILLUST NO. 1 OF 2(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55244B - SILENCER, FRONT PANEL SIDE, NO.2 | ||||
| 55244-63010 |
AZT24#,ST246,ZZT241 |
2 | ||
| 55244B - SILENCER, FRONT PANEL SIDE, NO.2 | ||||
| 55244-63010 |
AZT24#,ST246,ZZT241 |
2 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55303-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL | ||||
| 55306-21020 |
AZT24#,ST246,ZZT241 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-21030 |
AZT24#,ST246,ZZT241 |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-20060 |
AZT24#,ST246,ZZT241 |
3 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-20060 |
AZT24#,ST246,ZZT241 |
3 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-20060 |
AZT24#,ST246,ZZT241 |
3 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-21020 |
AZT24#,ST246,ZZT241 |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55961-12220B0 |
AZT24#,ST246,ZZT241 DK.GRAY,TRIM2# |
1 | ||
| 55962B - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55961-12220B0 |
AZT24#,ST246,ZZT241 DK.GRAY,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| Common parts | ||||
| 90119-06077 | ||||
| 90119-06683 | ||||
| 90159-60383 | ||||
| 90159-70004 | ||||
| 90179-08063 | ||||
| 90183-05103 | ||||
| 90467-0502022 | ||||
| 90467-10203 | ||||
| 91535-60816 | ||||
| 91631-60816 | ||||
| 93568-55014 | ||||

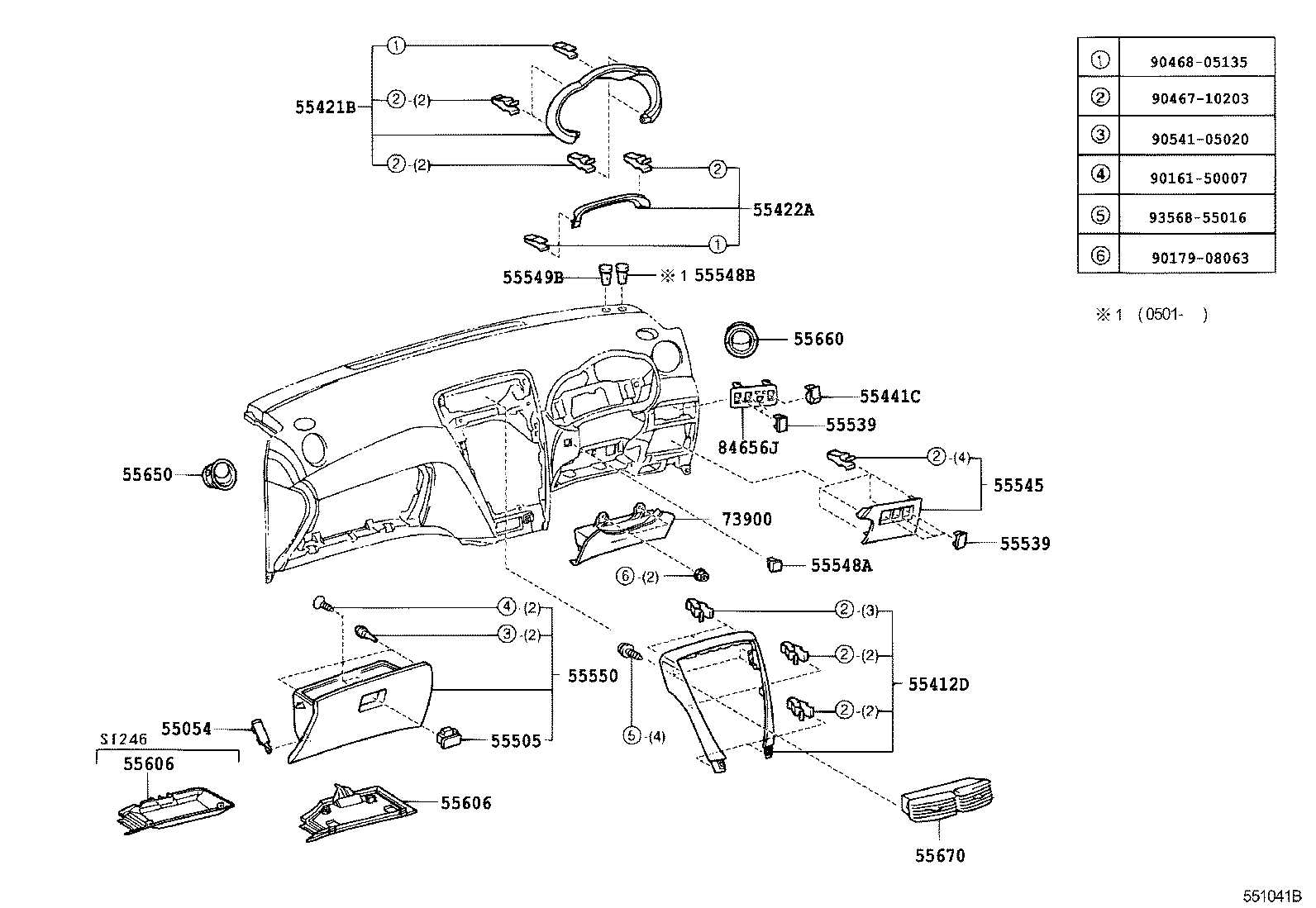

ILLUST NO. 2 OF 2(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-35020 |
AZT24#,ST246,ZZT241 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-21060 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,黒木目 |
1 | ||
| 55412-21050 |
AZT24#,ST246..GT4,ZT ﾌﾞﾙｰ |
1 | ||
| 55412-21040 |
AZT24#,ZZT241..X,Z ｼﾙﾊﾞｰ |
1 | ||
| 55412-21080 |
AZT24#,ST246..GT4,ZT ﾒﾀﾙ ｼﾙﾊﾞｰ |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-21040 |
AZT24#,ST246,ZZT241 |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-20140C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-44010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55506-44010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55540-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55540-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-50020C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55548-50020C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55550-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-20130 |
AZT24#,ST246,ZZT241 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-20130 |
AZT24#,ST246,ZZT241 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-21020C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-21020C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-21020C0 |
AZT24#,ST246,ZZT241 BLACK |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 73900-21010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 84656J - COVER, BEZEL SWITCH HOLE | ||||
| 84656-12100C0 |
AZT24#,ST246,ZZT241..GT4,Z,ZT BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90161-50007 | ||||
| 90179-08063 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 90541-05020 | ||||
| 93568-55016 | ||||
