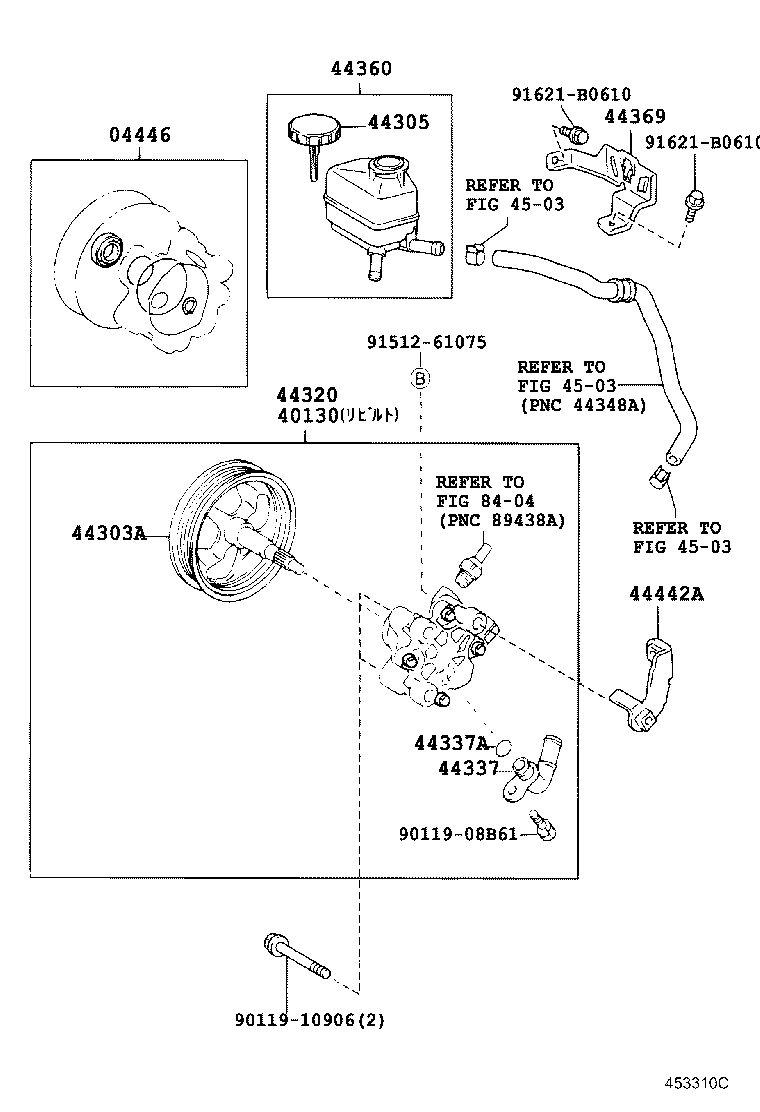

Toyota Caldina AZT241 VANE PUMP & RESERVOIR (POWER STEERING)

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-32050	AZT24#,ZZT241	09/2002 - 01/2005	1
40130 - PUMP ASSY,VANE REBUILT
40130-20870	AZT24#	09/2002 - 01/2005	1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-28010	AZT24#	09/2002 - 01/2005	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-20041	AZT24#,ST246,ZZT241	09/2002 - 01/2005	1
44320 - PUMP ASSY, VANE
44310-20870	AZT24#	09/2002 - 01/2005	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-32110	AZT24#,ZZT241	09/2002 - 01/2005	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11020	AZT24#,ZZT241	09/2002 - 01/2005	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-20150	AZT24#,ST246,ZZT241	09/2002 - 01/2005	1
44369 - BRACKET, OIL RESERVOIR, NO.1
44390-20060	AZT24#,ST246,ZZT241	09/2002 - 01/2005	1
44442A - BRACKET, VANE PUMP, REAR
44442-21010	AZT241	09/2002 - 01/2005	1
Common parts
90119-08B61
90119-10906
91512-61075
91621-B0610
Linked diagrams
4503
8404

AZT241W-DWPGH (2002)
