AZT241W-DWPGH (2005)
Toyota Caldina

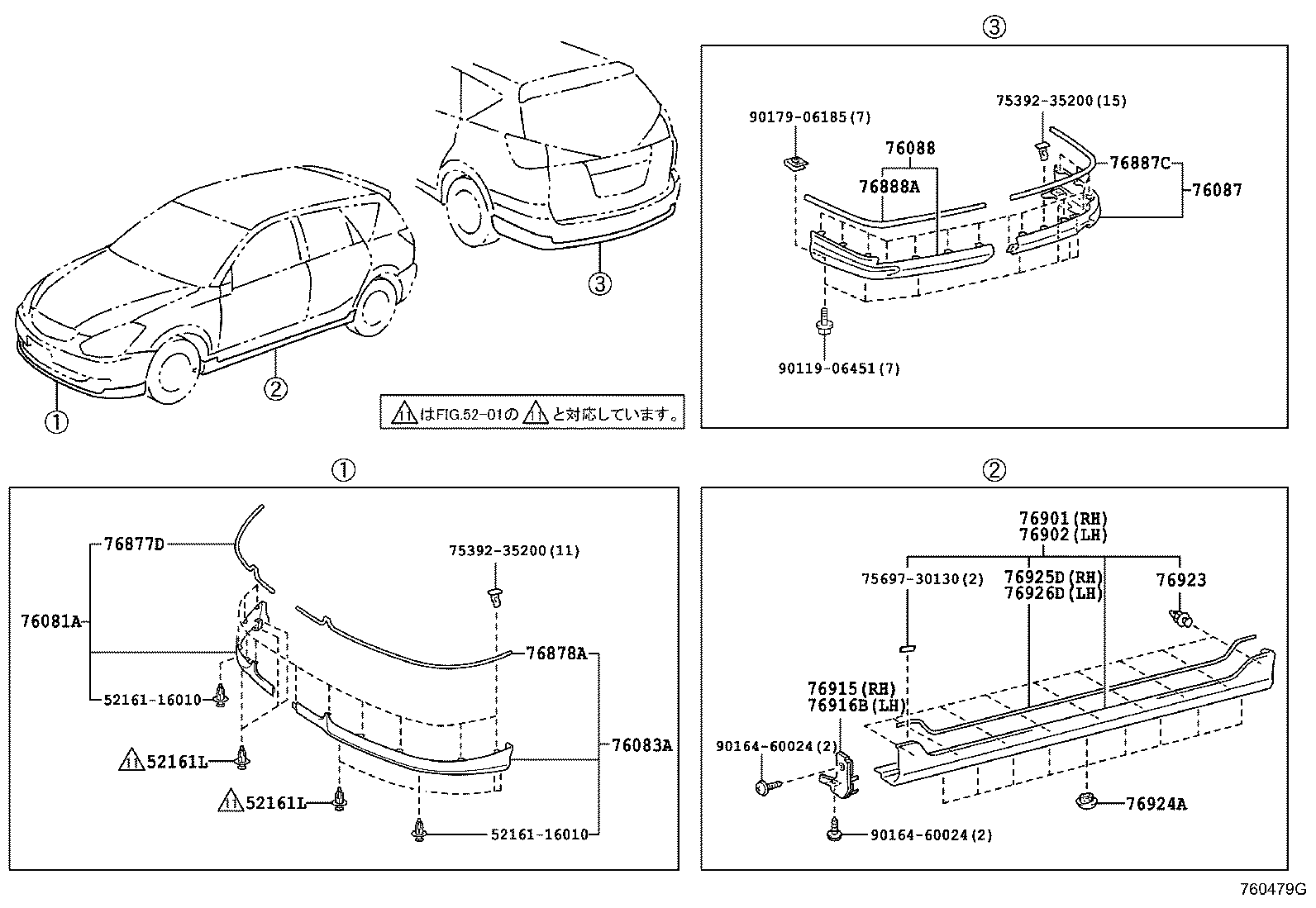

ILLUST NO. 1 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161L - PIECE, FRONT SPOILER | ||||
| 52161-16010 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り |
6 | ||
| 52161-16010 |
AZT24#,ST246..GT4,ZT |
6 | ||
| 52161-16010 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し |
6 | ||
| 52161L - PIECE, FRONT SPOILER | ||||
| 52161-16010 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り |
6 | ||
| 52161-16010 |
AZT24#,ST246..GT4,ZT |
6 | ||
| 52161-16010 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し |
6 | ||
| 76081A - SPOILER SUB-ASSY, FRONT RH | ||||
| 76081-21030A4 |
AZT24#,ST246..GT4,ZT SUPER WHITE 2,040 |
1 | ||
| 76081-21030A4 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SUPER WHITE 2,040 |
1 | ||
| 76081-21030B1 |
AZT24#,ST246..GT4,ZT SILVER ME.,1F7 |
1 | ||
| 76081-21030A5 |
AZT24#,ST246..GT4,ZT WHITE PEARL CS.,070 |
1 | ||
| 76081-21030C1 |
AZT24#,ST246..GT4,ZT BLACK MC.,209 |
1 | ||
| 76081-21030A5 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,WHITE PEARL CS.,070 |
1 | ||
| 76081-21030B1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SILVER ME.,1F7 |
1 | ||
| 76081-21030A5 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,WHITE PEARL CS.,070 |
1 | ||
| 76081-21030D1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SUPER RED 5,3P0 |
1 | ||
| 76081-21030A4 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SUPER WHITE 2,040 |
1 | ||
| 76081-21030D1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SUPER RED 5,3P0 |
1 | ||
| 76081-21030B1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SILVER ME.,1F7 |
1 | ||
| 76081-21030J1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLUE M.M.,8Q1 |
1 | ||
| 76081-21030J1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLUE M.M.,8Q1 |
1 | ||
| 76081-21030J1 |
AZT24#,ST246..GT4,ZT BLUE M.M.,8Q1 |
1 | ||
| 76081-21030D1 |
AZT24#,ST246..GT4,ZT SUPER RED 5,3P0 |
1 | ||
| 76081-21030C1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLACK MC.,209 |
1 | ||
| 76081-21030C1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLACK MC.,209 |
1 | ||
| 76083A - SPOILER SUB-ASSY, FRONT LH | ||||
| 76083-21030A4 |
AZT24#,ST246..GT4,ZT SUPER WHITE 2,040 |
1 | ||
| 76083-21030B1 |
AZT24#,ST246..GT4,ZT SILVER ME.,1F7 |
1 | ||
| 76083-21030A4 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SUPER WHITE 2,040 |
1 | ||
| 76083-21030A5 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,WHITE PEARL CS.,070 |
1 | ||
| 76083-21030B1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SILVER ME.,1F7 |
1 | ||
| 76083-21030B1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SILVER ME.,1F7 |
1 | ||
| 76083-21030A5 |
AZT24#,ST246..GT4,ZT WHITE PEARL CS.,070 |
1 | ||
| 76083-21030D1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SUPER RED 5,3P0 |
1 | ||
| 76083-21030A5 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,WHITE PEARL CS.,070 |
1 | ||
| 76083-21030A4 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SUPER WHITE 2,040 |
1 | ||
| 76083-21030D1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SUPER RED 5,3P0 |
1 | ||
| 76083-21030C1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLACK MC.,209 |
1 | ||
| 76083-21030C1 |
AZT24#,ST246..GT4,ZT BLACK MC.,209 |
1 | ||
| 76083-21030D1 |
AZT24#,ST246..GT4,ZT SUPER RED 5,3P0 |
1 | ||
| 76083-21030J1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLUE M.M.,8Q1 |
1 | ||
| 76083-21030C1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLACK MC.,209 |
1 | ||
| 76083-21030J1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLUE M.M.,8Q1 |
1 | ||
| 76083-21030J1 |
AZT24#,ST246..GT4,ZT BLUE M.M.,8Q1 |
1 | ||
| 76087 - SPOILER SUB-ASSY, REAR NO.1 | ||||
| 76087-21010A0 |
AZT24#,ST246..GT4,ZT SUPER WHITE 2,040 |
1 | ||
| 76087-21010A0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SUPER WHITE 2,040 |
1 | ||
| 76087-21010A1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,WHITE PEARL CS.,070 |
1 | ||
| 76087-21010C0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLACK MC.,209 |
1 | ||
| 76087-21010A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,WHITE PEARL CS.,070 |
1 | ||
| 76087-21010D0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SUPER RED 5,3P0 |
1 | ||
| 76087-21010D0 |
AZT24#,ST246..GT4,ZT SUPER RED 5,3P0 |
1 | ||
| 76087-21010C0 |
AZT24#,ST246..GT4,ZT BLACK MC.,209 |
1 | ||
| 76087-21010J0 |
AZT24#,ST246..GT4,ZT BLUE M.M.,8Q1 |
1 | ||
| 76087-21010B0 |
AZT24#,ST246..GT4,ZT SILVER ME.,1F7 |
1 | ||
| 76087-21010D0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SUPER RED 5,3P0 |
1 | ||
| 76087-21010A1 |
AZT24#,ST246..GT4,ZT WHITE PEARL CS.,070 |
1 | ||
| 76087-21010C0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLACK MC.,209 |
1 | ||
| 76087-21010B0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SILVER ME.,1F7 |
1 | ||
| 76087-21010J0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLUE M.M.,8Q1 |
1 | ||
| 76087-21010A0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SUPER WHITE 2,040 |
1 | ||
| 76087-21010B0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SILVER ME.,1F7 |
1 | ||
| 76087-21010J0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLUE M.M.,8Q1 |
1 | ||
| 76088 - SPOILER SUB-ASSY, REAR NO.2 | ||||
| 76088-21040A0 |
AZT24#,ST246..GT4,ZT SUPER WHITE 2,040 |
1 | ||
| 76088-21040A1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,WHITE PEARL CS.,070 |
1 | ||
| 76088-21040B0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SILVER ME.,1F7 |
1 | ||
| 76088-21040A0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SUPER WHITE 2,040 |
1 | ||
| 76088-21040A0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SUPER WHITE 2,040 |
1 | ||
| 76088-21040C0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLACK MC.,209 |
1 | ||
| 76088-21040A1 |
AZT24#,ST246..GT4,ZT WHITE PEARL CS.,070 |
1 | ||
| 76088-21040B0 |
AZT24#,ST246..GT4,ZT SILVER ME.,1F7 |
1 | ||
| 76088-21040A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,WHITE PEARL CS.,070 |
1 | ||
| 76088-21040J0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLUE M.M.,8Q1 |
1 | ||
| 76088-21040C0 |
AZT24#,ST246..GT4,ZT BLACK MC.,209 |
1 | ||
| 76088-21040D0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SUPER RED 5,3P0 |
1 | ||
| 76088-21040B0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SILVER ME.,1F7 |
1 | ||
| 76088-21040D0 |
AZT24#,ST246..GT4,ZT SUPER RED 5,3P0 |
1 | ||
| 76088-21040D0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SUPER RED 5,3P0 |
1 | ||
| 76088-21040C0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLACK MC.,209 |
1 | ||
| 76088-21040J0 |
AZT24#,ST246..GT4,ZT BLUE M.M.,8Q1 |
1 | ||
| 76088-21040J0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLUE M.M.,8Q1 |
1 | ||
| 76877D - PROTECTOR, FRONT SPOILER SIDE, RH | ||||
| 76877-21040A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,WHITE,040 ,070 |
1 | ||
| 76877-21040A1 |
AZT24#,ST246..GT4,ZT WHITE,040 ,070 |
1 | ||
| 76877-21040J1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLUE,8Q1 |
1 | ||
| 76877-21050B2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,GRAY,1E7 |
1 | ||
| 76877-21050C1 |
AZT24#,ST246..GT4,ZT BLACK,1E9 ,209 ,3P0 |
1 | ||
| 76877-21040E1 |
AZT24#,ST246..GT4,ZT ORANGE,4R1 |
1 | ||
| 76877-21040E1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,ORANGE,4R1 |
1 | ||
| 76877-21040J1 |
AZT24#,ST246..GT4,ZT BLUE,8Q1 |
1 | ||
| 76877-21060A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,WHITE,040 ,070 |
1 | ||
| 76877-21060A1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,WHITE,040 ,070 |
1 | ||
| 76877-21060J0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLUE,8Q1 |
1 | ||
| 76877-21050B2 |
AZT24#,ST246..GT4,ZT GRAY,1E7 |
1 | ||
| 76877-21070B0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,GRAY,1F7 |
1 | ||
| 76877-21060J0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLUE,8Q1 |
1 | ||
| 76877-21070B0 |
AZT24#,ST246..GT4,ZT GRAY,1F7 |
1 | ||
| 76877-21050C1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLACK,1E9 ,209 ,3P0 |
1 | ||
| 76877-21070C0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLACK,209 ,3P0 |
1 | ||
| 76877-21070C0 |
AZT24#,ST246..GT4,ZT BLACK,209 ,3P0 |
1 | ||
| 76877-21060A1 |
AZT24#,ST246..GT4,ZT WHITE,040 ,070 |
1 | ||
| 76877-21060J0 |
AZT24#,ST246..GT4,ZT BLUE,8Q1 |
1 | ||
| 76878A - PROTECTOR, FRONT SPOILER SIDE, LH | ||||
| 76877-21040E1 |
AZT24#,ST246..GT4,ZT ORANGE,4R1 |
1 | ||
| 76877-21040J1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLUE,8Q1 |
1 | ||
| 76877-21040J1 |
AZT24#,ST246..GT4,ZT BLUE,8Q1 |
1 | ||
| 76877-21050C1 |
AZT24#,ST246..GT4,ZT BLACK,1E9 ,209 ,3P0 |
1 | ||
| 76877-21040E1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,ORANGE,4R1 |
1 | ||
| 76877-21040A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,WHITE,040 ,070 |
1 | ||
| 76878-21060A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,WHITE,040 ,070 |
1 | ||
| 76877-21050B2 |
AZT24#,ST246..GT4,ZT GRAY,1E7 |
1 | ||
| 76878-21060A1 |
AZT24#,ST246..GT4,ZT WHITE,040 ,070 |
1 | ||
| 76878-21060J0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLUE,8Q1 |
1 | ||
| 76877-21040A1 |
AZT24#,ST246..GT4,ZT WHITE,040 ,070 |
1 | ||
| 76877-21050C1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLACK,1E9 ,209 ,3P0 |
1 | ||
| 76878-21060J0 |
AZT24#,ST246..GT4,ZT BLUE,8Q1 |
1 | ||
| 76878-21060A1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,WHITE,040 ,070 |
1 | ||
| 76878-21070B0 |
AZT24#,ST246..GT4,ZT GRAY,1F7 |
1 | ||
| 76878-21070C0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLACK,209 ,3P0 |
1 | ||
| 76878-21060J0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLUE,8Q1 |
1 | ||
| 76877-21050B2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,GRAY,1E7 |
1 | ||
| 76878-21070C0 |
AZT24#,ST246..GT4,ZT BLACK,209 ,3P0 |
1 | ||
| 76878-21070B0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,GRAY,1F7 |
1 | ||
| 76887C - PROTECTOR, REAR SPOILER, NO.9 RH | ||||
| 76887-21030J1 |
AZT24#,ST246..GT4,ZT BLUE,8Q1 |
1 | ||
| 76887-21030E1 |
AZT24#,ST246..GT4,ZT ORANGE,4R1 |
1 | ||
| 76887-21040B2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,GRAY,1E7 |
1 | ||
| 76887-21040A1 |
AZT24#,ST246..GT4,ZT WHITE,070 |
1 | ||
| 76887-21030A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,WHITE,040 ,070 |
1 | ||
| 76887-21040B2 |
AZT24#,ST246..GT4,ZT GRAY,1E7 |
1 | ||
| 76887-21030A1 |
AZT24#,ST246..GT4,ZT WHITE,040 ,070 |
1 | ||
| 76887-21030J1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLUE,8Q1 |
1 | ||
| 76887-21030J1 |
AZT24#,ST246..GT4,ZT BLUE,8Q1 |
1 | ||
| 76887-21030E1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,ORANGE,4R1 |
1 | ||
| 76887-21030A1 |
AZT24#,ST246..GT4,ZT WHITE,040 |
1 | ||
| 76887-21040C1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLACK,1E9 ,209 ,3P0 |
1 | ||
| 76887-21030A2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,WHITE,040 ,070 |
1 | ||
| 76887-21030A2 |
AZT24#,ST246..GT4,ZT WHITE,040 ,070 |
1 | ||
| 76887-21040B2 |
AZT24#,ST246..GT4,ZT GRAY,1F7 |
1 | ||
| 76887-21040C1 |
AZT24#,ST246..GT4,ZT BLACK,209 ,3P0 |
1 | ||
| 76887-21030A2 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,WHITE,040 ,070 |
1 | ||
| 76887-21030J1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLUE,8Q1 |
1 | ||
| 76887-21030J1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLUE,8Q1 |
1 | ||
| 76887-21040C1 |
AZT24#,ST246..GT4,ZT BLACK,1E9 ,209 ,3P0 |
1 | ||
| 76887-21040B2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,GRAY,1F7 |
1 | ||
| 76887-21040C1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLACK,209 ,3P0 |
1 | ||
| 76888A - PROTECTOR, REAR SPOILER, NO.9 LH | ||||
| 76887-21040B2 |
AZT24#,ST246..GT4,ZT GRAY,1E7 |
1 | ||
| 76887-21030A1 |
AZT24#,ST246..GT4,ZT WHITE,040 |
1 | ||
| 76887-21030E1 |
AZT24#,ST246..GT4,ZT ORANGE,4R1 |
1 | ||
| 76887-21030A1 |
AZT24#,ST246..GT4,ZT WHITE,040 ,070 |
1 | ||
| 76887-21030A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,WHITE,040 ,070 |
1 | ||
| 76887-21030J1 |
AZT24#,ST246..GT4,ZT BLUE,8Q1 |
1 | ||
| 76887-21040A1 |
AZT24#,ST246..GT4,ZT WHITE,070 |
1 | ||
| 76887-21030J1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLUE,8Q1 |
1 | ||
| 76887-21040B2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,GRAY,1E7 |
1 | ||
| 76887-21030A2 |
AZT24#,ST246..GT4,ZT WHITE,040 ,070 |
1 | ||
| 76887-21030J1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLUE,8Q1 |
1 | ||
| 76887-21040C1 |
AZT24#,ST246..GT4,ZT BLACK,1E9 ,209 ,3P0 |
1 | ||
| 76887-21030A2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,WHITE,040 ,070 |
1 | ||
| 76887-21040C1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLACK,1E9 ,209 ,3P0 |
1 | ||
| 76887-21030E1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,ORANGE,4R1 |
1 | ||
| 76887-21040C1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLACK,209 ,3P0 |
1 | ||
| 76887-21030J1 |
AZT24#,ST246..GT4,ZT BLUE,8Q1 |
1 | ||
| 76887-21040C1 |
AZT24#,ST246..GT4,ZT BLACK,209 ,3P0 |
1 | ||
| 76887-21040B2 |
AZT24#,ST246..GT4,ZT GRAY,1F7 |
1 | ||
| 76887-21030J1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLUE,8Q1 |
1 | ||
| 76887-21030A2 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,WHITE,040 ,070 |
1 | ||
| 76887-21040B2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,GRAY,1F7 |
1 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76901-21040A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,WHITE PEARL CS.,070 |
1 | ||
| 76901-21040B1 |
AZT24#,ST246..GT4,ZT DK.GRAY M.M.,1E9 |
1 | ||
| 76901-21040A1 |
AZT24#,ST246..GT4,ZT WHITE PEARL CS.,070 |
1 | ||
| 76901-21040A1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,WHITE PEARL CS.,070 |
1 | ||
| 76901-21040B1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,DK.GRAY M.M.,1E9 |
1 | ||
| 76901-21040A0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,SUPER WHITE 2,040 |
1 | ||
| 76901-21040A0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,SUPER WHITE 2,040 |
1 | ||
| 76901-21040C0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLACK MC.,209 |
1 | ||
| 76901-21040B1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,DK.GRAY M.M.,1E9 |
1 | ||
| 76901-21040A0 |
AZT24#,ST246..GT4,ZT SUPER WHITE 2,040 |
1 | ||
| 76901-21040B0 |
AZT24#,ST246..GT4,ZT SILVER M.M.,1E7 |
1 | ||
| 76901-21040J0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLUE M.M.,8Q1 |
1 | ||
| 76901-21040J0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,BLUE M.M.,8Q1 |
1 | ||
| 76901-21040C0 |
AZT24#,ST246..GT4,ZT BLACK MC.,209 |
1 | ||
| 76901-21040B0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,SILVER M.M.,1E7 |
1 | ||
| 76901-21040A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,WHITE PEARL CS.,070 |
1 | ||
| 76901-21040J0 |
AZT24#,ST246..GT4,ZT BLUE M.M.,8Q1 |
1 | ||
| 76901-21040B0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,SILVER M.M.,1E7 |
1 | ||
| 76901-21040C0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,BLACK MC.,209 |
1 | ||
| 76901-21040E0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,ORANGE ME.,4R1 |
1 | ||
| 76901-21040E0 |
AZT24#,ST246..GT4,ZT ORANGE ME.,4R1 |
1 | ||
| 76901-21040A0 |
AZT24#,ST246..GT4,ZT SUPER WHITE 2,040 |
1 | ||
| 76901-21040A0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SUPER WHITE 2,040 |
1 | ||
| 76901-21040A1 |
AZT24#,ST246..GT4,ZT WHITE PEARL CS.,070 |
1 | ||
| 76901-21040A1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,WHITE PEARL CS.,070 |
1 | ||
| 76901-21040B2 |
AZT24#,ST246..GT4,ZT SILVER ME.,1F7 |
1 | ||
| 76901-21040A0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SUPER WHITE 2,040 |
1 | ||
| 76901-21040B2 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SILVER ME.,1F7 |
1 | ||
| 76901-21040C0 |
AZT24#,ST246..GT4,ZT BLACK MC.,209 |
1 | ||
| 76901-21040D0 |
AZT24#,ST246..GT4,ZT SUPER RED 5,3P0 |
1 | ||
| 76901-21040E0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,ORANGE ME.,4R1 |
1 | ||
| 76901-21040J0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLUE M.M.,8Q1 |
1 | ||
| 76901-21040D0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SUPER RED 5,3P0 |
1 | ||
| 76901-21040C0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLACK MC.,209 |
1 | ||
| 76901-21040D0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SUPER RED 5,3P0 |
1 | ||
| 76901-21040J0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLUE M.M.,8Q1 |
1 | ||
| 76901-21040B2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SILVER ME.,1F7 |
1 | ||
| 76901-21040C0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLACK MC.,209 |
1 | ||
| 76901-21040J0 |
AZT24#,ST246..GT4,ZT BLUE M.M.,8Q1 |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76902-21040A0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,SUPER WHITE 2,040 |
1 | ||
| 76902-21040A1 |
AZT24#,ST246..GT4,ZT WHITE PEARL CS.,070 |
1 | ||
| 76902-21040A0 |
AZT24#,ST246..GT4,ZT SUPER WHITE 2,040 |
1 | ||
| 76902-21040A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,WHITE PEARL CS.,070 |
1 | ||
| 76902-21040B0 |
AZT24#,ST246..GT4,ZT SILVER M.M.,1E7 |
1 | ||
| 76902-21040B1 |
AZT24#,ST246..GT4,ZT DK.GRAY M.M.,1E9 |
1 | ||
| 76902-21040B1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,DK.GRAY M.M.,1E9 |
1 | ||
| 76902-21040B0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,SILVER M.M.,1E7 |
1 | ||
| 76902-21040A0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,SUPER WHITE 2,040 |
1 | ||
| 76902-21040A1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,WHITE PEARL CS.,070 |
1 | ||
| 76902-21040B0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,SILVER M.M.,1E7 |
1 | ||
| 76902-21040E0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,ORANGE ME.,4R1 |
1 | ||
| 76902-21040C0 |
AZT24#,ST246..GT4,ZT BLACK MC.,209 |
1 | ||
| 76902-21040E0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,ORANGE ME.,4R1 |
1 | ||
| 76902-21040C0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,BLACK MC.,209 |
1 | ||
| 76902-21040E0 |
AZT24#,ST246..GT4,ZT ORANGE ME.,4R1 |
1 | ||
| 76902-21040J0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLUE M.M.,8Q1 |
1 | ||
| 76902-21040B1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,DK.GRAY M.M.,1E9 |
1 | ||
| 76902-21040C0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLACK MC.,209 |
1 | ||
| 76902-21040J0 |
AZT24#,ST246..GT4,ZT BLUE M.M.,8Q1 |
1 | ||
| 76902-21040J0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,BLUE M.M.,8Q1 |
1 | ||
| 76902-21040A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,WHITE PEARL CS.,070 |
1 | ||
| 76902-21040B2 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SILVER ME.,1F7 |
1 | ||
| 76902-21040A0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SUPER WHITE 2,040 |
1 | ||
| 76902-21040A0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SUPER WHITE 2,040 |
1 | ||
| 76902-21040C0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLACK MC.,209 |
1 | ||
| 76902-21040D0 |
AZT24#,ST246..GT4,ZT SUPER RED 5,3P0 |
1 | ||
| 76902-21040D0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SUPER RED 5,3P0 |
1 | ||
| 76902-21040A0 |
AZT24#,ST246..GT4,ZT SUPER WHITE 2,040 |
1 | ||
| 76902-21040B2 |
AZT24#,ST246..GT4,ZT SILVER ME.,1F7 |
1 | ||
| 76902-21040J0 |
AZT24#,ST246..GT4,ZT BLUE M.M.,8Q1 |
1 | ||
| 76902-21040D0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,SUPER RED 5,3P0 |
1 | ||
| 76902-21040A1 |
AZT24#,ST246..GT4,ZT WHITE PEARL CS.,070 |
1 | ||
| 76902-21040B2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,SILVER ME.,1F7 |
1 | ||
| 76902-21040C0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLACK MC.,209 |
1 | ||
| 76902-21040J0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLUE M.M.,8Q1 |
1 | ||
| 76902-21040A1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,WHITE PEARL CS.,070 |
1 | ||
| 76902-21040C0 |
AZT24#,ST246..GT4,ZT BLACK MC.,209 |
1 | ||
| 76902-21040J0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,BLUE M.M.,8Q1 |
1 | ||
| 76915 - MUDGUARD, REAR DOOR, RH | ||||
| 76915-21020 |
AZT24#,ST246..GT4,ZT |
1 | ||
| 76915-21020 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り |
1 | ||
| 76915-21020 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し |
1 | ||
| 76915-21020 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し |
1 | ||
| 76915-21020 |
AZT24#,ST246..GT4,ZT |
1 | ||
| 76915-21020 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り |
1 | ||
| 76916B - MUDGUARD, REAR DOOR, LH | ||||
| 76916-21020 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り |
1 | ||
| 76916-21020 |
AZT24#,ST246..GT4,ZT |
1 | ||
| 76916-21020 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し |
1 | ||
| 76916-21020 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り |
1 | ||
| 76916-21020 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し |
1 | ||
| 76916-21020 |
AZT24#,ST246..GT4,ZT |
1 | ||
| 76923 - RETAINER, SIDE MUDGUARD | ||||
| 76923-21010 |
AZT24#,ST246..GT4,ZT |
18 | ||
| 76923-21010 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り |
18 | ||
| 76923-21010 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し |
18 | ||
| 76923-21010 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し |
18 | ||
| 76923-21010 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り |
18 | ||
| 76923-21010 |
AZT24#,ST246..GT4,ZT |
18 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-52021 |
AZT24#,ST246..GT4,ZT |
18 | ||
| 76924-52021 |
AZT24#,ST246..GT4,ZT |
18 | ||
| 76924-52021 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り |
18 | ||
| 76924-52021 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し |
18 | ||
| 76924-52021 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り |
18 | ||
| 76924-52021 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し |
18 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-21030A1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,WHITE,040 ,070 |
1 | ||
| 76925-21030A1 |
AZT24#,ST246..GT4,ZT WHITE,040 ,070 |
1 | ||
| 76925-21030E1 |
AZT24#,ST246..GT4,ZT ORANGE,4R1 |
1 | ||
| 76925-21030J1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLUE,8Q1 |
1 | ||
| 76925-21040B2 |
AZT24#,ST246..GT4,ZT GRAY,1E7 |
1 | ||
| 76925-21030A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,WHITE,040 ,070 |
1 | ||
| 76925-21040B2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,GRAY,1E7 |
1 | ||
| 76925-21040C1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,BLACK,1E9 ,209 ,3P0 |
1 | ||
| 76925-21030A2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,WHITE,040 ,070 |
1 | ||
| 76925-21040C1 |
AZT24#,ST246..GT4,ZT BLACK,1E9 ,209 ,3P0 |
1 | ||
| 76925-21040C1 |
AZT24#,ST246..GT4,ZT BLACK,209 ,211 ,3P0 |
1 | ||
| 76925-21040C1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLACK,209 ,211 ,3P0 |
1 | ||
| 76925-21030J1 |
AZT24#,ST246..GT4,ZT BLUE,8Q1 |
1 | ||
| 76925-21030J1 |
AZT24#,ST246..GT4,ZT BLUE,8Q1 |
1 | ||
| 76925-21030J1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLUE,8Q1 |
1 | ||
| 76925-21040B2 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,GRAY,1E7 |
1 | ||
| 76925-21040C1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLACK,1E9 ,209 ,3P0 |
1 | ||
| 76925-21030E1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,ORANGE,4R1 |
1 | ||
| 76925-21030E1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,ORANGE,4R1 |
1 | ||
| 76925-21030A2 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,WHITE,040 ,070 |
1 | ||
| 76925-21030A2 |
AZT24#,ST246..GT4,ZT WHITE,040 ,070 |
1 | ||
| 76925-21040B2 |
AZT24#,ST246..GT4,ZT GRAY,1F7 |
1 | ||
| 76925-21030J1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,BLUE,8Q1 |
1 | ||
| 76925-21040B2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,GRAY,1F7 |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76925-21030A1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,WHITE,040 ,070 |
1 | ||
| 76925-21030E1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,ORANGE,4R1 |
1 | ||
| 76925-21030A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,WHITE,040 ,070 |
1 | ||
| 76925-21040C1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLACK,1E9 ,209 ,3P0 |
1 | ||
| 76925-21040C1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,BLACK,1E9 ,209 ,3P0 |
1 | ||
| 76925-21040B2 |
AZT24#,ST246..GT4,ZT GRAY,1E7 |
1 | ||
| 76925-21030E1 |
AZT24#,ST246..GT4,ZT ORANGE,4R1 |
1 | ||
| 76925-21030E1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,ORANGE,4R1 |
1 | ||
| 76925-21030J1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,BLUE,8Q1 |
1 | ||
| 76925-21040C1 |
AZT24#,ST246..GT4,ZT BLACK,1E9 ,209 ,3P0 |
1 | ||
| 76925-21030J1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLUE,8Q1 |
1 | ||
| 76925-21040B2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,GRAY,1E7 |
1 | ||
| 76925-21030A2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,WHITE,040 ,070 |
1 | ||
| 76925-21030A1 |
AZT24#,ST246..GT4,ZT WHITE,040 ,070 |
1 | ||
| 76925-21040B2 |
AZT24#,ST246..GT4,ZT GRAY,1F7 |
1 | ||
| 76925-21040B2 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,GRAY,1E7 |
1 | ||
| 76925-21030J1 |
AZT24#,ST246..GT4,ZT BLUE,8Q1 |
1 | ||
| 76925-21030A2 |
AZT24#,ST246..GT4,ZT WHITE,040 ,070 |
1 | ||
| 76925-21030J1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLUE,8Q1 |
1 | ||
| 76925-21040C1 |
AZT24#,ST246..GT4,ZT BLACK,209 ,211 ,3P0 |
1 | ||
| 76925-21040C1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,BLACK,209 ,211 ,3P0 |
1 | ||
| 76925-21030A2 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−無し,WHITE,040 ,070 |
1 | ||
| 76925-21040B2 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ−有り,GRAY,1F7 |
1 | ||
| 76925-21030J1 |
AZT24#,ST246..GT4,ZT BLUE,8Q1 |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 75392-35200 | ||||
| 75697-30130 | ||||
| 90119-06451 | ||||
| 90164-60024 | ||||
| 90179-06185 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
