AT211G-DWPEK (1997)
Toyota Caldina
Production
Aug 1997
-
Sep 2002
Engine
7AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

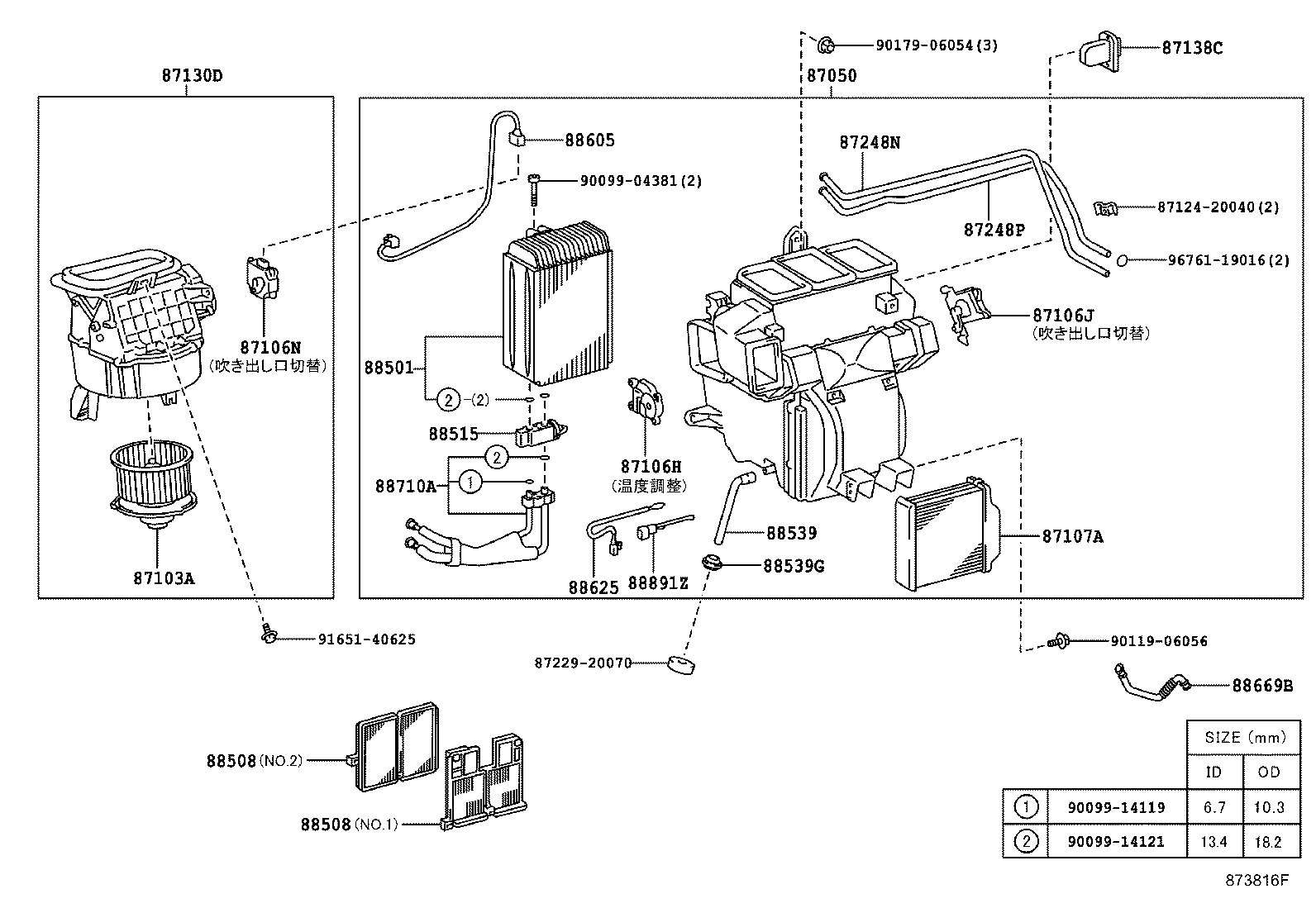

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-21070 |
AT211,CT216,ST21# |
1 | ||
| 87050-21080 |
AT211,CT216,ST21# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-22120 |
AT211,CT216,ST21# |
1 | ||
| 87103-20110 |
AT211,CT216,ST21# |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-20350 |
AT211,CT216,ST21# |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-20220 |
AT211,CT216,ST21# |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-20360 |
AT211,CT216,ST21# |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-20600 |
AT211,CT216,ST21# |
1 | ||
| 87107-20680 |
AT211,CT216,ST21# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-20530 |
AT211,CT216,ST21# |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87165-21010 |
AT211,CT216,ST21# |
1 | ||
| 87165-32010 |
AT211,CT216,ST21# |
1 | ||
| 87248N - PIPE, HEATER WATER INLET | ||||
| 87248-20360 |
AT211,CT216,ST21# |
1 | ||
| 87248P - PIPE, HEATER WATER OUTLET | ||||
| 87248-20370 |
AT211,CT216,ST21# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20291 |
AT211,CT216,ST21# |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20070 |
AT211,CT216,ST21# NO.2 |
1 | ||
| 88508-20060 |
AT211,CT216,ST21# NO.1 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20070 |
AT211,CT216,ST21# NO.2 |
1 | ||
| 88508-20060 |
AT211,CT216,ST21# NO.1 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
AT211,CT216,ST21# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20270 |
AT211,CT216,ST21# |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26022 |
AT211,CT216,ST21# |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2D470 |
AT211,CT216,ST21# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A090 |
AT211,CT216,ST21# |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-20150 |
AT211,CT216,ST21# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20600 |
AT211,CT216,ST21# |
1 | ||
| 88891Z - BRACKET, COOLER THERMISTOR | ||||
| 88891-20240 |
AT211,CT216,ST21# |
1 | ||
| Common parts | ||||
| 87124-20040 | ||||
| 87229-20070 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90119-06056 | ||||
| 90179-06054 | ||||
| 91651-40625 | ||||
| 96761-19016 | ||||
