AT211G-DWPEK (1997)
Toyota Caldina
Production
Aug 1997
-
Sep 2002
Engine
7AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

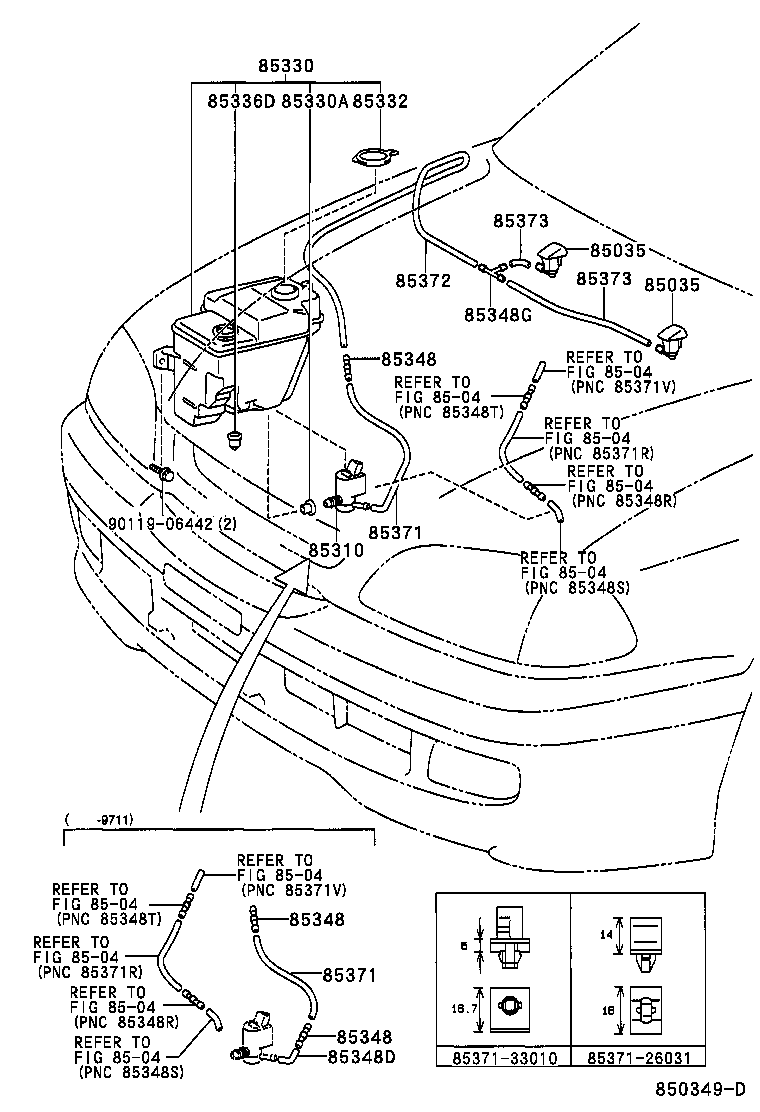

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12050 |
AT211,CT216,ST21# |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12050 |
AT211,CT216,ST21# |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-10290 |
AT211,CT216,ST21# |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-20390 |
AT211,CT216,ST21# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AT211,CT216,ST21# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-12290 |
AT211,CT216,ST21# |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-20340 |
AT211,CT216,ST21# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT211,CT216,ST21# |
2 | ||
| 85349-89122 |
AT211,CT216,ST21# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT211,CT216,ST21# |
2 | ||
| 85349-89122 |
AT211,CT216,ST21# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT211,CT216,ST21# |
2 | ||
| 85349-89122 |
AT211,CT216,ST21# |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
AT211,CT216,ST21# |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-12250 |
AT211,CT216,ST21# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
AT211,CT216,ST21# *H,L=530 |
1 | ||
| 90446-07001 |
AT211,CT216,ST21# *H,L=480 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
AT211,CT216,ST21# *H,L=530 |
1 | ||
| 90446-07001 |
AT211,CT216,ST21# *H,L=480 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33224 |
AT211,CT216,ST21# L=1200 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AT211,CT216,ST21# *H,L=70 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AT211,CT216,ST21# *H,L=70 |
1 | ||
| Common parts | ||||
| 85371-26031 | ||||
| 85371-33010 | ||||
| 90119-06442 | ||||
| Linked diagrams | ||||
| 8504 | ||||
