AT211G-DWPEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

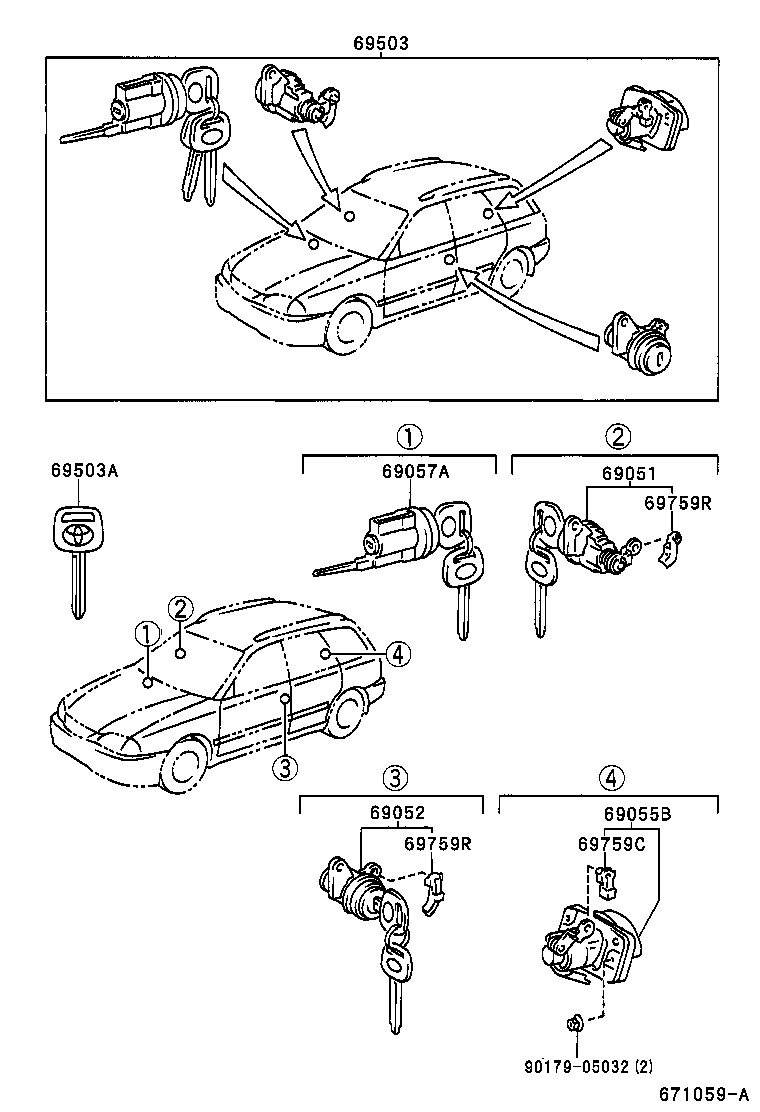

Click highlighted areas on diagram

diagram 69051 69052 69055B 69057A 69503 69503A 69759C 69759R 69759R 9017905032
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-21080

AT211,CT216,ST21#

 1
69051-21081

AT211,CT216,ST21#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-21081

AT211,CT216,ST21#

 1
69052-21080

AT211,CT216,ST21#

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-21060

AT211,CT216,ST21#

 1
69055-21050

AT211,CT216,ST21#

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-21050

AT211,CT216,ST21#..E

 1
69057-21051

AT211,CT216,ST21#..E

 1
69503 - CYLINDER SET, LOCK
69005-21130

AT211,CT216,ST21#..E

 1
69005-21150

AT211,CT216,ST21#..E

 1
69503A - KEY, BLANK
90999-00185

AT211,CT216,ST21#

ﾏｽﾀｰｷｰ,*68付き

 3
69759C - SNAP, BACK DOOR LOCK CYLINDER
69759-20080

AT211,CT216,ST21#

ｵﾚﾝｼﾞ

 1
69759-24060

AT211,CT216,ST21#

ｸﾞﾚｰ

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-12090

AT211,CT216,ST21#

左側

 1
69759-12080

AT211,CT216,ST21#

右側

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-12090

AT211,CT216,ST21#

左側

 1
69759-12080

AT211,CT216,ST21#

右側

 1
Common parts
90179-05032
