AT211G-DWPEK (1997)
Toyota Caldina
(9708- )7AFE

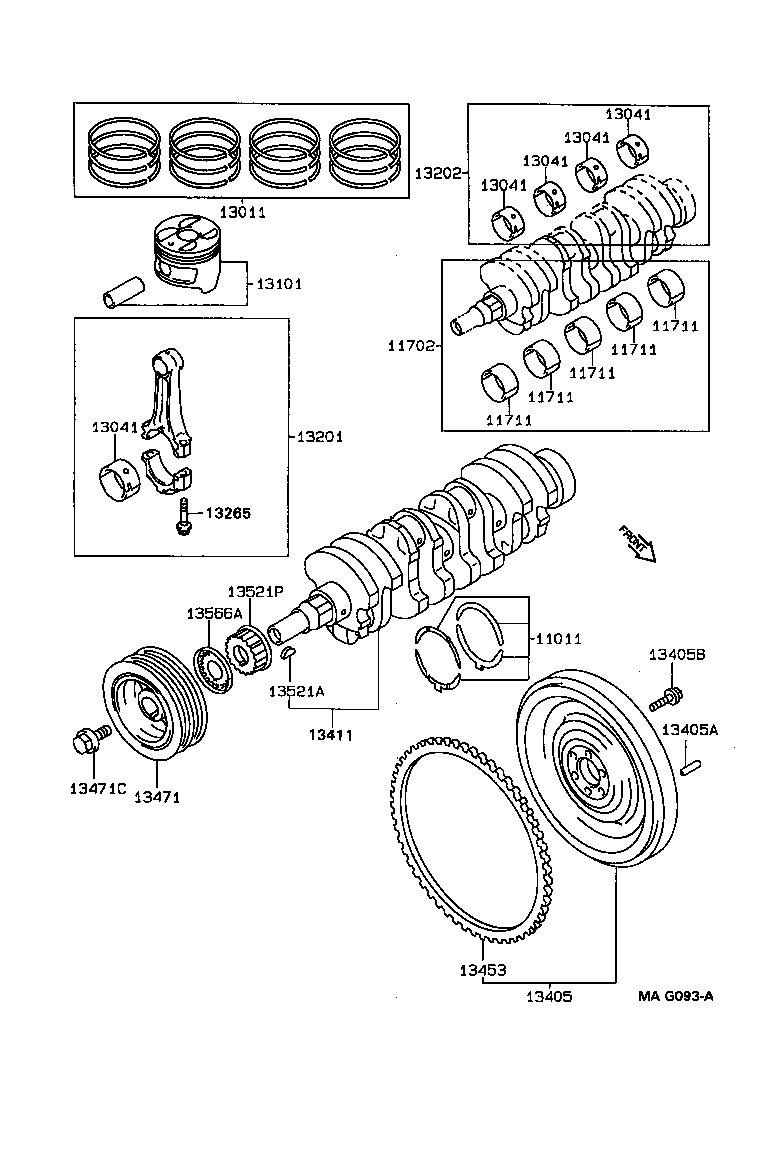

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-15020 |
7AFE..AT211 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-16010 |
7AFE..AT211 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1601002 |
7AFE..AT211 MARK 2 |
5 | ||
| 11701-1601001 |
7AFE..AT211 MARK 1 |
5 | ||
| 11701-1601005 |
7AFE..AT211 MARK 5 |
5 | ||
| 11701-1601003 |
7AFE..AT211 MARK 3 |
5 | ||
| 11701-1601004 |
7AFE..AT211 MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1601002 |
7AFE..AT211 MARK 2 |
5 | ||
| 11701-1601001 |
7AFE..AT211 MARK 1 |
5 | ||
| 11701-1601005 |
7AFE..AT211 MARK 5 |
5 | ||
| 11701-1601003 |
7AFE..AT211 MARK 3 |
5 | ||
| 11701-1601004 |
7AFE..AT211 MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1601002 |
7AFE..AT211 MARK 2 |
5 | ||
| 11701-1601001 |
7AFE..AT211 MARK 1 |
5 | ||
| 11701-1601005 |
7AFE..AT211 MARK 5 |
5 | ||
| 11701-1601003 |
7AFE..AT211 MARK 3 |
5 | ||
| 11701-1601004 |
7AFE..AT211 MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1601002 |
7AFE..AT211 MARK 2 |
5 | ||
| 11701-1601001 |
7AFE..AT211 MARK 1 |
5 | ||
| 11701-1601005 |
7AFE..AT211 MARK 5 |
5 | ||
| 11701-1601003 |
7AFE..AT211 MARK 3 |
5 | ||
| 11701-1601004 |
7AFE..AT211 MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1601002 |
7AFE..AT211 MARK 2 |
5 | ||
| 11701-1601001 |
7AFE..AT211 MARK 1 |
5 | ||
| 11701-1601005 |
7AFE..AT211 MARK 5 |
5 | ||
| 11701-1601003 |
7AFE..AT211 MARK 3 |
5 | ||
| 11701-1601004 |
7AFE..AT211 MARK 4 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-16340 |
7AFE..AT211 STD |
1 | ||
| 13013-16340 |
7AFE..AT211 O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1609003 |
7AFE..AT211 MARK 3 |
4 | ||
| 13041-1609001 |
7AFE..AT211 MARK 1 |
4 | ||
| 13041-1609002 |
7AFE..AT211 MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1609003 |
7AFE..AT211 MARK 3 |
4 | ||
| 13041-1609001 |
7AFE..AT211 MARK 1 |
4 | ||
| 13041-1609002 |
7AFE..AT211 MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1609003 |
7AFE..AT211 MARK 3 |
4 | ||
| 13041-1609001 |
7AFE..AT211 MARK 1 |
4 | ||
| 13041-1609002 |
7AFE..AT211 MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1609003 |
7AFE..AT211 MARK 3 |
4 | ||
| 13041-1609001 |
7AFE..AT211 MARK 1 |
4 | ||
| 13041-1609002 |
7AFE..AT211 MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1609003 |
7AFE..AT211 MARK 3 |
4 | ||
| 13041-1609001 |
7AFE..AT211 MARK 1 |
4 | ||
| 13041-1609002 |
7AFE..AT211 MARK 2 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-1615001 |
7AFE..AT211 STD,MARK 1 |
4 | ||
| 13101-1615002 |
7AFE..AT211 STD,MARK 2 |
4 | ||
| 13103-16150 |
7AFE..AT211 O/S 0.50 |
4 | ||
| 13101-1615003 |
7AFE..AT211 STD,MARK 3 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-19145 |
7AFE..AT211 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-16090 |
7AFE..AT211 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-16050 |
7AFE..AT211 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-16903 |
7AFE..AT211 |
1 | ||
| 13411-02900 |
7AFE..AT211 (L) |
1 | ||
| 13411-16903 |
7AFE..AT211 (J) |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-16100 |
7AFE..AT211 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-12314 |
7AFE..AT211 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05005 |
7AFE..AT211 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-16050 |
7AFE..AT211 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-15020 |
7AFE..AT211 |
1 | ||
