AT211G-DWMEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

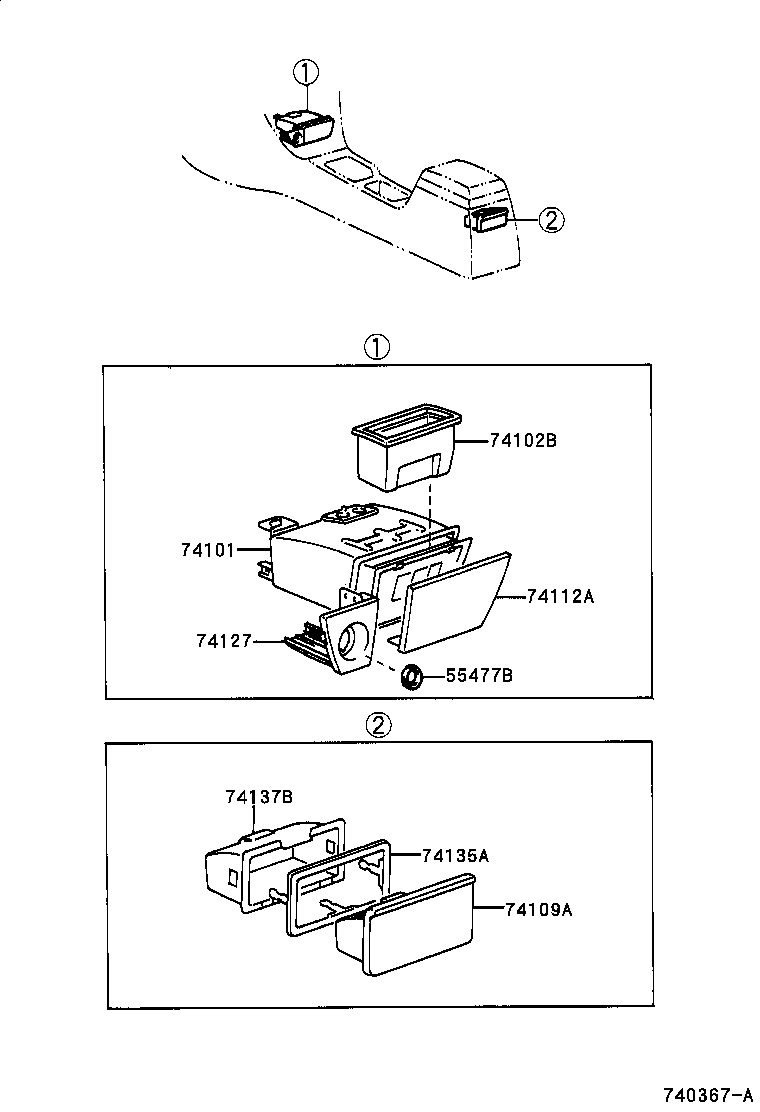

Click highlighted areas on diagram

diagram 55477B 74101 74102B 74109A 74112A 74127 74135A 74137B
Part # Description Qty Price
55477B - BEZEL, CIGARETTE LIGHTER HOLE
55477-32030

AT211,CT216,ST21#..E,G

 1
55477-32030

AT211,CT216,ST21#

 1
74101 - RECEPTACLE SUB-ASSY, FRONT ASH
74101-21010

AT211,CT216,ST21#

 1
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-21010

AT211,CT216,ST21#

 1
74109A - BOX SUB-ASSY, ASH RECEPTACLE
74109-12020B4

AT211,CT216,ST21#

DK.CHARCOAL,TRIM2#

 1
74109-12020B3

AT211,CT216,ST21#

MD.CHARCOAL,TRIM1#

 1
74112A - DOOR, FRONT ASH RECEPTACLE
74112-21010

AT211,CT216,ST21#..E,G

 1
74112-21020

ST215..5F..GTT;AT211,CT216,ST21#..E,G,GT

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
74127 - BEZEL, FRONT ASH RECEPTACLE
74127-21020

ST215..5F..GTT;AT211,CT216,ST21#..E,G,GT

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
74127-21010

AT211,CT216,ST21#..E,G

 1
74135A - RETAINER, REAR ASH RECEPTACLE, NO.1
74135-12020

AT211,CT216,ST21#

 1
74137B - RETAINER, REAR ASH RECEPTACLE, INNER
74137-12010

AT211,CT216,ST21#

 1
