AT211G-DWMEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

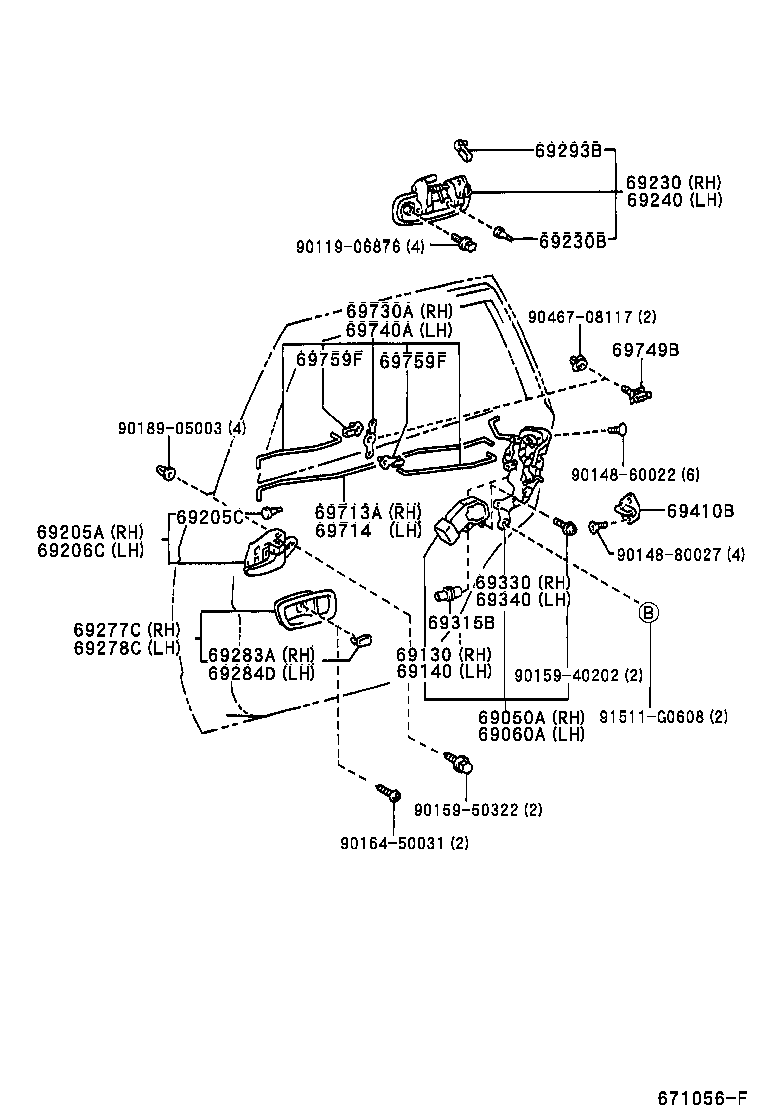

Click highlighted areas on diagram

diagram 69050A 69060A 69130 69140 69205A 69205C 69206C 69230 69230B 69240 69277C 69278C 69283A 69284D 69293B 69315B 69330 69340 69410B 69713A 69714 69730A 69740A 69749B 69759F 69759F 9011906876 9014860022 9014880027 9015940202 9015950322 9016450031 9018905003 9046708117 91511G0608
Part # Description Qty Price
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-21010

AT211,CT216,ST21#

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-21010

AT211,CT216,ST21#

 1
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-21010

AT211,CT216,ST21#

 1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-21010

AT211,CT216,ST21#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-30120B1

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
69205-30120C0

AT211,CT216,ST21#..E

BLACK,TRIM2#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

AT211,CT216,ST21#

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-30120C0

AT211,CT216,ST21#..E

BLACK,TRIM2#

 1
69206-30120B1

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-21020C1

AT211,CT216,ST21#

BLACK MC.,209

 1
69230-21020J0

AT211,CT216,ST21#

DK.BLUE M.M.,8L3

 1
69230-21020A1

AT211,CT216,ST21#

SU. WHITE PM.,051

 1
69230-21020B0

AT211,CT216,ST21#

SILVER ME,199

 1
69230-21020A0

AT211,CT216,ST21#

SUPER WHITE 2,040

 1
69230-21020B1

AT211,CT216,ST21#

SILVER ME.,1C0

 1
69230-21020J1

AT211,CT216,ST21#

DK.BLUE MC.,8P4

 1
69230-21020D0

AT211,CT216,ST21#

RED MC.,3M8

 1
69230-21020G0

AT211,CT216,ST21#

DK.MOSS GREEN MM,2DQ

 1
69230-21020D0

AT211,CT216,ST21#

RED MC.,2DP

 1
69230-21020C0

AT211,CT216,ST21#

BLACK ME,2DB

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-04018

AT211,CT216,ST21#

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-21020D0

AT211,CT216,ST21#

RED MC.,2DP

 1
69240-21020C0

AT211,CT216,ST21#

BLACK ME,2DB

 1
69240-21020G0

AT211,CT216,ST21#

DK.MOSS GREEN MM,2DQ

 1
69240-21020B0

AT211,CT216,ST21#

SILVER ME,199

 1
69240-21020J0

AT211,CT216,ST21#

DK.BLUE M.M.,8L3

 1
69240-21020J1

AT211,CT216,ST21#

DK.BLUE MC.,8P4

 1
69240-21020A0

AT211,CT216,ST21#

SUPER WHITE 2,040

 1
69240-21020C1

AT211,CT216,ST21#

BLACK MC.,209

 1
69240-21020D0

AT211,CT216,ST21#

RED MC.,3M8

 1
69240-21020B1

AT211,CT216,ST21#

SILVER ME.,1C0

 1
69240-21020A1

AT211,CT216,ST21#

SU. WHITE PM.,051

 1
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-30150B1

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
69277-22090C0

AT211,CT216,ST21#

BLACK,TRIM2#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-30080B1

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
69278-22050C0

AT211,CT216,ST21#

BLACK,TRIM2#

 1
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-30040B1

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
69283-30040C0

AT211,CT216,ST21#

BLACK,TRIM2#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-30040B1

AT211,CT216,ST21#

SHADOW GRAY,TRIM1#

 1
69284-30040C0

AT211,CT216,ST21#

BLACK,TRIM2#

 1
69293B - SNAP, REAR DOOR OUTSIDE HANDLE
69293-12030

AT211,CT216,ST21#

 2
69315B - RETAINER, REAR DOOR LOCK SOLENOID
69315-33030

AT211,CT216,ST21#

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-21020

AT211,CT216,ST21#

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-21020

AT211,CT216,ST21#

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001

AT211,CT216,ST21#

 2
69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-21010

AT211,CT216,ST21#

 1
69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-21010

AT211,CT216,ST21#

 1
69730A - LINK ASSY, REAR DOOR LOCK CONTROL, RH
69730-21010

AT211,CT216,ST21#

 1
69740A - LINK ASSY, REAR DOOR LOCK CONTROL, LH
69740-21010

AT211,CT216,ST21#

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32030

AT211,CT216,ST21#

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-20380

AT211,CT216,ST21#

ﾌﾞﾗｯｸ

 2
69759-24030

AT211,CT216,ST21#

ﾚｯﾄﾞ

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-20380

AT211,CT216,ST21#

ﾌﾞﾗｯｸ

 2
69759-24030

AT211,CT216,ST21#

ﾚｯﾄﾞ

 2
Common parts
90119-06876
90148-60022
90148-80027
90159-40202
90159-50322
90164-50031
90189-05003
90467-08117
91511-G0608
