AT211G-DWMEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

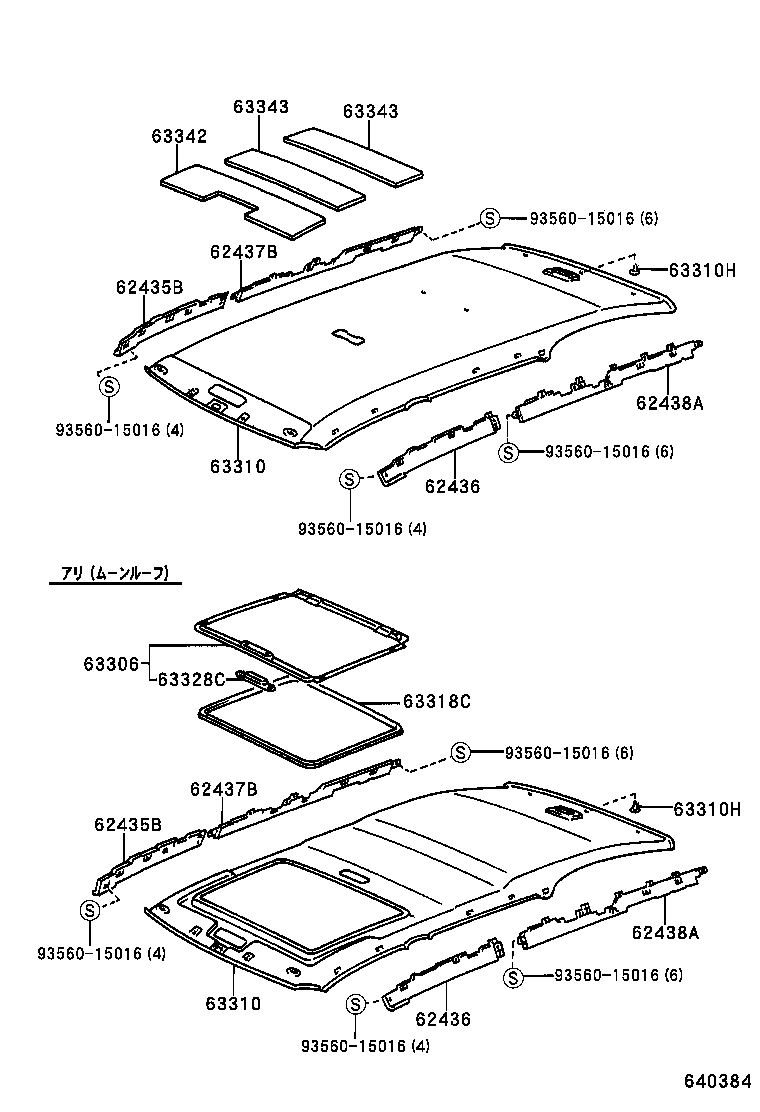

Click highlighted areas on diagram

diagram 62435B 62435B 62436 62436 62437B 62437B 62438A 62438A 63306 63310 63310 63310H 63310H 63318C 63328C 63342 63343 63343 9356015016 9356015016 9356015016 9356015016 9356015016 9356015016 9356015016 9356015016
Part # Description Qty Price
62435B - PAD, ROOF SIDE RAIL, FRONT RH
62435-21010

AT211,CT216,ST21#

 1
62435B - PAD, ROOF SIDE RAIL, FRONT RH
62435-21010

AT211,CT216,ST21#

 1
62436 - PAD, ROOF SIDE RAIL, FRONT LH
62436-21010

AT211,CT216,ST21#

 1
62436 - PAD, ROOF SIDE RAIL, FRONT LH
62436-21010

AT211,CT216,ST21#

 1
62437B - PAD, ROOF SIDE RAIL, REAR RH
62437-21010

AT211,CT216,ST21#

 1
62437B - PAD, ROOF SIDE RAIL, REAR RH
62437-21010

AT211,CT216,ST21#

 1
62438A - PAD, ROOF SIDE RAIL, REAR LH
62438-21010

AT211,CT216,ST21#

 1
62438A - PAD, ROOF SIDE RAIL, REAR LH
62438-21010

AT211,CT216,ST21#

 1
63306 - TRIM SUB-ASSY, SUNSHADE
63306-12070B2

AT211,CT216,ST21#

MEDIUM CHARCOAL,TRIM2#

 1
63306-12070B2

AT211,CT216,ST21#

MEDIUM CHARCOAL,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-21140B0

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM1#

 1
63310-21140B0

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM2#

 1
63310-21160B0

AT211,CT216,ST21#..E

MEDIUM CHARCOAL,TRIM2#

 1
63310-21160B0

AT211,CT216,ST21#..E

MEDIUM CHARCOAL,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-21140B0

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM1#

 1
63310-21140B0

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM2#

 1
63310-21160B0

AT211,CT216,ST21#..E

MEDIUM CHARCOAL,TRIM2#

 1
63310-21160B0

AT211,CT216,ST21#..E

MEDIUM CHARCOAL,TRIM1#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05021B6

AT211,CT216,ST21#

MD.CHARCOAL,TRIM1#

 7
90467-06049B6

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM1#

 5
90467-05021B6

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM1#

 5
90467-06049B6

AT211,CT216,ST21#

MD.CHARCOAL,TRIM2#

 7
90467-06049B6

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM2#

 5
90467-06049B6

AT211,CT216,ST21#

MD.CHARCOAL,TRIM1#

 7
63310H - CLIP(FOR ROOF HEADLINING)
90467-05021B6

AT211,CT216,ST21#

MD.CHARCOAL,TRIM1#

 7
90467-06049B6

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM1#

 5
90467-05021B6

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM1#

 5
90467-06049B6

AT211,CT216,ST21#

MD.CHARCOAL,TRIM2#

 7
90467-06049B6

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM2#

 5
90467-06049B6

AT211,CT216,ST21#

MD.CHARCOAL,TRIM1#

 7
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-21020B0

AT211,CT216,ST21#

長さ=2185,MEDIUM CHARCOAL,TRIM1#

 1
63318-21020B0

AT211,CT216,ST21#

長さ=2185,MEDIUM CHARCOAL,TRIM2#

 1
63328C - KNOB, SUNSHADE TRIM
63328-12030B4

AT211,CT216,ST21#

MD.CHARCOAL,TRIM2#

 1
63328-12030B4

AT211,CT216,ST21#

MD.CHARCOAL,TRIM1#

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-21021

AT211,CT216,ST21#

 1
63342-21020

AT211,CT216,ST21#

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-32070

AT211,CT216,ST21#

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-32070

AT211,CT216,ST21#

 2
Common parts
93560-15016

(9708- )G,GT,GTT

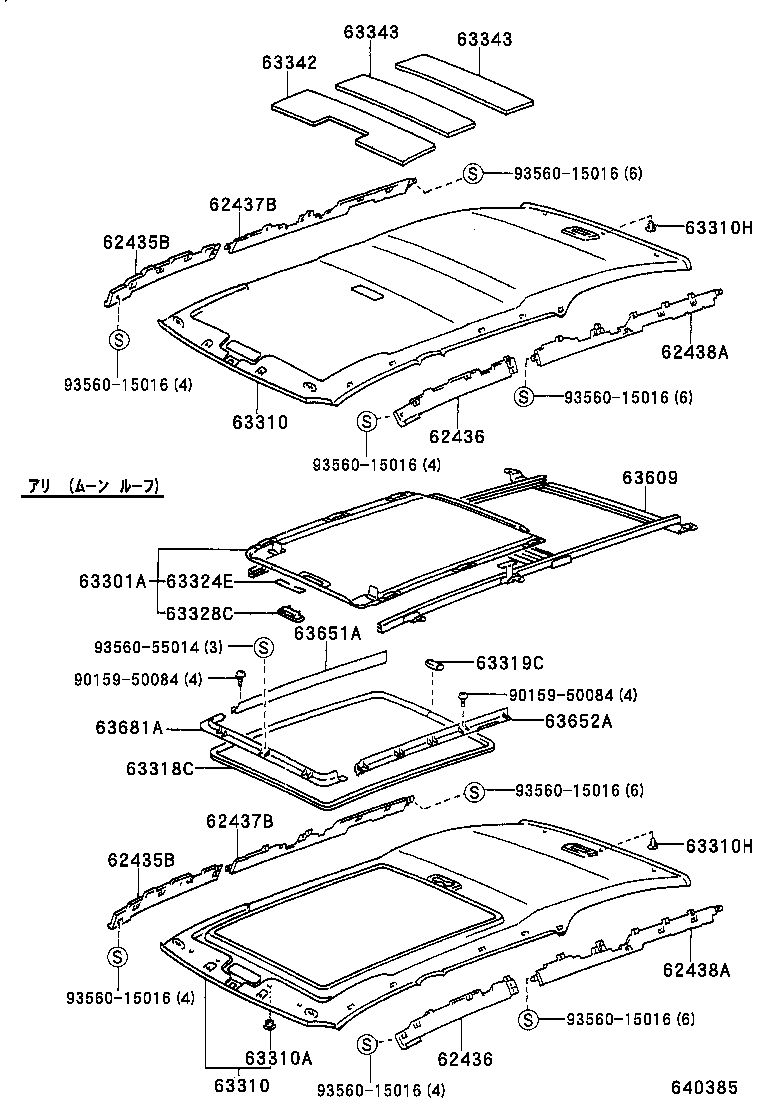

Click highlighted areas on diagram

ｴｱﾘｱﾙ

diagram 62435B 62435B 62436 62436 62437B 62437B 62438A 62438A 63301A 63310 63310 63310A 63310H 63310H 63318C 63319C 63324E 63328C 63342 63343 63343 63609 63651A 63652A 63681A 9015950084 9015950084 9356015016 9356015016 9356015016 9356015016 9356015016 9356015016 9356015016 9356015016 9356055014
Part # Description Qty Price
62435B - PAD, ROOF SIDE RAIL, FRONT RH
62435-21010

AT211,CT216,ST21#

 1
62435B - PAD, ROOF SIDE RAIL, FRONT RH
62435-21010

AT211,CT216,ST21#

 1
62436 - PAD, ROOF SIDE RAIL, FRONT LH
62436-21010

AT211,CT216,ST21#

 1
62436 - PAD, ROOF SIDE RAIL, FRONT LH
62436-21010

AT211,CT216,ST21#

 1
62437B - PAD, ROOF SIDE RAIL, REAR RH
62437-21010

AT211,CT216,ST21#

 1
62437B - PAD, ROOF SIDE RAIL, REAR RH
62437-21010

AT211,CT216,ST21#

 1
62438A - PAD, ROOF SIDE RAIL, REAR LH
62438-21010

AT211,CT216,ST21#

 1
62438A - PAD, ROOF SIDE RAIL, REAR LH
62438-21010

AT211,CT216,ST21#

 1
63310 - HEADLINING ASSY, ROOF
63310-21140B0

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM1#

 1
63310-21140B0

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM2#

 1
63310-21160B0

AT211,CT216,ST21#..E

MEDIUM CHARCOAL,TRIM2#

 1
63310-21160B0

AT211,CT216,ST21#..E

MEDIUM CHARCOAL,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-21140B0

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM1#

 1
63310-21140B0

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM2#

 1
63310-21160B0

AT211,CT216,ST21#..E

MEDIUM CHARCOAL,TRIM2#

 1
63310-21160B0

AT211,CT216,ST21#..E

MEDIUM CHARCOAL,TRIM1#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05021B6

AT211,CT216,ST21#

MD.CHARCOAL,TRIM1#

 7
90467-06049B6

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM1#

 5
90467-05021B6

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM1#

 5
90467-06049B6

AT211,CT216,ST21#

MD.CHARCOAL,TRIM2#

 7
90467-06049B6

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM2#

 5
90467-06049B6

AT211,CT216,ST21#

MD.CHARCOAL,TRIM1#

 7
63310H - CLIP(FOR ROOF HEADLINING)
90467-05021B6

AT211,CT216,ST21#

MD.CHARCOAL,TRIM1#

 7
90467-06049B6

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM1#

 5
90467-05021B6

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM1#

 5
90467-06049B6

AT211,CT216,ST21#

MD.CHARCOAL,TRIM2#

 7
90467-06049B6

AT211,CT216,ST21#

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM2#

 5
90467-06049B6

AT211,CT216,ST21#

MD.CHARCOAL,TRIM1#

 7
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-21020B0

AT211,CT216,ST21#

長さ=2185,MEDIUM CHARCOAL,TRIM1#

 1
63318-21020B0

AT211,CT216,ST21#

長さ=2185,MEDIUM CHARCOAL,TRIM2#

 1
63328C - KNOB, SUNSHADE TRIM
63328-12030B4

AT211,CT216,ST21#

MD.CHARCOAL,TRIM2#

 1
63328-12030B4

AT211,CT216,ST21#

MD.CHARCOAL,TRIM1#

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-21021

AT211,CT216,ST21#

 1
63342-21020

AT211,CT216,ST21#

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-32070

AT211,CT216,ST21#

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-32070

AT211,CT216,ST21#

 2
Common parts
90159-50084
93560-15016
93560-55014
