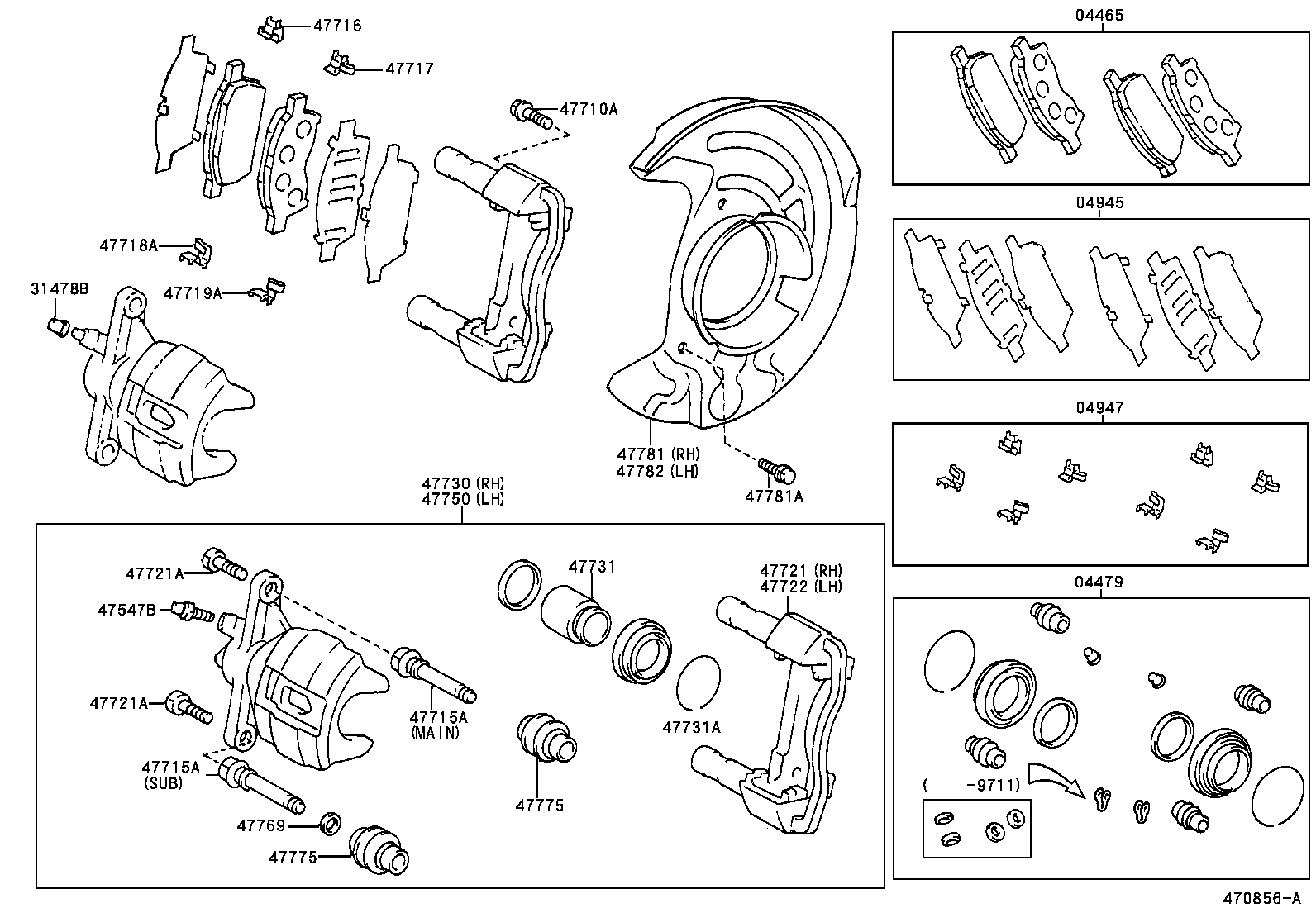

AT211G-DWMEK (1997)
Toyota Caldina
(9708- )E,G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-20130 |
AT211,CT216,ST21#..E,G ﾏｰｸ AISIN PC513 |
1 | ||
| 04465-20490 |
AT211,CT216,ST21#..E,G ﾏｰｸ NBK PN540H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-20300 |
AT211,CT216,ST21#..E,G PNC 47313P = ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 04479-20250 |
AT211,CT216,ST21#..E,G PNC 47313P = ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-32170 |
AT211,CT216,ST21#..E,G |
1 | ||
| 04945-47010 |
AT211,CT216,ST21#..E,G |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-33100 |
AT211,CT216,ST21# |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
AT211,CT216,ST21# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
AT211,CT216,ST21# |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12131 |
AT211,CT216,ST21# *12−1.25PX25.5−23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-22070 |
AT211,CT216,ST21# ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715-22080 |
AT211,CT216,ST21# ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47715-50030 |
AT211,CT216,ST21#..E,G ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47715-50010 |
AT211,CT216,ST21#..E,G ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-22070 |
AT211,CT216,ST21# ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47715-22080 |
AT211,CT216,ST21# ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47715-50030 |
AT211,CT216,ST21#..E,G ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47715-50010 |
AT211,CT216,ST21#..E,G ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-33050 |
AT211,CT216,ST21# |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47716-33060 |
AT211,CT216,ST21# |
2 | ||
| 47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47717-20150 |
AT211,CT216,ST21# |
2 | ||
| 47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47717-20160 |
AT211,CT216,ST21# |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-20371 |
AT211,CT216,ST21#..E,G |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
AT211,CT216,ST21# *8−1.00PX23−15 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
AT211,CT216,ST21# *8−1.00PX23−15 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-20081 |
AT211,CT216,ST21#..E,G |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-20481 |
AT211,CT216,ST21#..E,G |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-20190 |
AT211,CT216,ST21#..E,G |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-66001 |
AT211,CT216,ST21#..E,G |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-20481 |
AT211,CT216,ST21#..E,G |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
AT211,CT216,ST21# |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-20080 |
AT211,CT216,ST21#..E,G |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-20080 |
AT211,CT216,ST21#..E,G |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-20280 |
AT211,CT216,ST21#..E,G |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90109-06134 |
AT211,CT216,ST21#..E,G,GT |
6 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-20280 |
AT211,CT216,ST21#..E,G |
1 | ||
