AT211G-DWMEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )AT211,ST21#

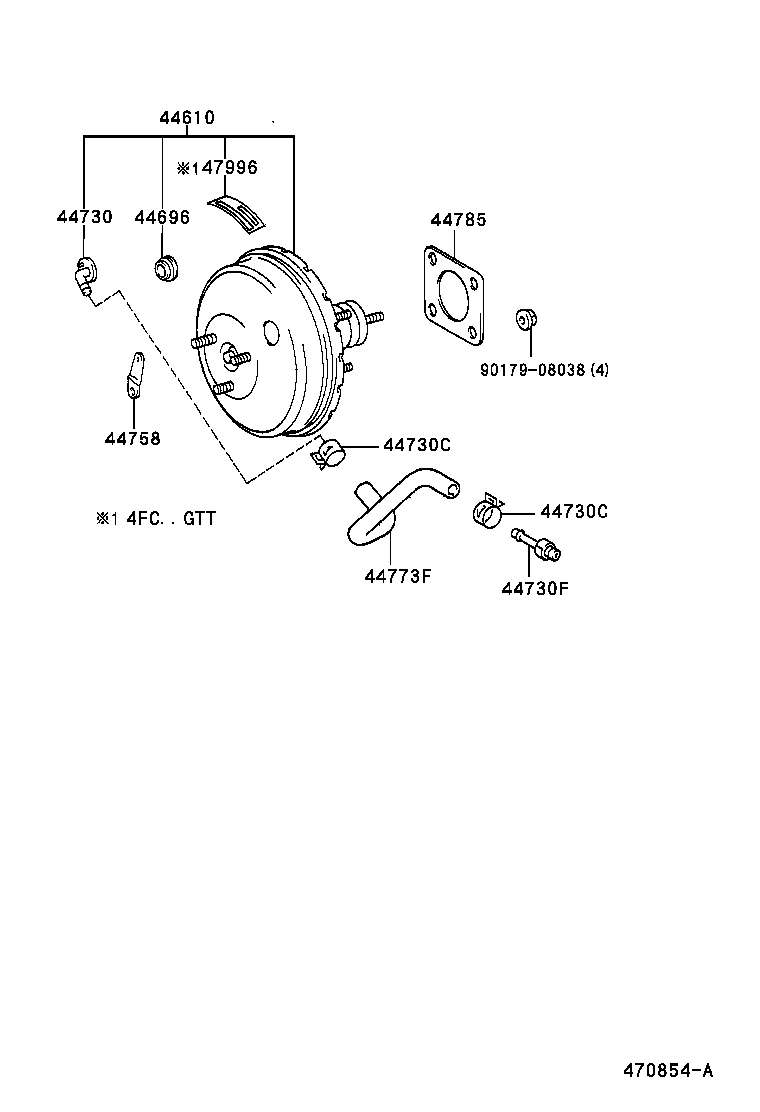

Click highlighted areas on diagram

diagram 44610 44696 44730 44730C 44730C 44730F 44758 44773F 44785 47996 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-21070

AT211

 1
44696 - GROMMET, CHECK VALVE
90480-24439

AT211

AISIN

 1
90480-24517

AT211

JKC

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14050

AT211

AISIN

 1
44730-28010

AT211

JKC

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT211,CT216,ST21#

 2
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT211,CT216,ST21#

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

AT211,ST21#..E,G

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20290

AT211;ST21#..GT

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-20810

AT211

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

AT211,CT216,ST21#

 1
Common parts
90179-08038
