AT211G-DWMEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )E,G,GT ; (9708- )5F..GTT

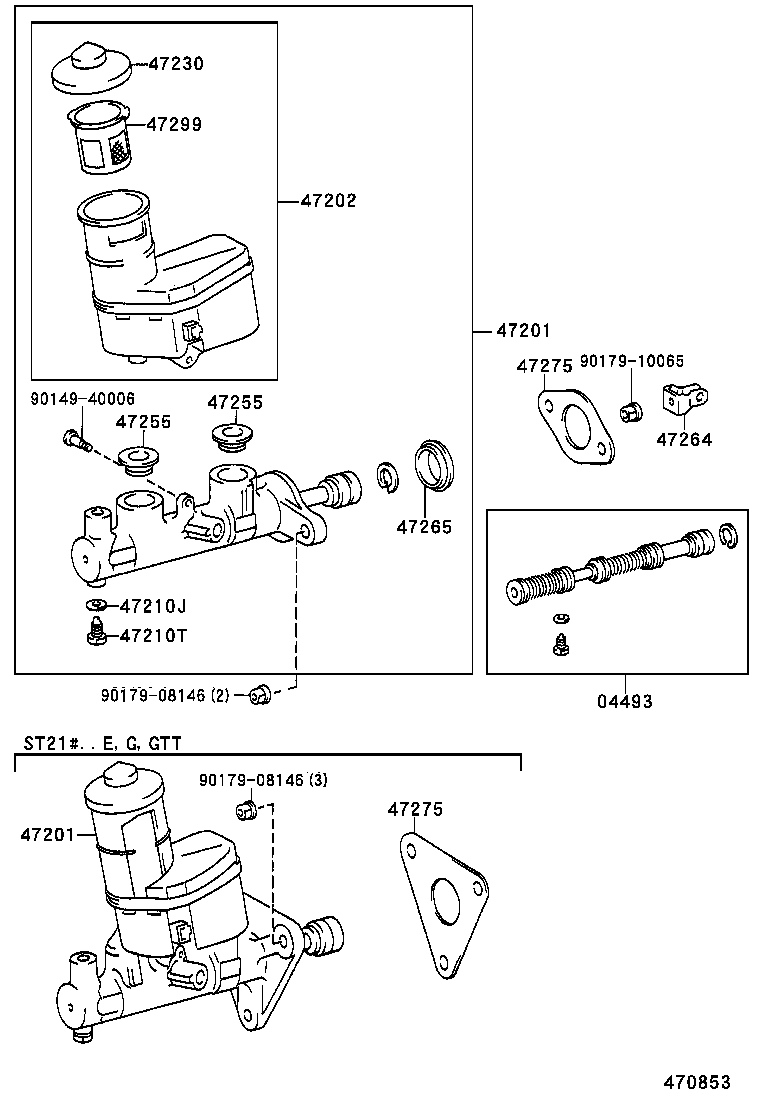

Click highlighted areas on diagram

diagram 04493 47201 47201 47202 47210J 47210T 47230 47255 47255 47264 47265 47275 47275 47299 9014940006 9017908146 9017908146 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-2B010

ST215..5F..GTT;AT211,CT216,ST21#..E,G,GT

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-2B130

ST21#..GT;AT211,CT216

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-2B130

ST21#..GT;AT211,CT216

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-20170

ST21#..GT;AT211,CT216

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

AT211,CT216,ST21#

 1
90430-06104

ST215..5F..GTT;AT211,CT216,ST21#..E,G,GT

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

AT211,CT216,ST21#

 1
90109-06077

ST215..5F..GTT;AT211,CT216,ST21#..E,G,GT

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-12040

AT211,CT216,ST21#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

AT211,CT216,ST21#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

AT211,CT216,ST21#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-20060

AT211,CT216,ST21#

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

AT211,CT216,ST21#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020

ST21#..GT;AT211,CT216

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020

ST21#..GT;AT211,CT216

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010

AT211,CT216,ST21#

 1
Common parts
90149-40006
90179-08146
90179-10065
