AT211G-DWMEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

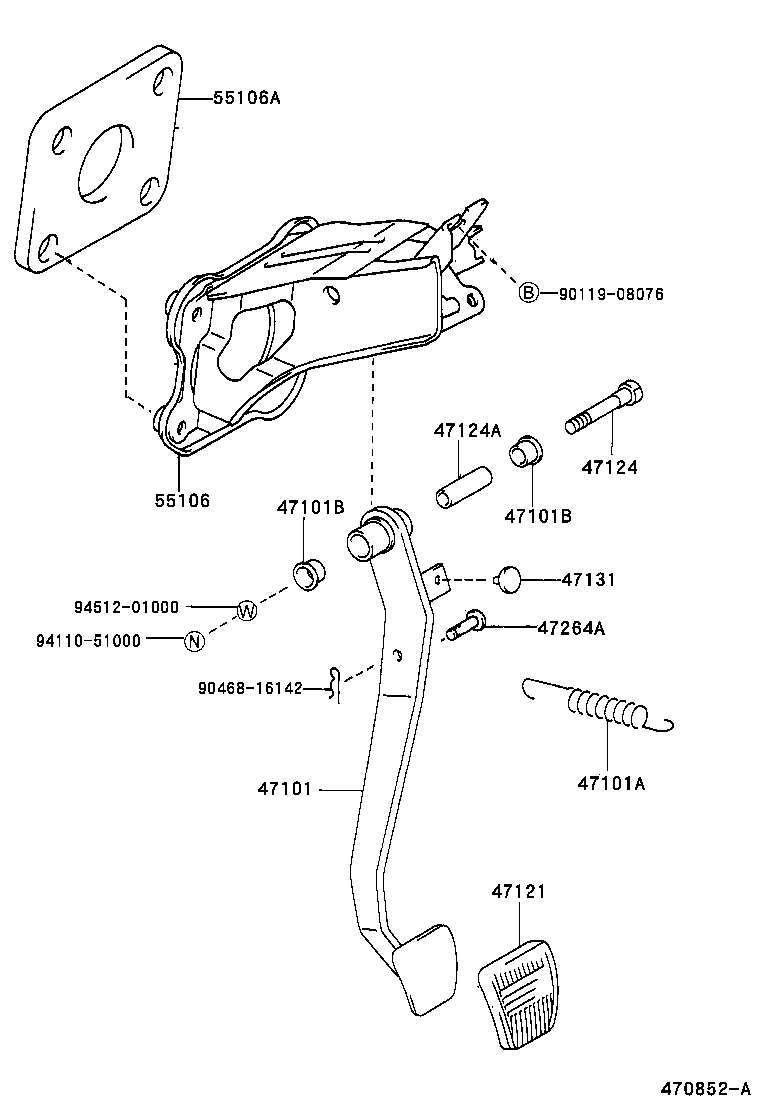

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 55106A 9011908076 9046816142 9411051000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-21010

AT211,ST215..5F

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90905-07002

AT211,CT216,ST21#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

AT211,CT216,ST21#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

AT211,CT216,ST21#

 2
47121 - PAD, BRAKE PEDAL
31321-14020

AT211,ST215..5F

 1
47124 - SHAFT, BRAKE PEDAL
90101-10015

AT211,CT216,ST21#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

AT211,CT216,ST21#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

AT211,CT216,ST21#

 1
47264A - PIN(FOR PUSH ROD)
47148-12050

AT211,CT216,ST21#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-21010

AT211,CT216,ST21#

 1
55106A - SEAL, DASH PANEL
55259-20010

AT211,CT216,ST21#

 1
Common parts
90119-08076
90468-16142
94110-51000
94512-01000
