AT211G-DWMEK (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

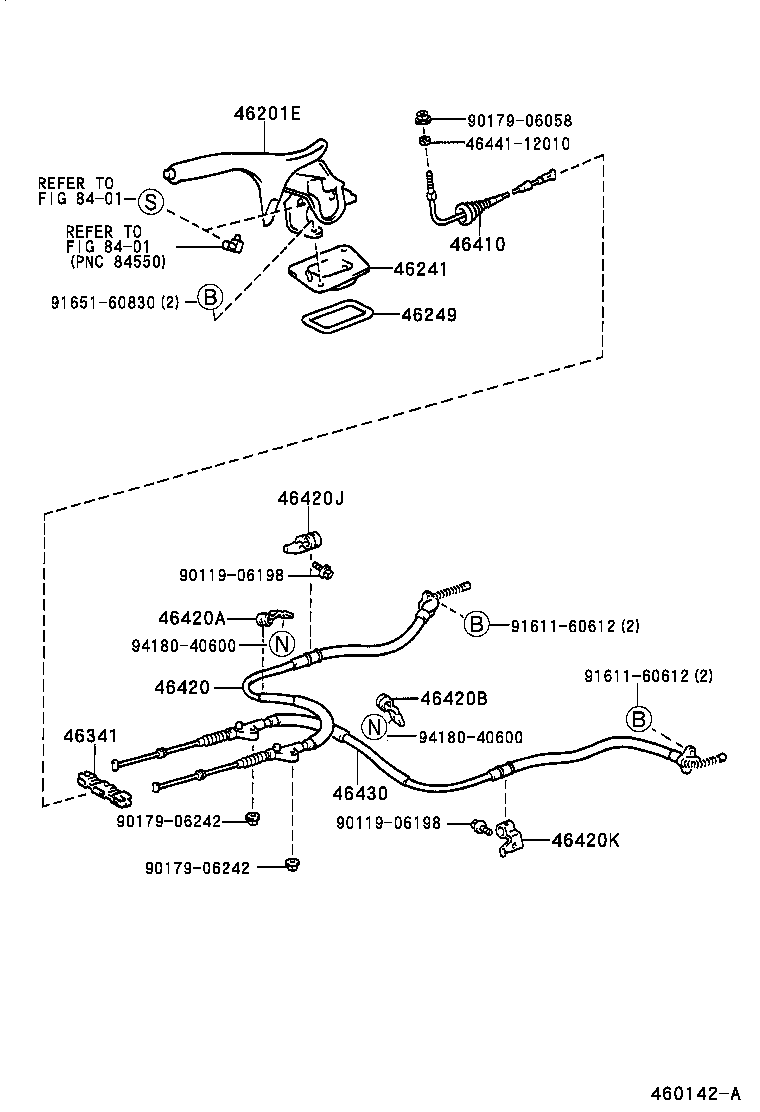

ILLUST NO. 1 OF 2(9708- )AT211,ST210

Click highlighted areas on diagram

diagram 46201E 46241 46249 46341 46410 46420 46420A 46420B 46420J 46420K 46430 4644112010 8401 8401 9011906198 9011906198 9017906058 9017906242 9017906242 9161160612 9161160612 9165160830 9418040600 9418040600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-20340C0

AT211,CT216,ST21#..E

BLACK,TRIM2#

 1
46201-20340C0

AT211,CT216,ST21#

BLACK,TRIM1#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-20170

AT211,CT216,ST21#

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-20050

AT211,CT216,ST21#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-12020

AT211,ST210

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-20430

AT211,ST210

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-20351

AT211,ST210..E,G

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01771

AT211,ST210

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01772

AT211,ST210

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46451-20020

AT211,ST210

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46451-20030

AT211,ST210

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-20361

AT211,ST210..E,G

 1
Common parts
46441-12010
90119-06198
90179-06058
90179-06242
91611-60612
91651-60830
94180-40600
Linked diagrams
8401
