AT191G-DWPEK (1996)

Toyota Caldina

Production Jan 1996 - Aug 1997
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

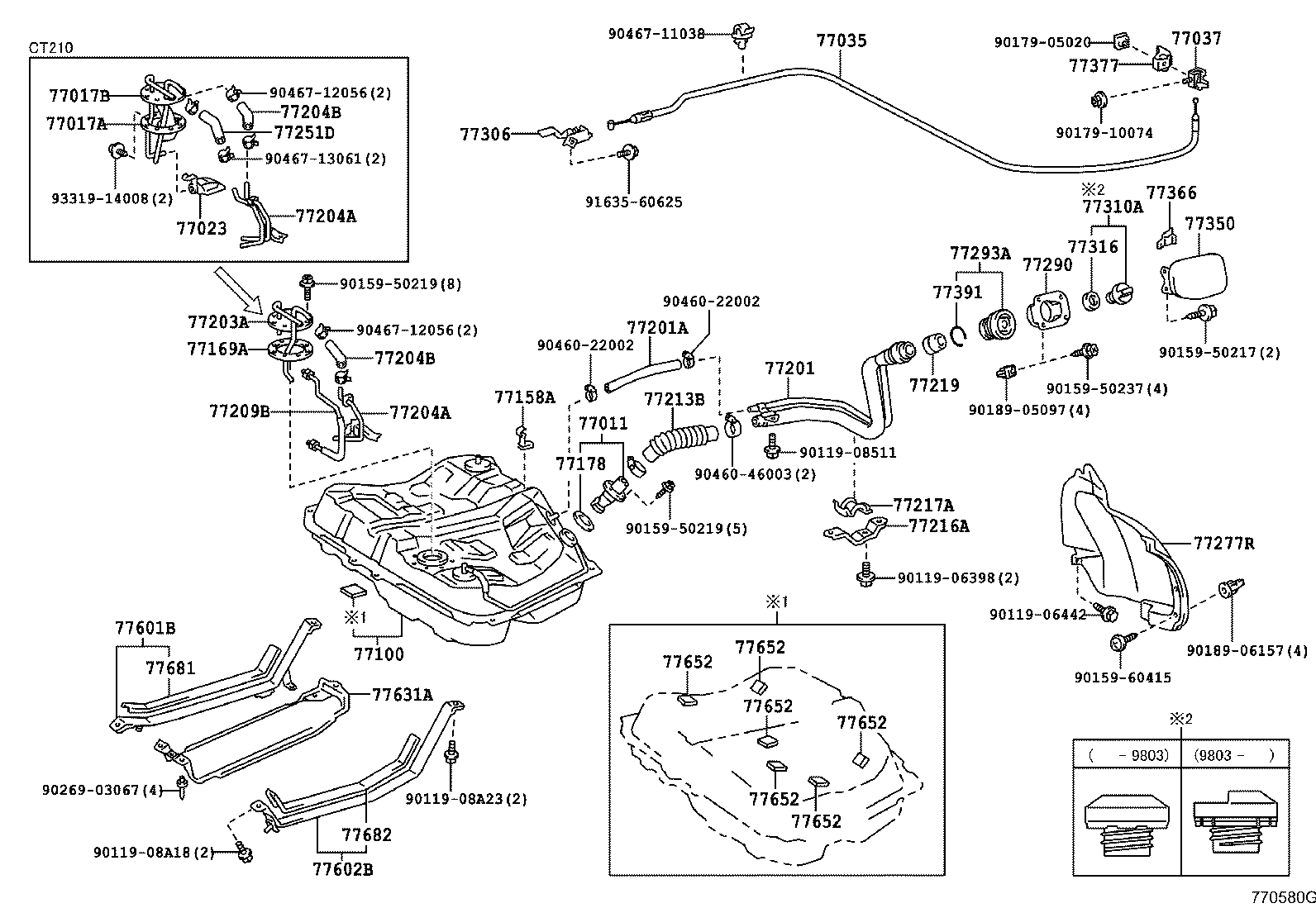

ILLUST NO. 1 OF 2(9601- )AT191,CT190,ST191

Click highlighted areas on diagram

diagram 77011 77017A 77017B 77023 77035 77037 77100 77158A 77169A 77178 77201 77201A 77203A 77204A 77204A 77204B 77204B 77209B 77213B 77216A 77217A 77219 77251D 77277R 77290 77293A 77306 77310A 77316 77350 77366 77377 77391 77601B 77602B 77631A 77652 77652 77652 77652 77652 77652 77681 77682 9011906398 9011906442 9011908511 9011908A18 9011908A23 9015950217 9015950219 9015950219 9015950237 9015960415 9017905020 9017910074 9018905097 9018906157 9026903067 9046022002 9046022002 9046046003 9046711038 9046712056 9046712056 9046713061 9163560625 9331914008
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-20100

AT191,CT190,ST191

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-21030

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-20070

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
77100 - TANK ASSY, FUEL
77001-29295

CT190,ST190,191

 1
77001-20740

AT191,CT190,ST191

 1
77158A - SUPPORT, TANK SUCTION TUBE
77158-20020

AT191,CT190,ST191

 2
77169A - GASKET, FUEL SUCTION TUBE SET
77169-20050

AT191,ST191

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030

AT191,CT19#,ET196,ST19#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-20390

AT191,CT190,ST19#

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
90445-22024

CT190,ST190,191

長さ=220

 1
95313-13022

AT191,CT190,ST191

長さ=220

 1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-20150

AT191

 1
77204A - TUBE, FUEL TANK RETURN
77204-20110

AT191,ST191

ｶﾝﾚｲﾁ ｼﾖｳ

 1
77204-20090

AT191,ST191

 1
77204A - TUBE, FUEL TANK RETURN
77204-20110

AT191,ST191

ｶﾝﾚｲﾁ ｼﾖｳ

 1
77204-20090

AT191,ST191

 1
77204B - HOSE, FUEL(FOR FUEL RETURN)
95333-06020

AT191,CT190,ET196,ST191

 1
77204B - HOSE, FUEL(FOR FUEL RETURN)
95333-06020

AT191,CT190,ET196,ST191

 1
77209B - TUBE SUB-ASSY, FUEL PUMP
77209-20110

AT191,ST191

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-20150

AT191,CT190,ST191

 1
77213-18010

CT190,ST190,191

長さ=230

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-20100

CT190,ST190,191

 1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-32030

CT190,ST190,191

 1
77219 - COVER, FUEL TANK FILLER PIPE
77219-32030

AT191,CT19#,ET196,ST191,198

 2
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-21010

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
77310A - CAP ASSY, FUEL TANK
77310-16011

AT191,ET196,ST19#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

AT191,CT19#,ET196,ST19#

 1
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-20220

AT191,CT190,ST191

 1
77601-20090

CT190,ST190,191

 1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-20140

AT191,CT190,ST190,191

 1
77631A - PROTECTOR, FUEL TANK, LOWER CENTER
77631-20090

AT191,CT190,ST191

 1
77631-20070

CT190,ST190,191

 1
77652 - CUSHION, FUEL TANK, NO.1
77651-20090

AT191,CT190,ST191

 6
77652 - CUSHION, FUEL TANK, NO.1
77651-20090

AT191,CT190,ST191

 6
77652 - CUSHION, FUEL TANK, NO.1
77651-20090

AT191,CT190,ST191

 6
77652 - CUSHION, FUEL TANK, NO.1
77651-20090

AT191,CT190,ST191

 6
77652 - CUSHION, FUEL TANK, NO.1
77651-20090

AT191,CT190,ST191

 6
77652 - CUSHION, FUEL TANK, NO.1
77651-20090

AT191,CT190,ST191

 6
77682 - SEAT, FUEL TANK BAND, LH
77681-32040

CT190,ST190,191

 1
Common parts
90119-06398
90119-06442
90119-08511
90119-08A18
90119-08A23
90159-50217
90159-50219
90159-50237
90159-60415
90179-05020
90179-10074
90189-05097
90189-06157
90269-03067
90460-22002
90460-46003
90467-11038
90467-12056
90467-13061
91635-60625
93319-14008
