AT191G-DWMMK (1996)

Toyota Caldina

Production Jan 1996 - Aug 1997
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )AT191,CT190,ST191,195

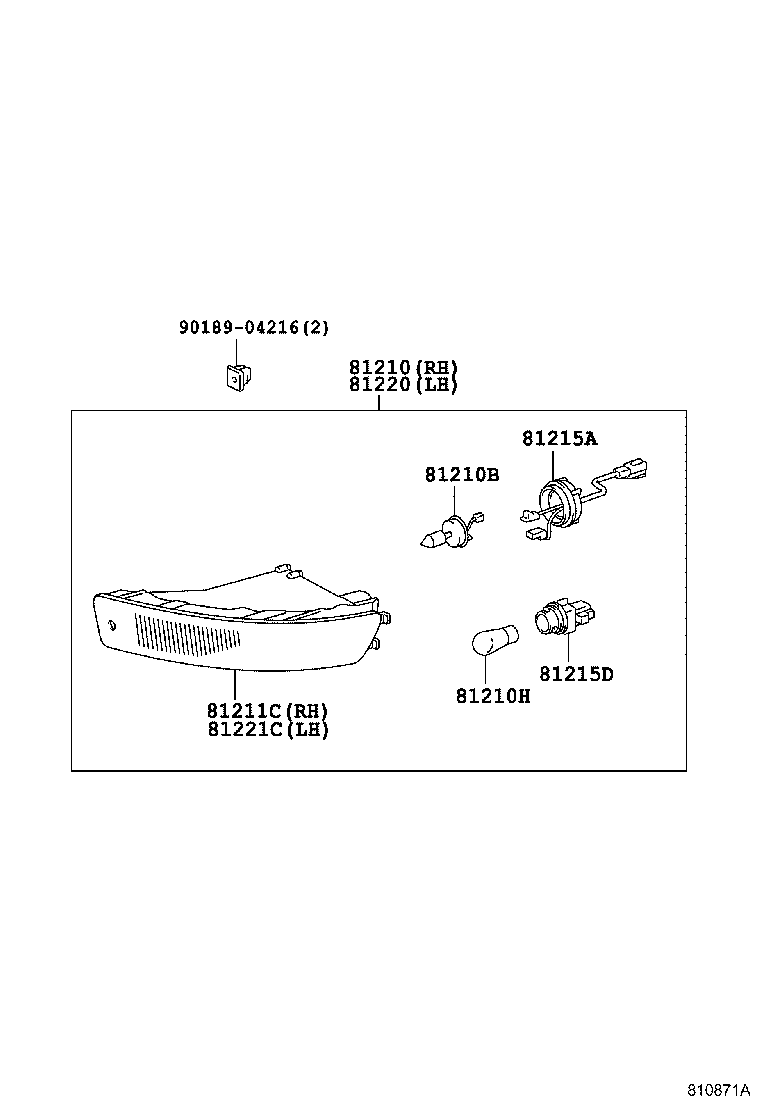

Click highlighted areas on diagram

ﾌﾛﾝﾄﾀ-ﾝｼｸﾞﾅﾙﾗﾝﾌﾟ ｲﾂﾀｲ ｼｷ

diagram 81210 81210B 81210H 81211C 81215A 81215D 81220 81221C 9018904216
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-21020

AT191,CT190,ST19#

 1
81210B - BULB, FOG LAMP
90981-13018

AT191,CT190,ST19#

12V 55W,ﾊﾛｹﾞﾝ

 2
81210H - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AT191,CT190,ST19#

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-21020

AT191,CT190,ST19#

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-21020

AT191,CT190,ST19#

 2
81215D - FOG LAMP SOCKET PLUG ASSY
90075-99078

AT191,CT190,ST19#

 2
81220 - LAMP ASSY, FOG, LH
81220-21020

AT191,CT190,ST19#

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-21020

AT191,CT190,ST19#

 1
Common parts
90189-04216
