AT191G-DWMMK (1996)

Toyota Caldina

Production Jan 1996 - Aug 1997
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9708)AT191..5F

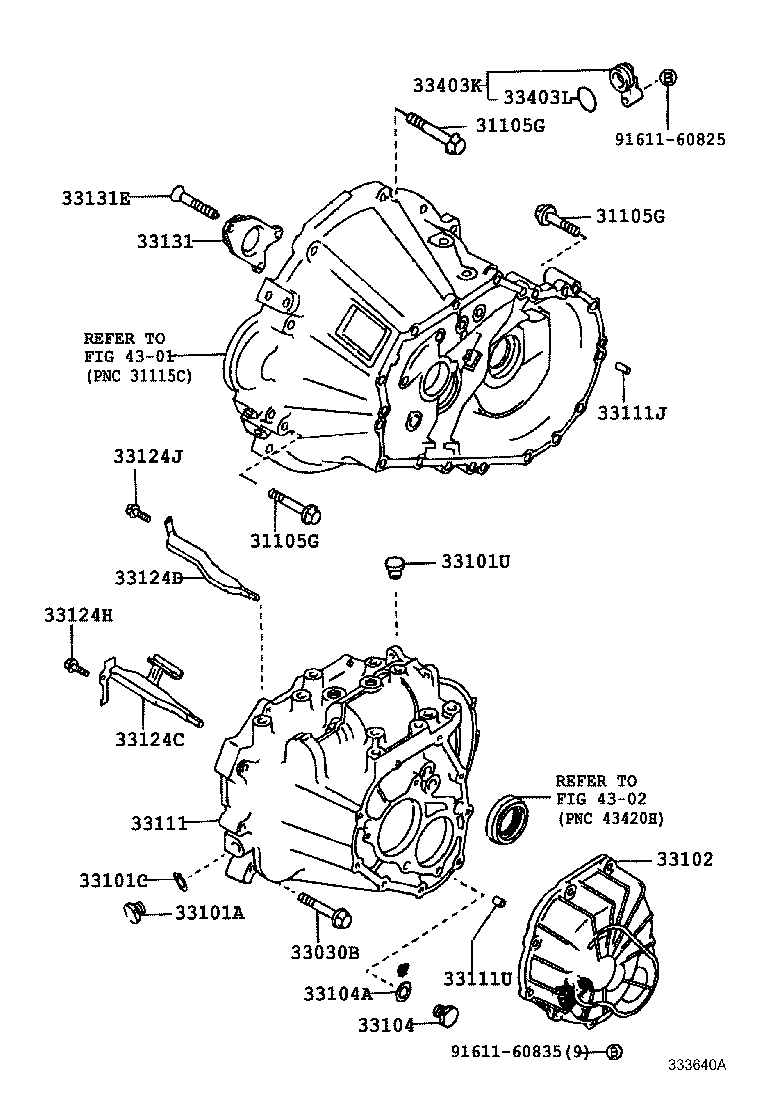

Click highlighted areas on diagram

C58

diagram 31105G 31105G 31105G 33030B 33101A 33101C 33101U 33102 33104 33104A 33111 33111J 33111U 33124C 33124D 33124H 33124J 33131 33131E 33403K 33403L 4301 4302 9161160825 9161160835
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AT191,CT19#,ST190,195..5F

*10−1.25PX43−26

 1
90119-12168

AT191..5F

*12−1.25PX55−30

 2
90119-12042

AT191..5F

*12−1.25PX75−30

 1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AT191,CT19#,ST190,195..5F

*10−1.25PX43−26

 1
90119-12168

AT191..5F

*12−1.25PX55−30

 2
90119-12042

AT191..5F

*12−1.25PX75−30

 1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AT191,CT19#,ST190,195..5F

*10−1.25PX43−26

 1
90119-12168

AT191..5F

*12−1.25PX55−30

 2
90119-12042

AT191..5F

*12−1.25PX75−30

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08086

AT191,ET196..5F

*8−1.25PX45−27.5

 3
90105-08064

AT191,ET196..5F

*8−1.25PX51−28

 13
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

AT191,CT19#,ET196,ST190,195..5F

 1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03133

AT191,CT190,196,197,ET196,ST190..5F

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12021

AT191,ET196..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

AT191,CT19#,ET196,ST190,195..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

AT191,CT19#,ET196,ST190,195..5F

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

AT191,CT198,199,ET196,ST195..5F

長さ=23,外径=8

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

AT191,ET196..5F

長さ=11,外径=11

 2
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820

AT191,ET196..5F

 1
33124J - BOLT, W/WASHER
91611-60820

AT191,ET196..5F

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-12071

AT191..5F

 1
33131-12080

AT191..5F

 1
33131E - SCREW(FOR BEARING RETAINER FRONT)
90149-60028

AT191..5F

 3
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

AT191..5F

 1
33403L - RING, O
96711-24030

AT191,ST195..5F

 1
Common parts
91611-60825
91611-60835
Linked diagrams
4301
4302
