ZYX11-AHXNB (2019)

Toyota C-Hr

Production Oct 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

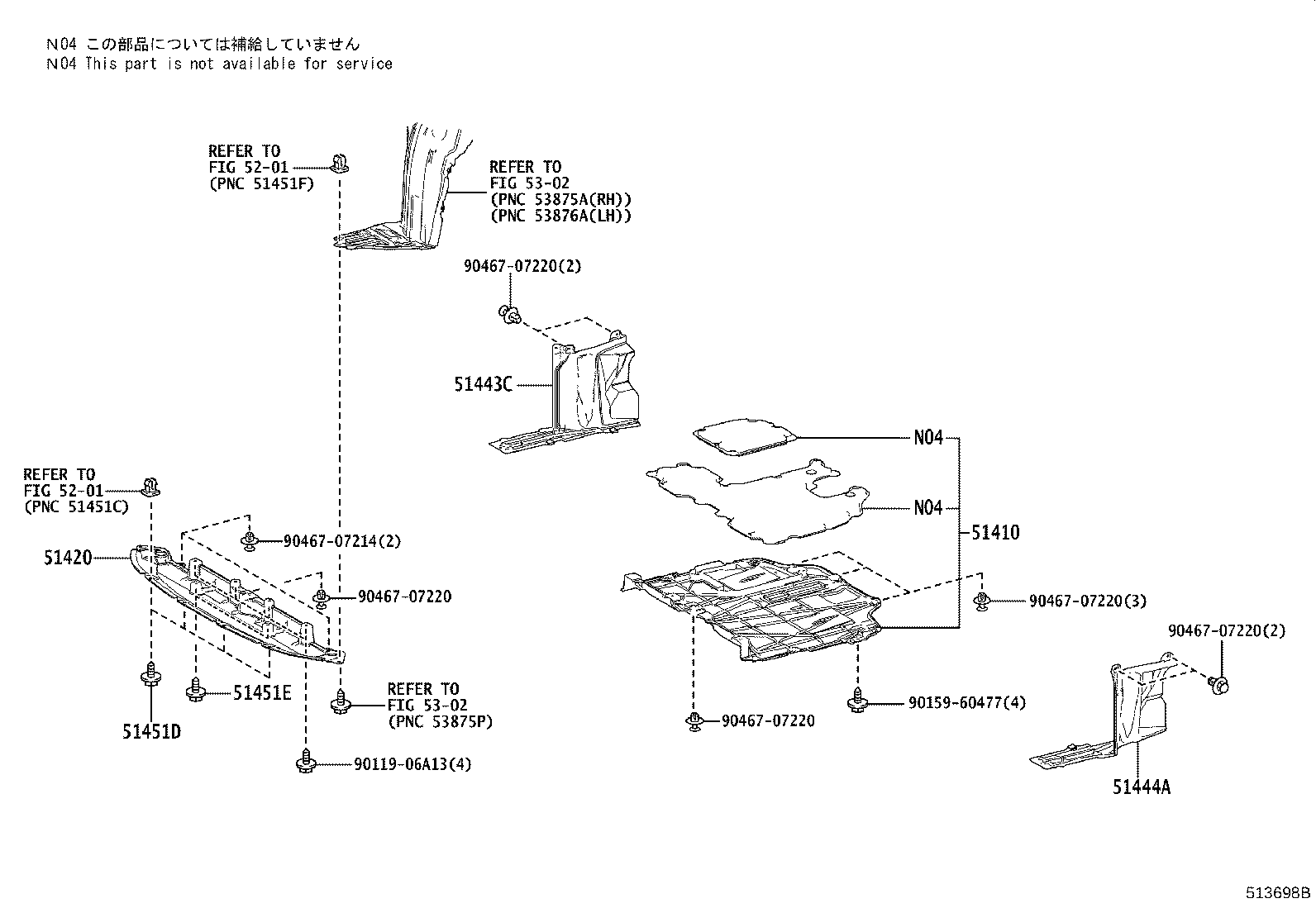

ILLUST NO. 2 OF 2(1910- )ZYX11

Click highlighted areas on diagram

diagram 51410 51420 51443C 51444A 51451D 51451E 5201 5201 5302 5302 9011906A13 9015960477 9046707214 9046707220 9046707220 9046707220 9046707220 9046707220
Part # Description Qty Price
51410 - COVER ASSY, ENGINE UNDER, NO.1
51410-10010

ZYX11

 1
51420 - COVER ASSY, ENGINE UNDER, NO.2
51420-10010

NGX10,50,ZYX11

 1
51443C - COVER, ENGINE UNDER, REAR RH
51443-10020

NGX10,50,ZYX11

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-10020

NGX10,50,ZYX11

 1
51451D - SCREW, NO.1
90159-60477

NGX10,50,ZYX11

 4
51451E - SCREW, NO.2
90159-60477

NGX10,50,ZYX11

 2
Common parts
90119-06A13
90159-60477
90467-07214
90467-07220
Linked diagrams
5201
5302
