ZYX10-AHXNB (2016)

Toyota C-Hr

Production Dec 2016 - Oct 2019
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1612- )

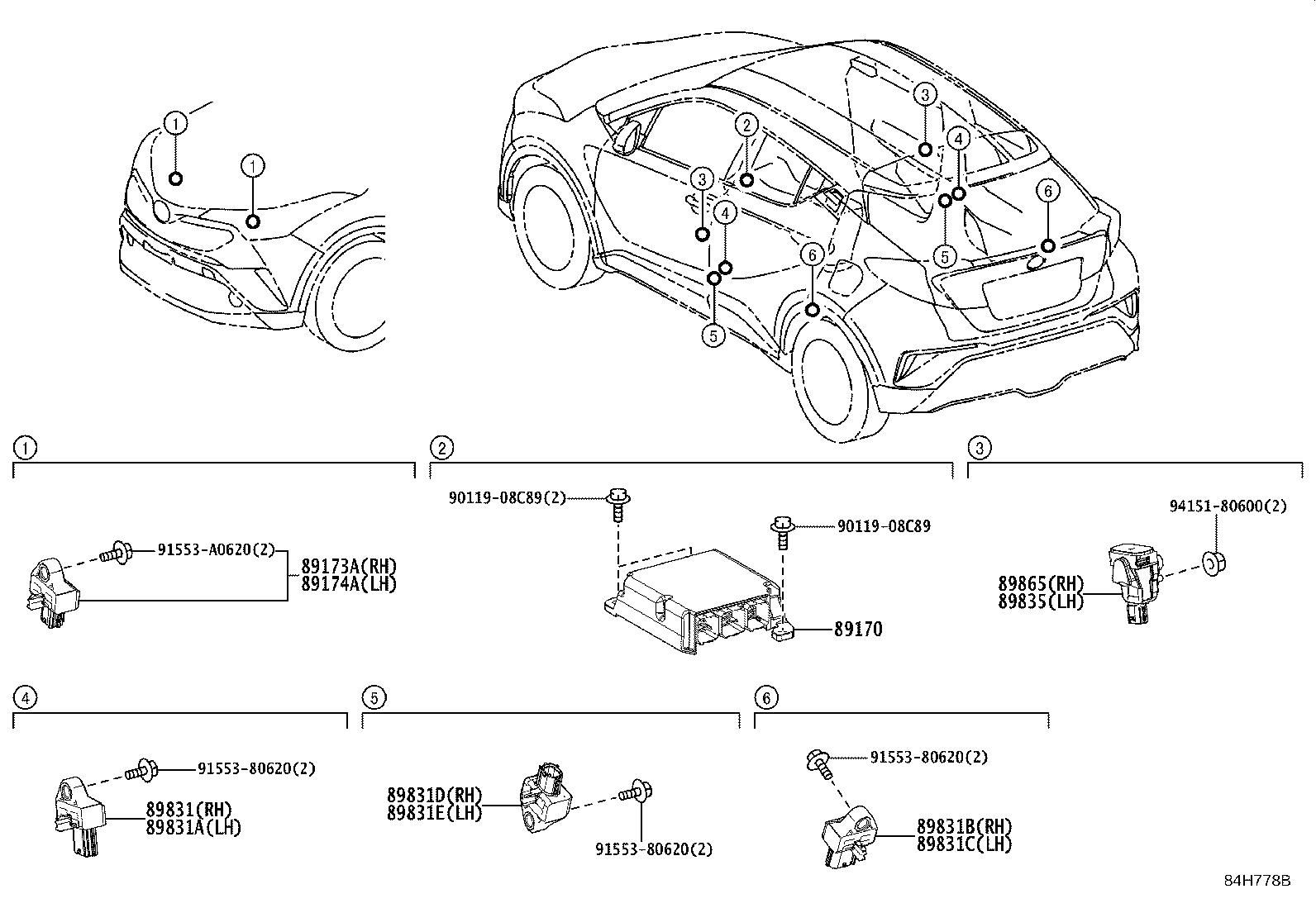

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89831 89831A 89831B 89831C 89831D 89831E 89835 89865 9011908C89 9011908C89 9155380620 9155380620 9155380620 91553A0620 9415180600
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-10070

ZYX10

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-49495

NGX10,50,ZYX10

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-49495

NGX10,50,ZYX10

 1
89831 - SENSOR, SIDE AIR BAG, RH, NO.1
89831-28030

NGX10,50,ZYX10

 1
89831A - SENSOR, SIDE AIR BAG, LH, NO.1
89831-28030

NGX10,50,ZYX10

 1
89831B - SENSOR, SIDE AIR BAG, RH, NO.2
89831-28040

NGX10,50,ZYX10

 1
89831C - SENSOR, SIDE AIR BAG, LH, NO.2
89831-28040

NGX10,50,ZYX10

 1
89831D - SENSOR, FLOOR SIDE AIR BAG, RH
89831-47050

NGX10,50,ZYX10

 1
89831E - SENSOR, FLOOR SIDE AIR BAG, LH
89831-47050

NGX10,50,ZYX10

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
8983A-47010

NGX10,50,ZYX10

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
8983A-47010

NGX10,50,ZYX10

 1
Common parts
90119-08C89
91553-80620
91553-A0620
94151-80600
