ZYX10-AHXNB (2016)
Toyota C-Hr
Production
Dec 2016
-
Oct 2019
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1612- )ZYX1#

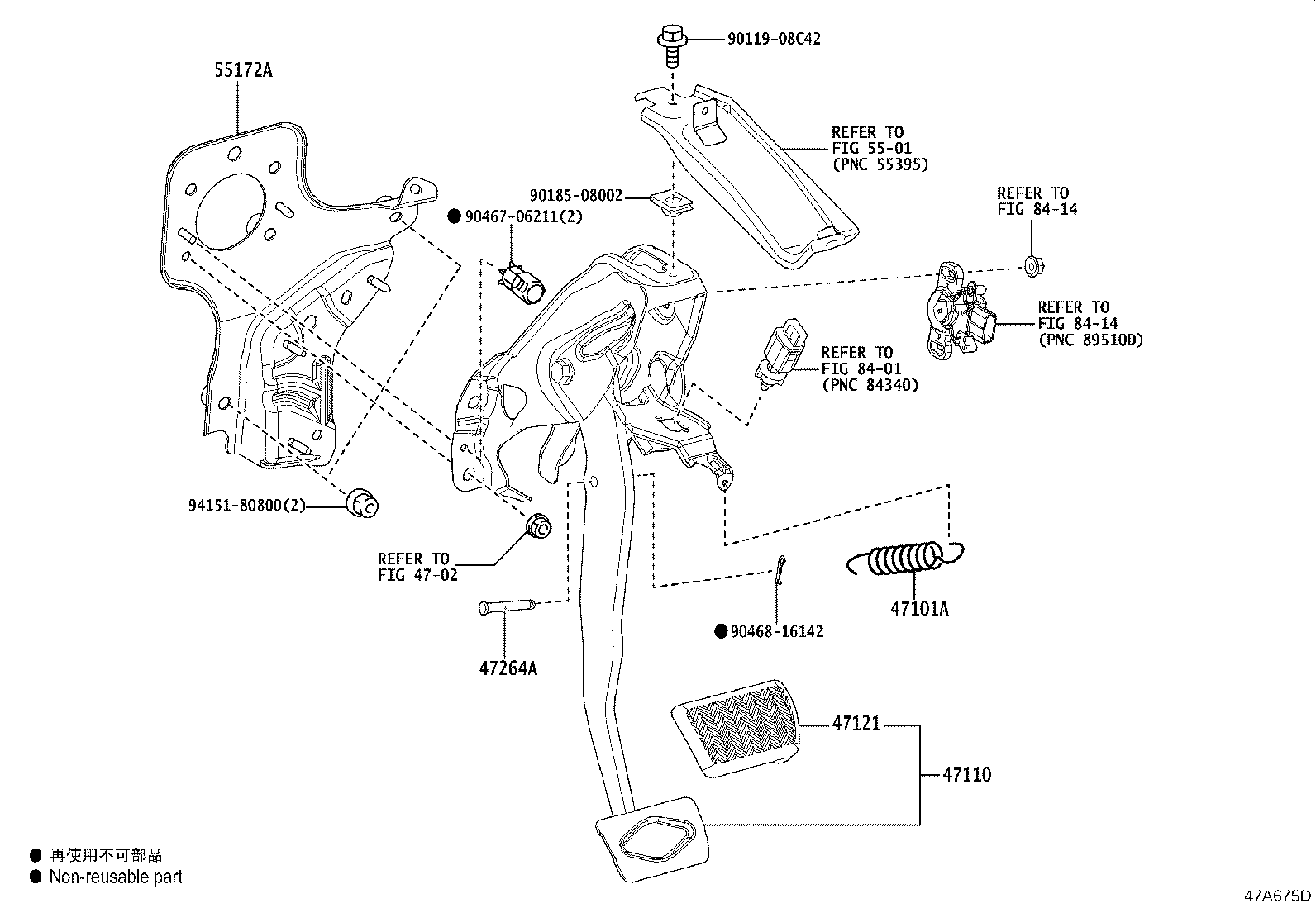

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-16030 |
ZYX10 |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-10050 |
ZYX10 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-47010 |
NGX10,50,ZYX10 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08221 |
ZYX10 |
1 | ||
| 55172A - BASE, BRAKE PEDAL SUPPORT | ||||
| 55172-10040 |
NGX10,50,ZYX10 |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90185-08002 | ||||
| 90467-06211 | ||||
| 90468-16142 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 5501 | ||||
| 8401 | ||||
| 8414 | ||||
