ZYX10-AHXEB (2016)
Toyota C-Hr
Production
Dec 2016
-
Oct 2019
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

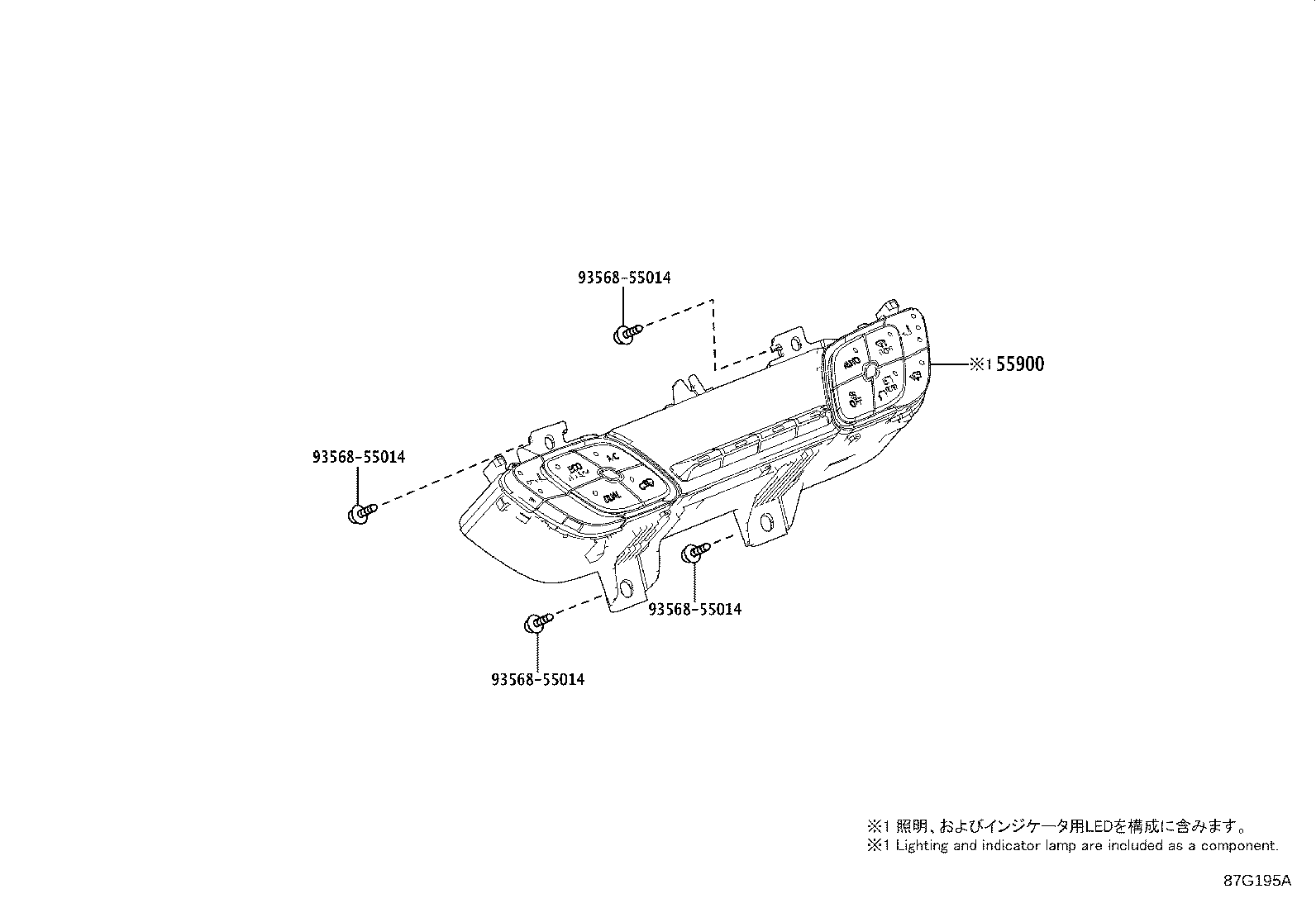

ILLUST NO. 1 OF 3(1612- )
Click highlighted areas on diagram
ﾋｰﾀｺﾝﾄﾛｰﾙﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-10440 |
NGX50,ZYX10..G,GT 寒冷地仕様 |
1 | ||
| 55900-10530 |
NGX10,50,ZYX10..G,GT 寒冷地仕様 |
1 | ||
| 55900-10460 |
NGX50,ZYX10..G,GT |
1 | ||
| 55900-10550 |
NGX10,50,ZYX10..G,GT |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||

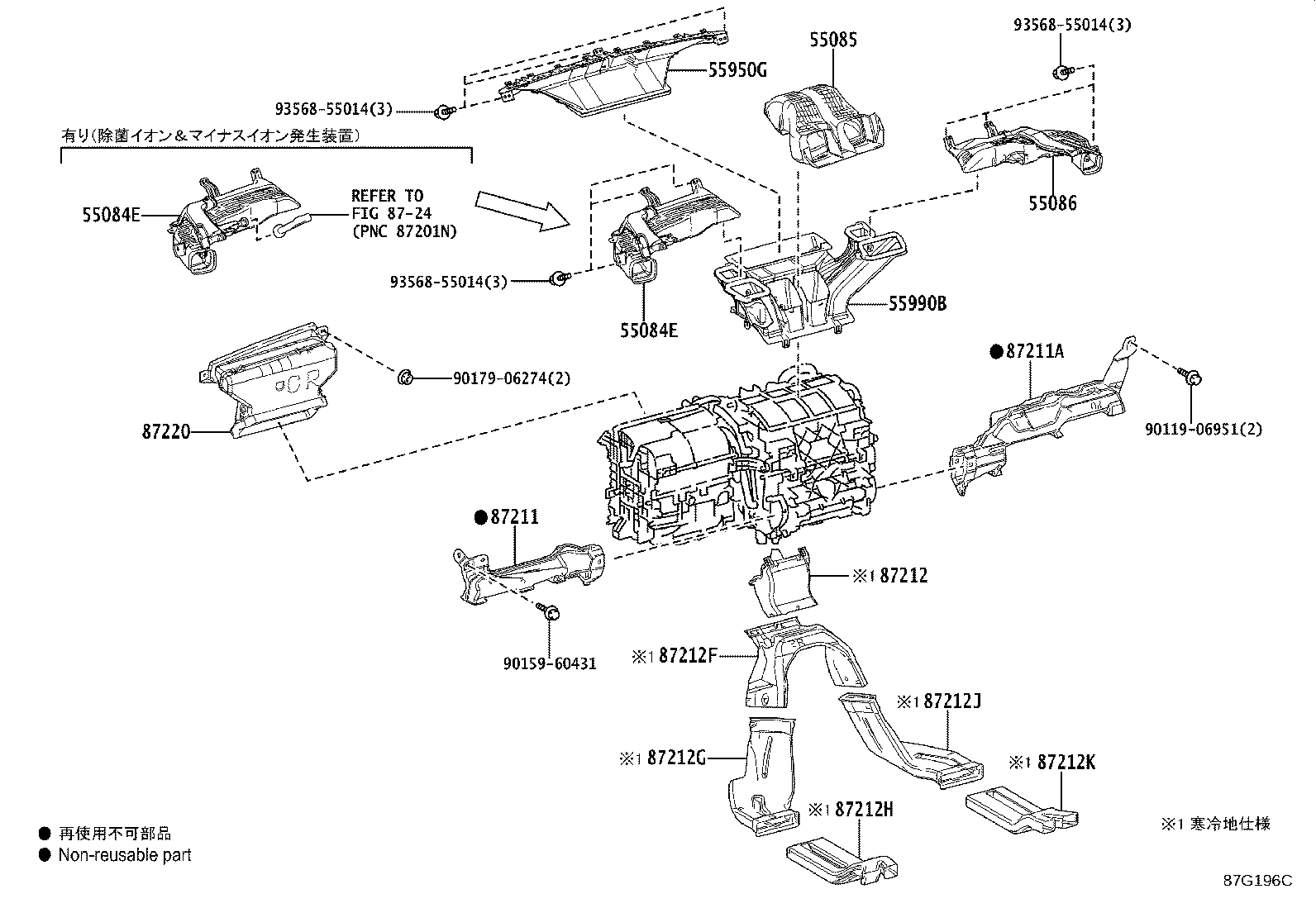

ILLUST NO. 2 OF 3(1612-1910)
Click highlighted areas on diagram
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55086-10100 |
NGX10,50,ZYX10..G,GT |
1 | ||
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55086-10100 |
NGX10,50,ZYX10..G,GT |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-10060 |
NGX10,50,ZYX10 |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55084-10030 |
NGX10,50,ZYX10 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-10070 |
NGX10,50,ZYX10 |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-10010 |
NGX10,50,ZYX10 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-47180 |
NGX10,50,ZYX10 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-10120 |
NGX10,50,ZYX10 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87413-10060 |
NGX10,50,ZYX10 寒冷地仕様 |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87215-47040 |
NGX10,50,ZYX10 寒冷地仕様 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-47050 |
NGX10,50,ZYX10 寒冷地仕様 |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87217-10060 |
NGX10,50,ZYX10 寒冷地仕様 |
1 | ||
| 87212J - DUCT, AIR, REAR NO.5 | ||||
| 87212-47040 |
NGX10,50,ZYX10 寒冷地仕様 |
1 | ||
| 87212K - DUCT, AIR, REAR NO.6 | ||||
| 87216-10010 |
NGX10,50,ZYX10 寒冷地仕様 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-10050 |
NGX10,50,ZYX10 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60431 | ||||
| 90179-06274 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8724 | ||||

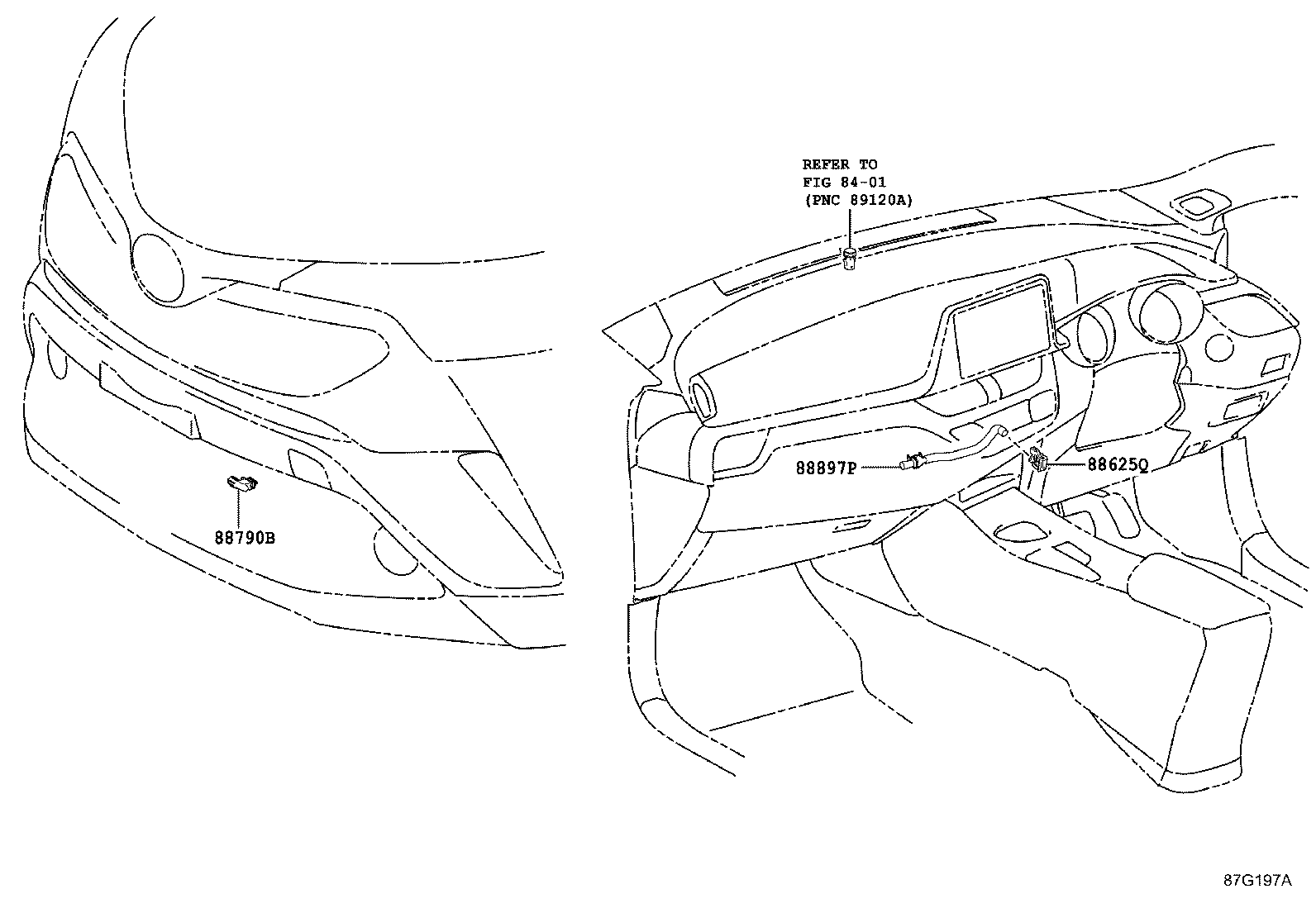

ILLUST NO. 3 OF 3(1612- )
Click highlighted areas on diagram
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
NGX10,50,ZYX10 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28100 |
NGX10,50,ZYX10 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88505-10010 |
NGX10,50,ZYX10 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
