Toyota C-hr ZYX10 MIRROR - JDM Part Detective

ZYX10-AHXEB (2016)

Toyota C-Hr

Production Dec 2016 - Oct 2019

Engine 2ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

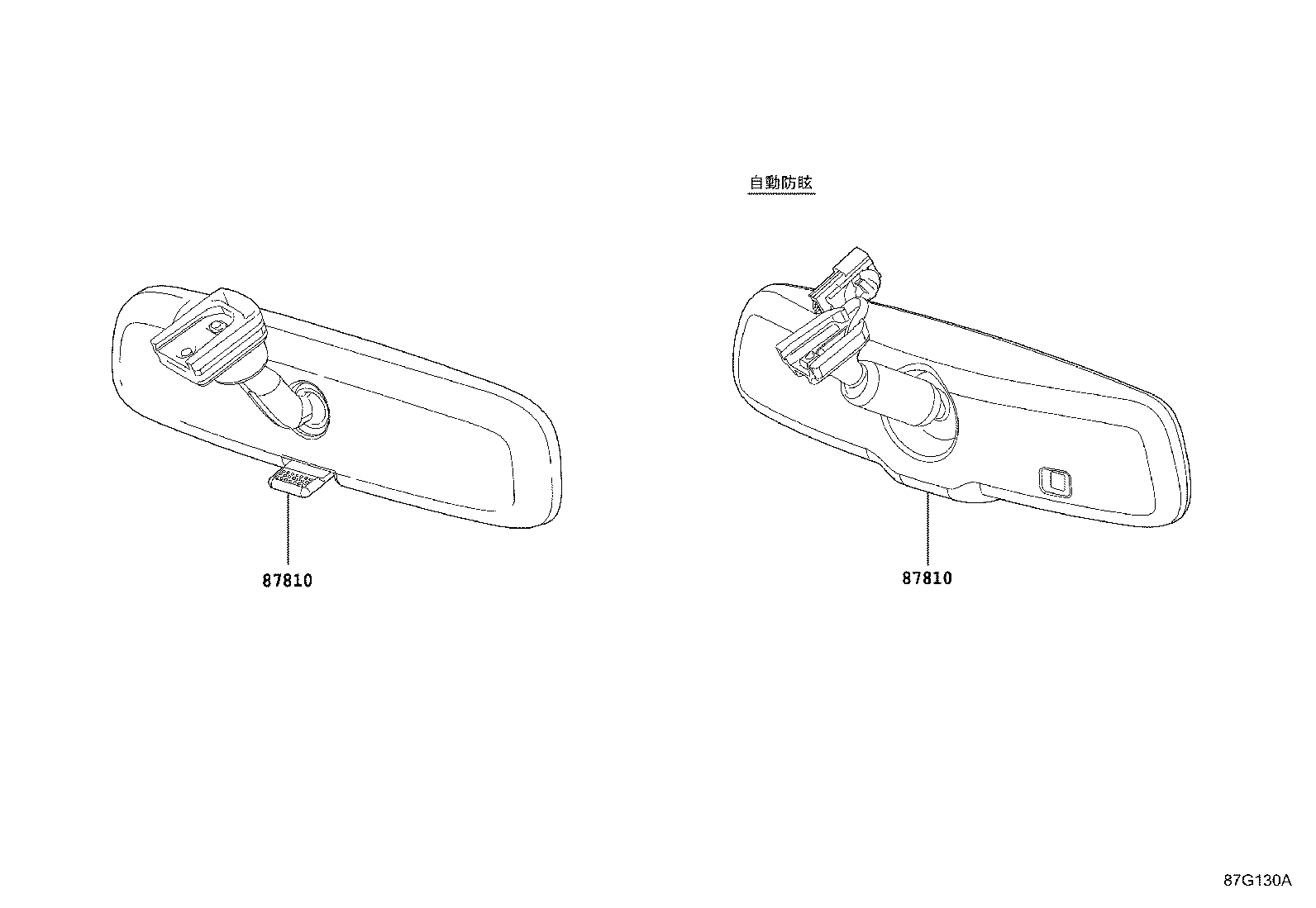

ｲﾝﾅﾘﾔﾋﾞｭｰﾐﾗｰ

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0WQ50	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0WQ50	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1

Click highlighted areas on diagram

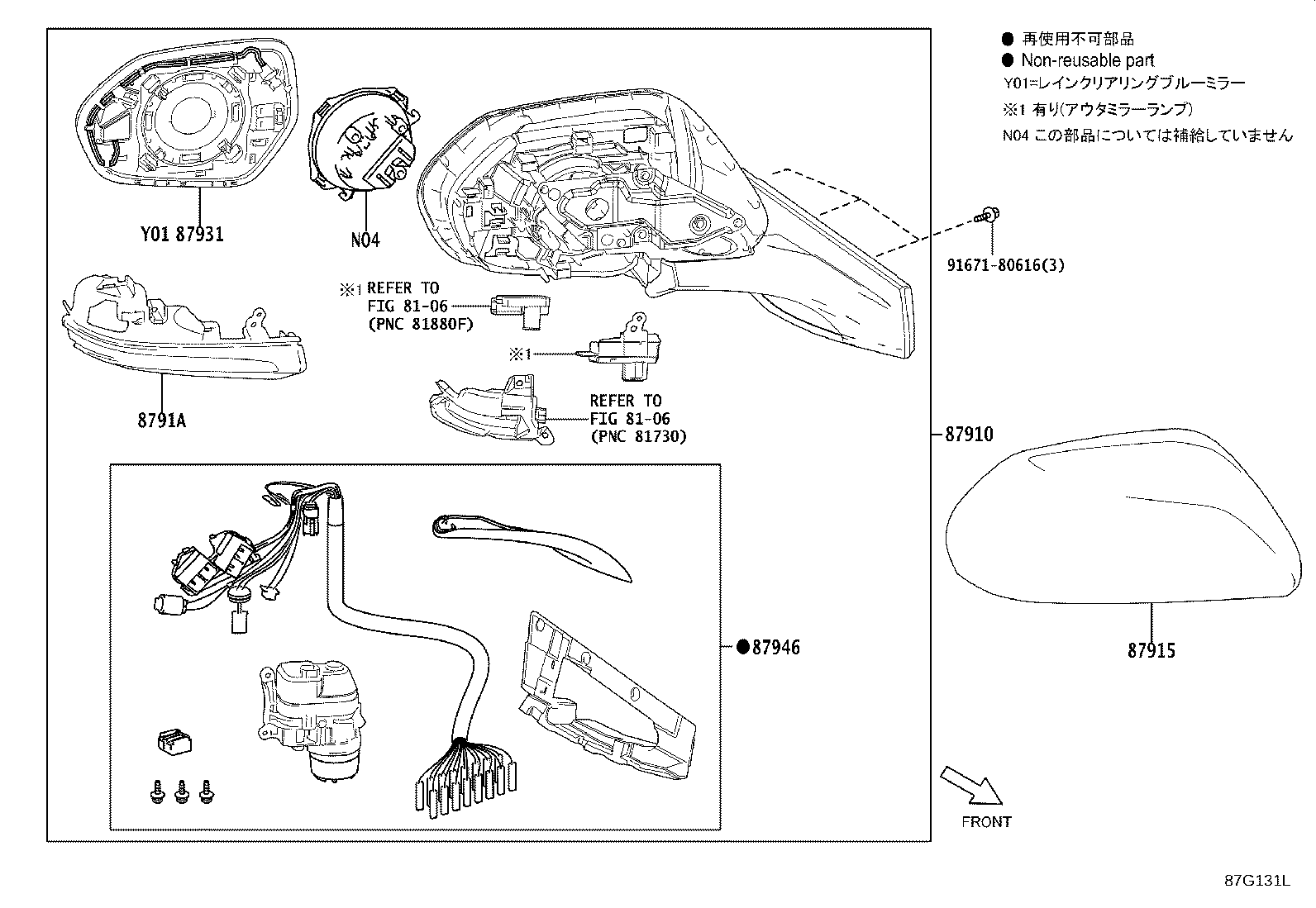

ﾐｷﾞｶﾞﾜｱｳﾀﾘﾔﾋﾞｭｰﾐﾗｰ

Part #	Description	Period	Qty
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-10860	NGX50,ZYX10..G,GT 塗装不要	12/2016 - 10/2017	1
87910-10861	NGX10,50,ZYX10..G,GT 塗装不要	11/2017 - 10/2019	1
87915 - COVER, OUTER MIRROR, RH
87915-10010A0	NGX10,50,ZYX10 WHITE,2JU ,2NC ,2ND ,2NE ,2NG ,2NJ ,2PR	12/2016 - 10/2019	1
87915-10010B0	NGX10,50,ZYX10..G,GT METAL STREAM ME,1K0 ,2TA ,2TR	12/2016 - 10/2019	1
87915-10010C0	NGX10,50,ZYX10 BLACK,2NA ,2NF ,2NH ,2NK ,2PQ ,2RW	12/2016 - 10/2019	1
87915-10010C1	NGX10,50,ZYX10 BLACK MC.,209	12/2016 - 10/2019	1
87915-10010D0	NGX10,50,ZYX10 RED MC.,3T3	12/2016 - 10/2019	1
87915-10010E0	NGX10,50,ZYX10..G,GT DK. BROWN M.M.,2TP ,4U3	12/2016 - 10/2019	1
87915-10010A1	NGX10,50,ZYX10 WHITE PEARL CS.,070	12/2016 - 10/2019	1
87915-10010J0	NGX50,ZYX10 BLUE ME.,8T7	12/2016 - 05/2018	1
87915-10010J1	NGX10,50,ZYX10 NEBULA BLUE ME.,8X2	05/2018 - 10/2019	1
87915-10010C2	NGX10,50,ZYX10..G,GT BLACKISH AGEHA GF.,221	12/2018 - 10/2019	1
87915-10010G0	NGX10,50,ZYX10 RADIANT GREEN ME.,6W9	12/2016 - 10/2019	1
87915-10010F0	NGX10,50,ZYX10 YELLOW,5A3	12/2016 - 10/2019	1
8791A - COVER, OUTER MIRROR, RH NO.2
8791A-10860	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1
87931 - OUTER MIRROR, RH
87931-10860	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1
87946 - RETRACTOR, OUTER MIRROR, RH
87946-10860	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1
Common parts
91671-80616
Linked diagrams
8106

Click highlighted areas on diagram

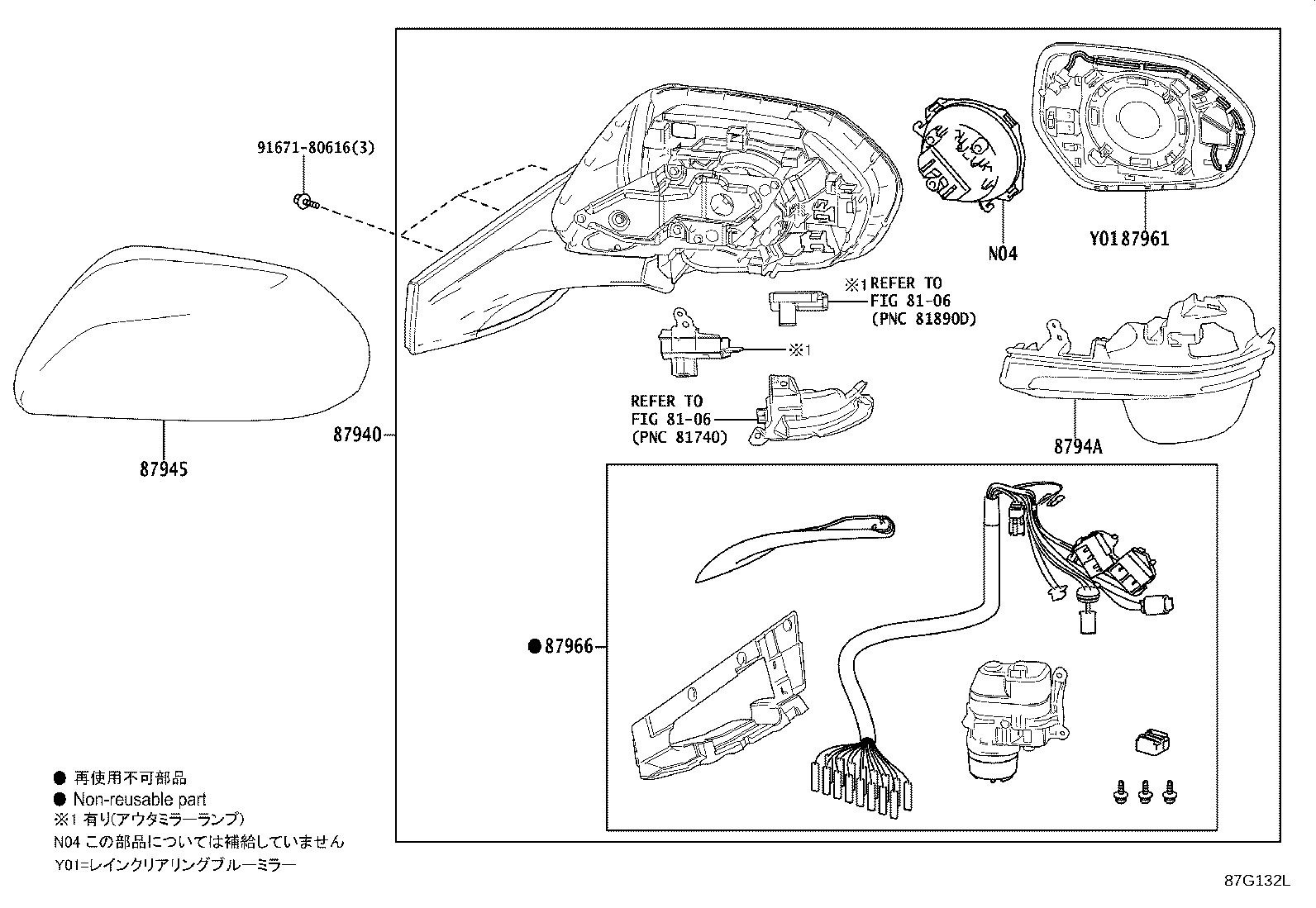

ﾋﾀﾞﾘｶﾞﾜｱｳﾀﾘﾔﾋﾞｭｰﾐﾗｰ

Part #	Description	Period	Qty
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-10850	NGX50,ZYX10..G,GT 塗装不要	12/2016 - 10/2017	1
87940-10852	NGX10,50,ZYX10..G,GT 塗装不要	07/2019 - 10/2019	1
87940-10851	NGX10,50,ZYX10..G,GT 塗装不要	11/2017 - 06/2019	1
87945 - COVER, OUTER MIRROR, LH
87945-10010A0	NGX10,50,ZYX10 WHITE,2JU ,2NC ,2ND ,2NE ,2NG ,2NJ ,2PR	12/2016 - 10/2019	1
87945-10010A1	NGX10,50,ZYX10 WHITE PEARL CS.,070	12/2016 - 10/2019	1
87945-10010B0	NGX10,50,ZYX10..G,GT METAL STREAM ME,1K0 ,2TA ,2TR	12/2016 - 10/2019	1
87945-10010J0	NGX50,ZYX10 BLUE ME.,8T7	12/2016 - 05/2018	1
87945-10010F0	NGX10,50,ZYX10 YELLOW,5A3	12/2016 - 10/2019	1
87945-10010C2	NGX10,50,ZYX10..G,GT BLACKISH AGEHA GF.,221	12/2018 - 10/2019	1
87945-10010G0	NGX10,50,ZYX10 RADIANT GREEN ME.,6W9	12/2016 - 10/2019	1
87945-10010C0	NGX10,50,ZYX10 BLACK,2NA ,2NF ,2NH ,2NK ,2PQ ,2RW	12/2016 - 10/2019	1
87945-10010D0	NGX10,50,ZYX10 RED MC.,3T3	12/2016 - 10/2019	1
87945-10010E0	NGX10,50,ZYX10..G,GT DK. BROWN M.M.,2TP ,4U3	12/2016 - 10/2019	1
87945-10010C1	NGX10,50,ZYX10 BLACK MC.,209	12/2016 - 10/2019	1
87945-10010J1	NGX10,50,ZYX10 NEBULA BLUE ME.,8X2	05/2018 - 10/2019	1
8794A - COVER, OUTER MIRROR, LH NO.2
8794A-10850	NGX10,50,ZYX10..G,GT	12/2016 - 07/2019	1
8794A-10851	NGX10,50,ZYX10..G,GT	07/2019 - 10/2019	1
87961 - MIRROR OUTER, LH
87961-10850	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1
87966 - RETRACTOR, OUTER MIRROR, LH
87966-10850	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1
Common parts
91671-80616
Linked diagrams
8106
