Toyota C-hr ZYX10 WIRING & CLAMP

ZYX10-AHXEB (2016)

Toyota C-Hr

Production Dec 2016 - Oct 2019

Engine 2ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

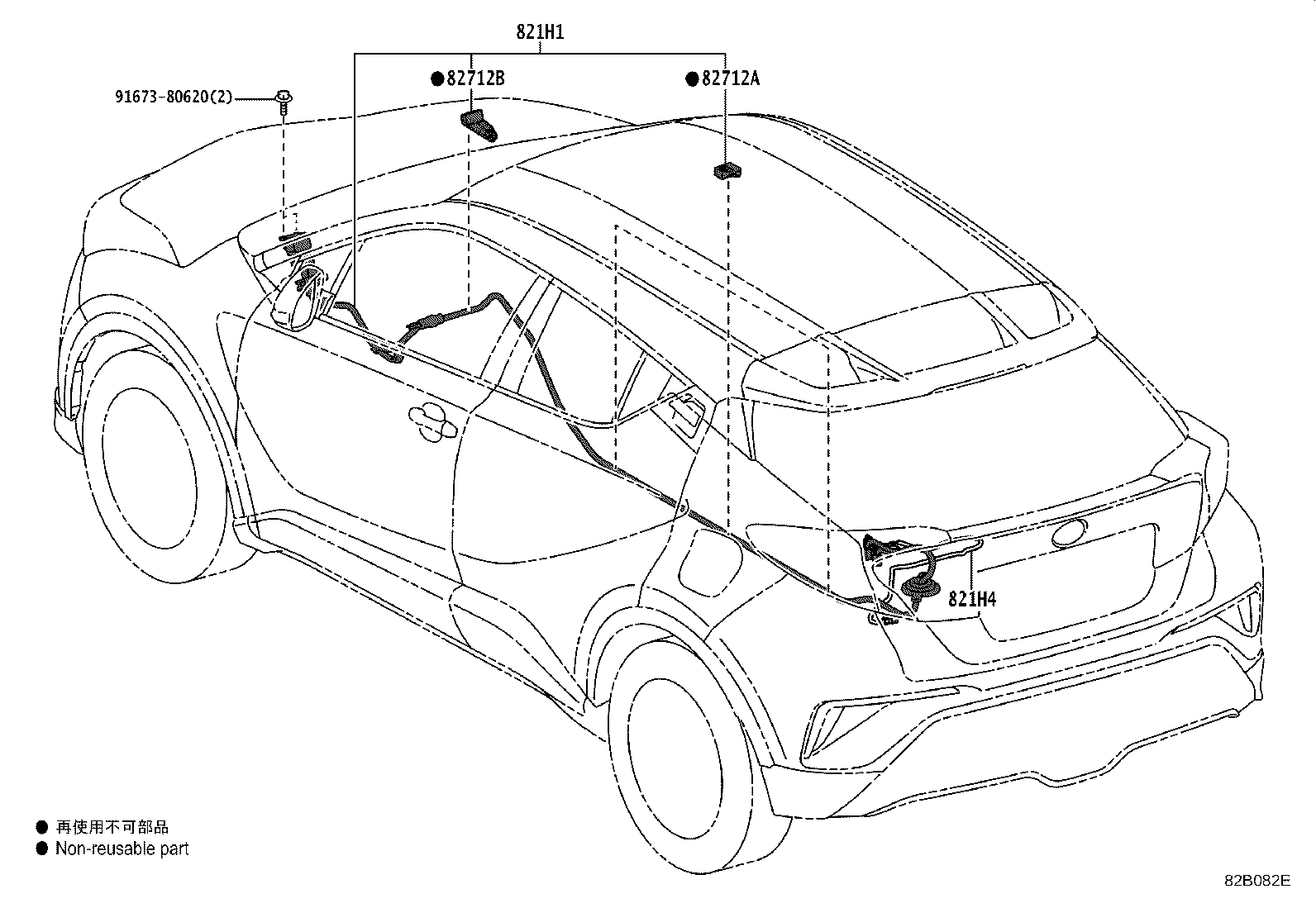

ILLUST NO. 6 OF 9(1612- )ZYX1#

Click highlighted areas on diagram

ｺｳｱﾂｹｰﾌﾞﾙ

Part #	Description	Period	Qty
821H1 - WIRE, FLOOR UNDER
821H1-10010	ZYX10	12/2016 - 10/2019	1
821H4 - WIRE, HV SOCKET INVERTER
821H4-10010	ZYX10 ｱｸｾｻﾘｰｺﾝｾﾝﾄ−有り(AC100V/1500W電源)	12/2016 - 10/2019	1
82712A - SUPPORT, WIRING HARNESS
82712-47530	ZYX10	12/2016 - 10/2019	3
82712B - SUPPORT, WIRING HARNESS
82712-47410	ZYX10	12/2016 - 10/2019	1
Common parts
91673-80620

ILLUST NO. 4 OF 9(1612- )

Click highlighted areas on diagram

ﾄﾞｱ

Part #	Description	Period	Qty

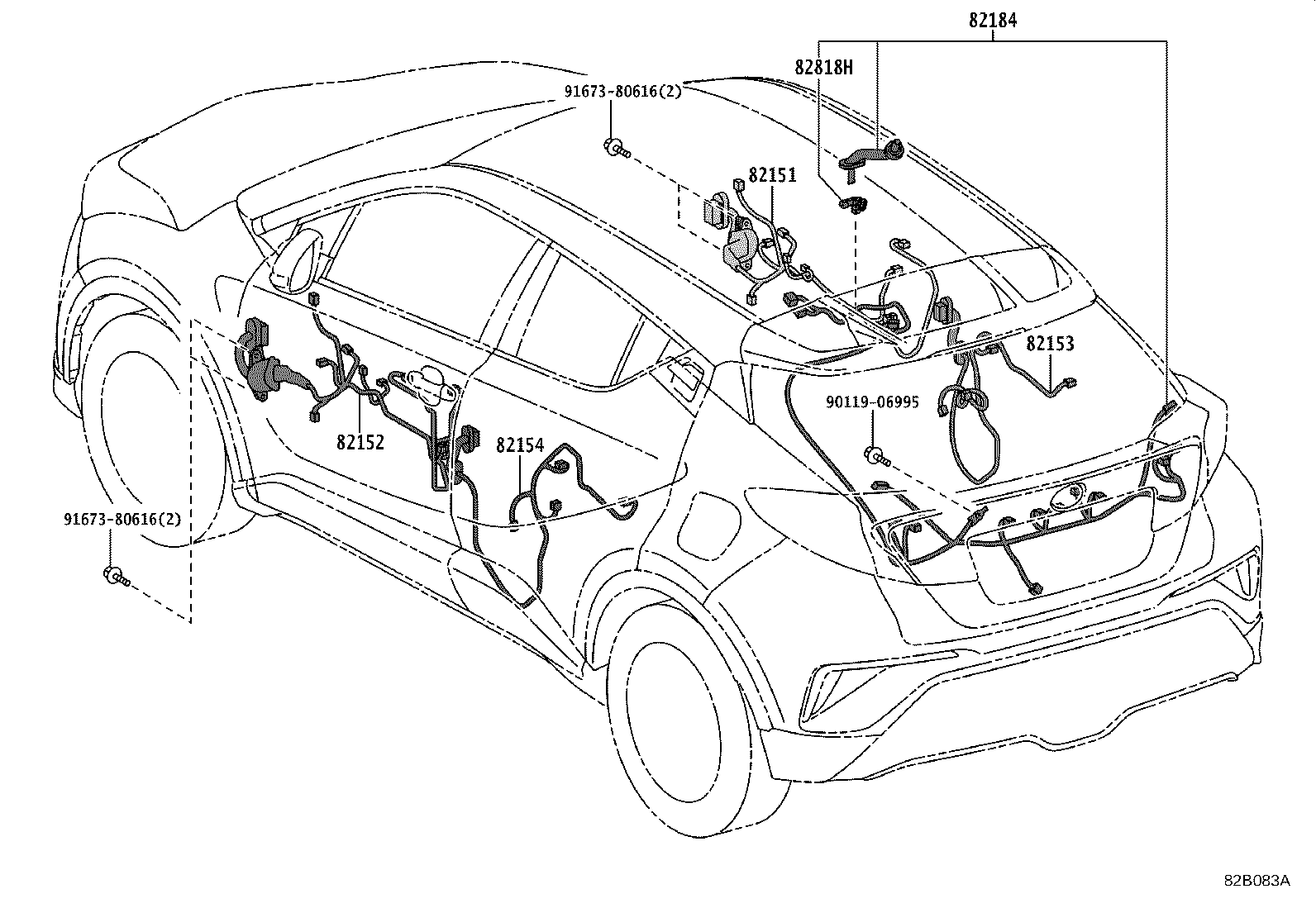

82151 - WIRE, FRONT DOOR, RH
82151-10460	NGX50,ZYX10..G,GT	12/2016 - 08/2017	1
82151-10461	NGX10,50,ZYX10..G,GT	09/2017 - 07/2019	1
82151-10462	NGX10,50,ZYX10..G,GT	07/2019 - 10/2019	1
82152 - WIRE, FRONT DOOR, LH
82152-10462	NGX10,50,ZYX10..G,GT	07/2019 - 10/2019	1
82152-10460	NGX50,ZYX10..G,GT	12/2016 - 08/2017	1
82152-10461	NGX10,50,ZYX10..G,GT	09/2017 - 07/2019	1
82153 - WIRE, REAR DOOR, NO.1
82153-10070	NGX50,ZYX10	12/2016 - 08/2017	1
82153-10072	NGX10,50,ZYX10	07/2019 - 10/2019	1
82153-10071	NGX10,50,ZYX10	09/2017 - 07/2019	1
82154 - WIRE, REAR DOOR, NO.2
82154-10070	NGX50,ZYX10	12/2016 - 12/2017	1
82154-10072	NGX10,50,ZYX10	07/2019 - 10/2019	1
82154-10071	NGX10,50,ZYX10	01/2018 - 07/2019	1
82184 - WIRE, BACK DOOR, NO.1
82184-10160	NGX50,ZYX10	12/2016 - 07/2017	1
82184-10180	NGX50,ZYX10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED&*AHB&ﾊﾞｯｸﾓﾆﾀ−有り	12/2016 - 07/2017	1
82184-10190	NGX50,ZYX10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED&*AHB	12/2016 - 07/2017	1
82184-10191	NGX50,ZYX10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED&*AHB	08/2017 - 05/2018	1
82184-10170	NGX50,ZYX10 ﾊﾞｯｸﾓﾆﾀ−有り	12/2016 - 07/2017	1
82184-10161	NGX50,ZYX10	08/2017 - 05/2018	1
82184-10171	NGX50,ZYX10 ﾊﾞｯｸﾓﾆﾀ−有り	08/2017 - 05/2018	1
82184-10181	NGX50,ZYX10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED&*AHB&ﾊﾞｯｸﾓﾆﾀ−有り	08/2017 - 05/2018	1
82184-10182	NGX10,50,ZYX10..G,GT ﾊﾞｯｸﾓﾆﾀ−有り	05/2018 - 10/2019	1
82184-10192	NGX10,50,ZYX10..G,GT	05/2018 - 10/2019	1
82818H - PROTECTOR, WIRING HARNESS, NO.9
82817-F4440	NGX50,ZYX10	12/2016 - 04/2017	1
82817-10350	NGX10,50,ZYX10	05/2017 - 10/2019	1
Common parts
90119-06995
91673-80616

ILLUST NO. 3 OF 9(1612-1910)

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty

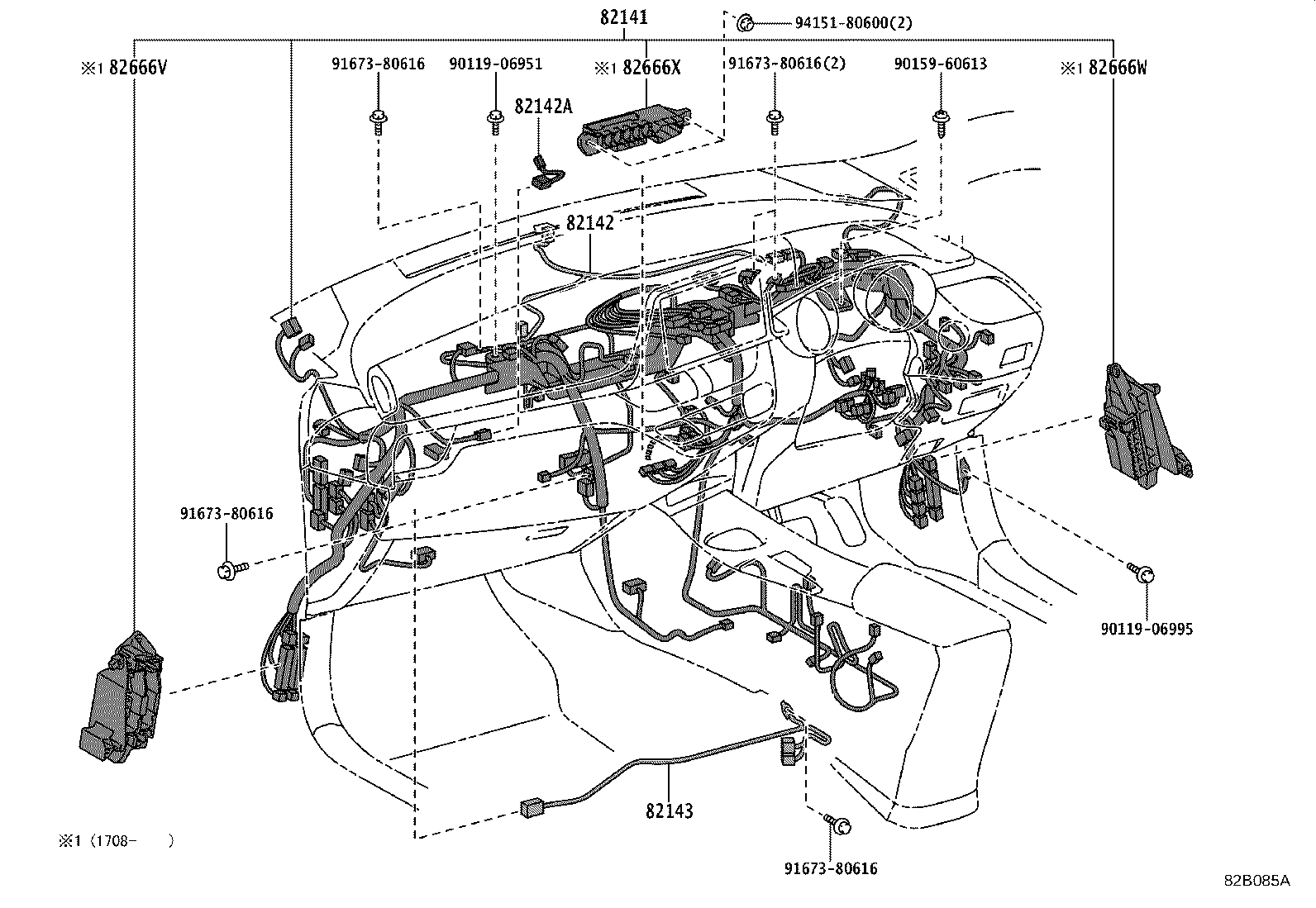

82141 - WIRE, INSTRUMENT PANEL
82141-10730	ZYX10..G ｱｸｾｻﾘｰｺﾝｾﾝﾄ−有り(AC100V/1500W電源)	12/2016 - 05/2018	1
82141-10691	ZYX10..G	05/2018 - 10/2019	1
82141-10690	ZYX10..G	12/2016 - 05/2018	1
82141-10731	ZYX10..G ｱｸｾｻﾘｰｺﾝｾﾝﾄ−有り(AC100V/1500W電源)	05/2018 - 10/2019	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-10020	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-60020	NGX10,50,ZYX10	12/2016 - 10/2019	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-10030	ZYX10 寒冷地仕様	12/2016 - 10/2019	1
82666V - HOLDER, CONNECTOR NO.15
82666-10050	NGX10,50,ZYX10	08/2017 - 10/2019	1
82666W - HOLDER, CONNECTOR NO.16
82666-10060	NGX10,50,ZYX10	08/2017 - 10/2019	1
82666X - HOLDER, CONNECTOR NO.17
82666-10070	NGX10,50,ZYX10	08/2017 - 10/2019	1
Common parts
90119-06951
90119-06995
90159-60613
91673-80616
94151-80600

ILLUST NO. 1 OF 9(1612- )ZYX1#

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty

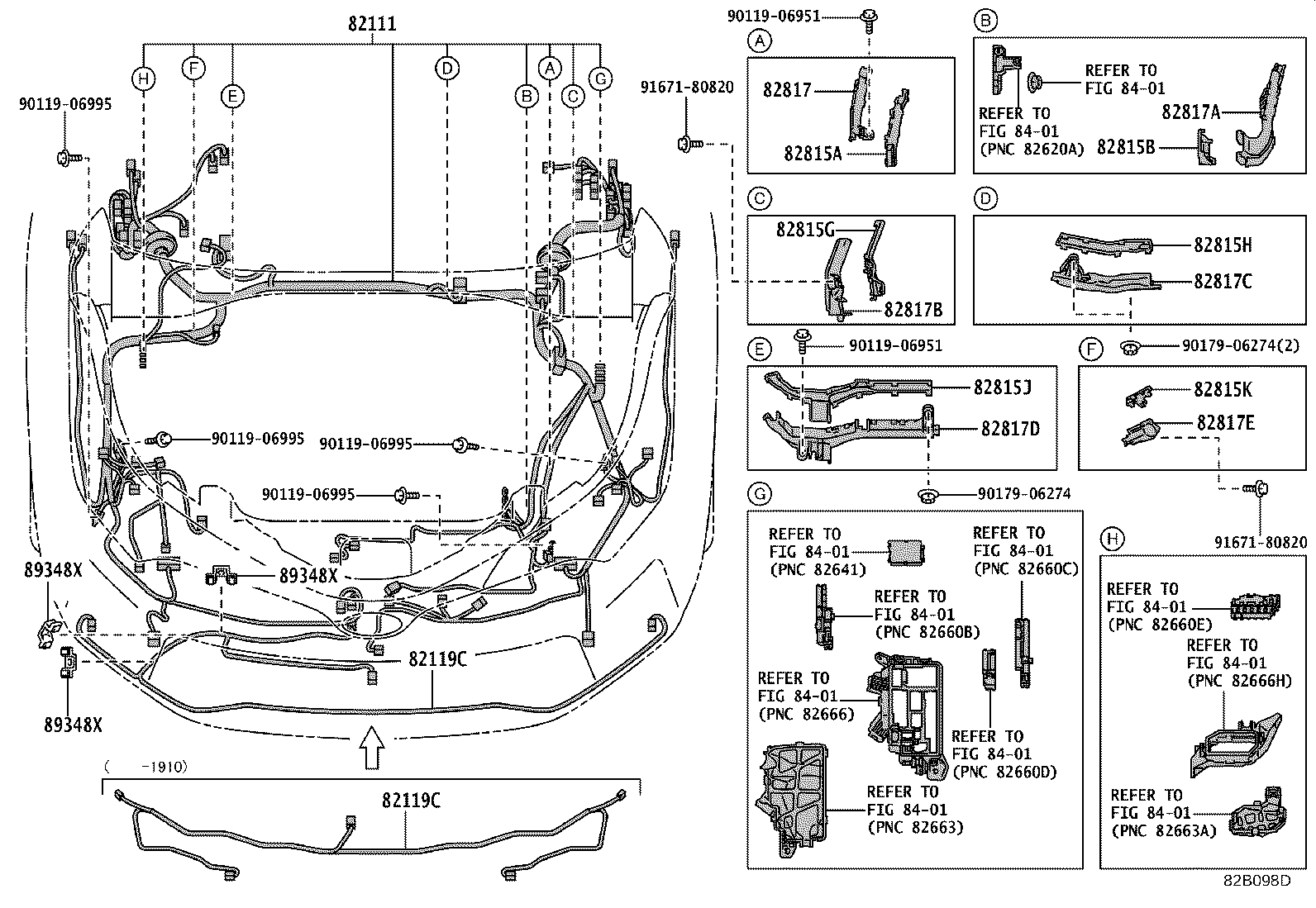

82111 - WIRE, ENGINE ROOM MAIN
82111-10A50	ZYX10..G	12/2016 - 05/2018	1
82111-10A70	ZYX10..G ﾍｯﾄﾞﾗﾝﾌﾟ−LED&*AHB	12/2016 - 05/2018	1
82111-10A80	ZYX10..G 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&*AHB	12/2016 - 05/2018	1
82111-10A60	ZYX10..G 寒冷地仕様	12/2016 - 05/2018	1
82111-10A71	ZYX10..G	05/2018 - 10/2019	1
82111-10A81	ZYX10..G 寒冷地仕様	05/2018 - 10/2019	1
82119C - WIRE, ENGINE ROOM, NO.5
82119-10010	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1
82119C - WIRE, ENGINE ROOM, NO.5
82119-10010	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-47880	ZYX10	12/2016 - 10/2019	1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-47C20	ZYX10	12/2016 - 10/2019	1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-47C90	ZYX10	12/2016 - 10/2019	1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-47D00	ZYX10	12/2016 - 10/2019	1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-47D30	ZYX10	12/2016 - 10/2019	1
82815K - COVER, WIRING HARNESS PROTECTOR, NO.8
82815-47D40	ZYX10	12/2016 - 10/2019	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-47N30	ZYX10	12/2016 - 10/2019	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-47N40	ZYX10	12/2016 - 10/2019	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-47N60	ZYX10	12/2016 - 10/2019	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-47N70	ZYX10	12/2016 - 10/2019	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-47P00	ZYX10	12/2016 - 10/2019	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-47P10	ZYX10	12/2016 - 10/2019	1
Common parts
90119-06951
90119-06995
90179-06274
91671-80820
Linked diagrams
8401

ILLUST NO. 2 OF 9(1612- )ZYX1#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty

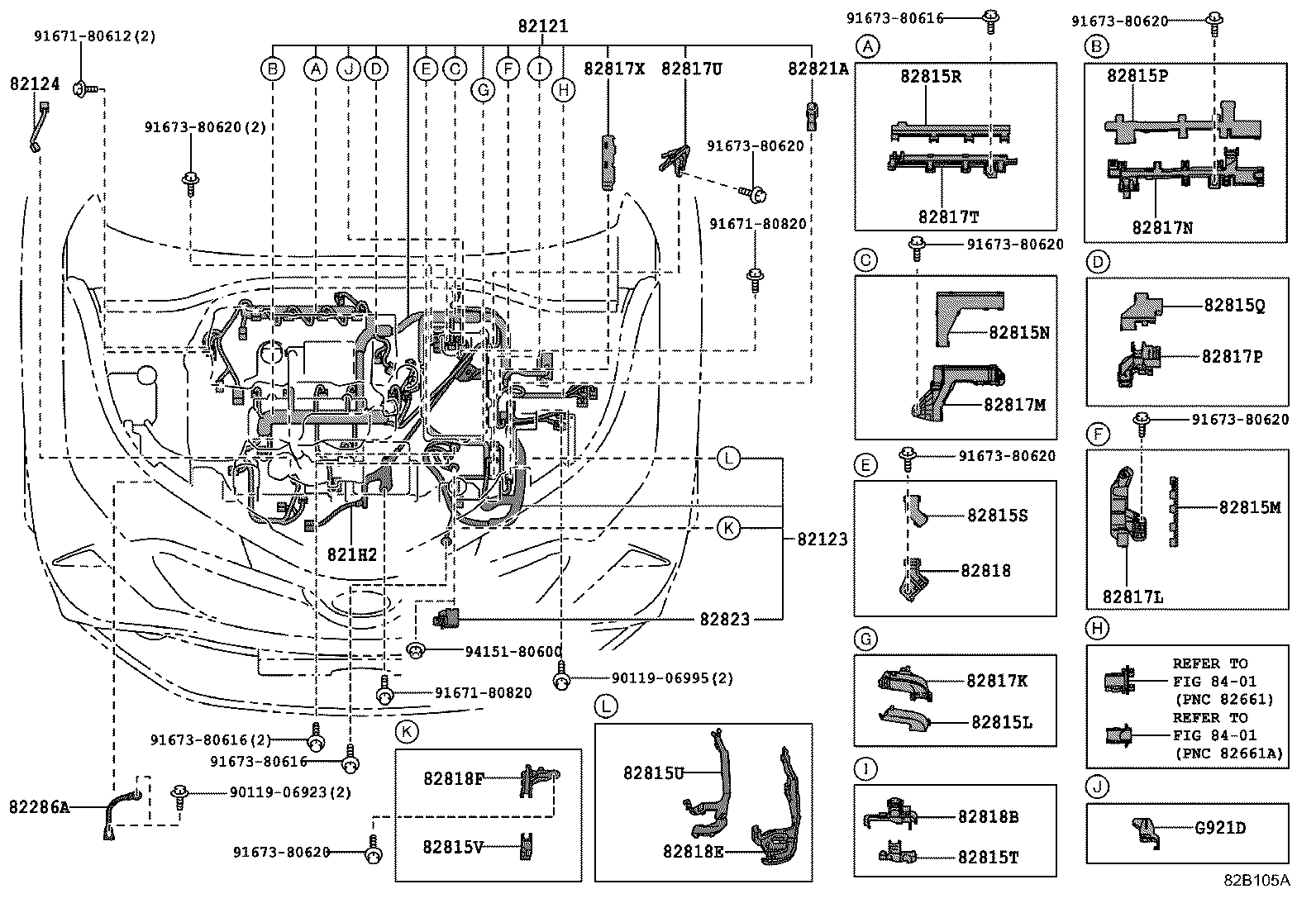

82121 - WIRE, ENGINE
82121-10A22	ZYX10	05/2018 - 10/2019	1
82121-10A21	ZYX10	09/2017 - 04/2018	1
82121-10A20	ZYX10	12/2016 - 08/2017	1
82123 - WIRE, ENGINE, NO.3
82123-10170	ZYX10	12/2016 - 10/2019	1
82124 - WIRE, ENGINE, NO.4
82124-12160	ZYX10	12/2016 - 10/2019	1
821H2 - WIRE, HV AIR CONDITIONER
821H2-47010	ZYX10	12/2016 - 10/2019	1
82286A - WIRE, EARTH, NO.2
82286-47010	ZYX10	12/2016 - 10/2019	1
82815L - COVER, WIRING HARNESS PROTECTOR, NO.9
82815-47D80	ZYX10	12/2016 - 10/2019	1
82815M - COVER, WIRING HARNESS PROTECTOR, NO.10
82815-47E00	ZYX10	12/2016 - 10/2019	1
82815N - COVER, WIRING HARNESS PROTECTOR, NO.11
82815-47E10	ZYX10	12/2016 - 10/2019	1
82815P - COVER, WIRING HARNESS PROTECTOR, NO.12
82815-47E20	ZYX10	12/2016 - 10/2019	1
82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13
82815-47E30	ZYX10	12/2016 - 10/2019	1
82815R - COVER, WIRING HARNESS PROTECTOR, NO.14
82815-47E40	ZYX10	12/2016 - 10/2019	1
82815S - COVER, WIRING HARNESS PROTECTOR, NO.15
82815-F4050	ZYX10	12/2016 - 10/2019	1
82815T - COVER, WIRING HARNESS PROTECTOR, NO.16
82815-F4060	ZYX10	12/2016 - 10/2019	1
82815U - COVER, WIRING HARNESS PROTECTOR, NO.17
82815-47E50	ZYX10	12/2016 - 10/2019	1
82815V - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-10080	ZYX10	05/2018 - 10/2019	1
82815-F4070	ZYX10	12/2016 - 11/2017	1
82815-12M10	ZYX10	12/2017 - 05/2018	1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-47P50	ZYX10	12/2016 - 10/2019	1
82817L - PROTECTOR, WIRING HARNESS, NO.11
82817-47P70	ZYX10	12/2016 - 10/2019	1
82817M - PROTECTOR, WIRING HARNESS, NO.12
82817-47L20	ZYX10	05/2018 - 10/2019	1
82817-47P80	ZYX10	12/2016 - 04/2018	1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-47P90	ZYX10	12/2016 - 10/2019	1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-47Q00	ZYX10	12/2016 - 10/2019	1
82817T - PROTECTOR, WIRING HARNESS, NO.15
82817-47Q10	ZYX10	12/2016 - 10/2019	1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-47S30	ZYX10	12/2016 - 10/2019	1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-47S40	ZYX10	12/2016 - 10/2019	1
82818 - PROTECTOR, WIRING HARNESS, NO.2
82817-F4060	ZYX10	12/2016 - 10/2019	1
82818B - PROTECTOR, WIRING HARNESS, NO.3
82817-F4070	ZYX10	12/2016 - 10/2019	1
82818E - PROTECTOR, WIRING HARNESS, NO.6
82817-47Q20	ZYX10	12/2016 - 10/2019	1
82818F - PROTECTOR, WIRING HARNESS, NO.7
82817-F4080	ZYX10	12/2016 - 07/2017	1
82817-1AA00	ZYX10	08/2017 - 05/2018	1
82817-10360	ZYX10	05/2018 - 10/2019	1
82821A - COVER, CONNECTOR
82821-47330	ZYX10	12/2016 - 10/2019	1
82823 - CAP, TERMINAL, NO.1
82823-47050	ZYX10	12/2016 - 10/2019	1
G921D - PROTECTOR, INVERTER CONNECTOR COVER
G921D-47010	ZYX10	12/2016 - 10/2019	1
Common parts
90119-06923
90119-06995
91671-80612
91671-80820
91673-80616
91673-80620
94151-80600
Linked diagrams
8401

ILLUST NO. 5 OF 9(1612- )ZYX1#

Click highlighted areas on diagram

ﾌﾛｱ & ﾙｰﾌ

Part #	Description	Period	Qty

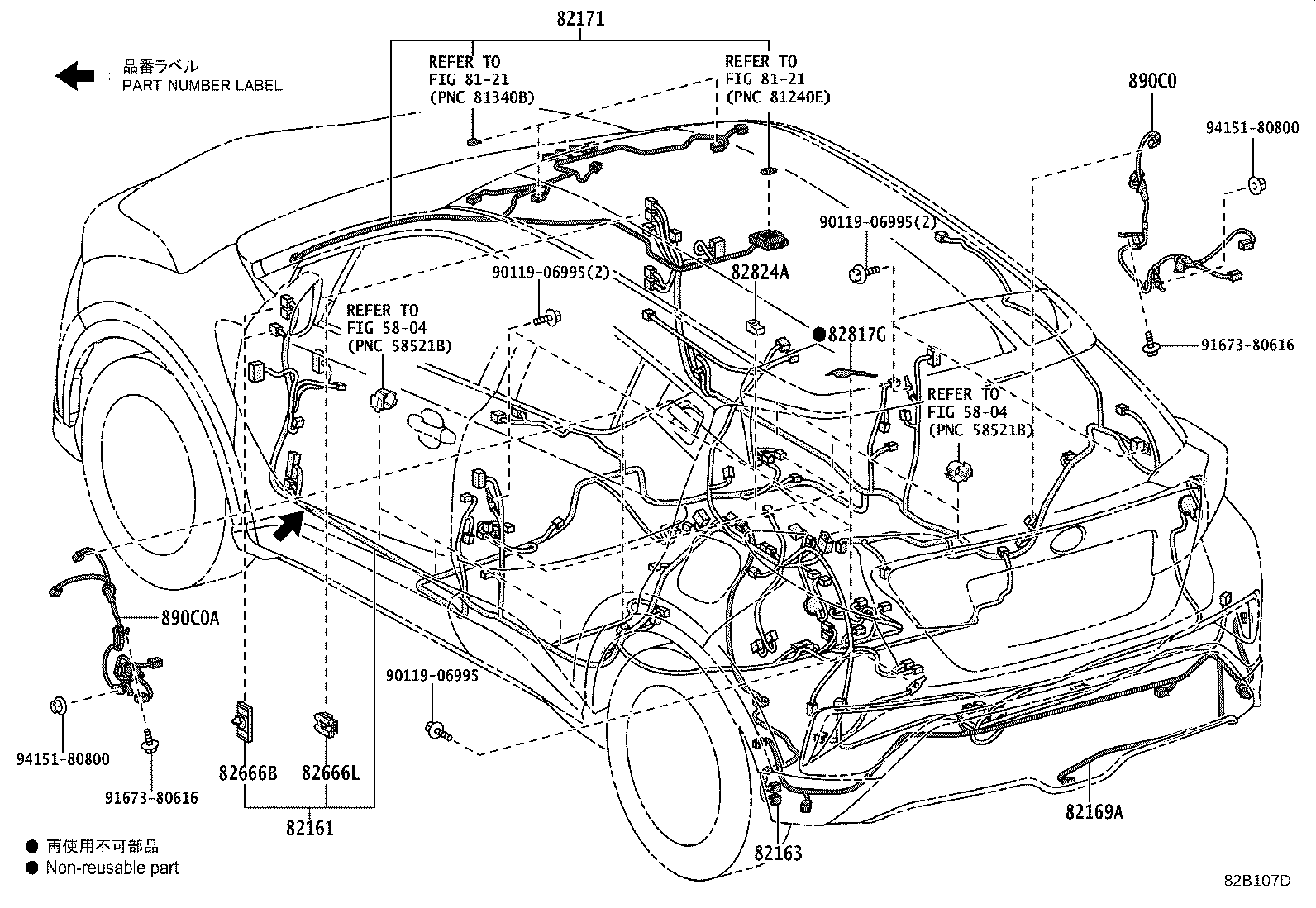

82161 - WIRE, FLOOR
82161-10A70	ZYX10..G ｱｸｾｻﾘｰｺﾝｾﾝﾄ−有り(AC100V/1500W電源)	12/2016 - 05/2018	1
82161-10A20	ZYX10..G	12/2016 - 05/2018	1
82161-10A21	ZYX10..G 品番ﾗﾍﾞﾙ=82161−10A21	05/2018 - 03/2019	1
82161-10A22	ZYX10..G 品番ﾗﾍﾞﾙ=82161−10A22	03/2019 - 10/2019	1
82161-10A72	ZYX10..G ｱｸｾｻﾘｰｺﾝｾﾝﾄ−有り(AC100V/1500W電源),品番ﾗﾍﾞﾙ=8216P−10A72	03/2019 - 10/2019	1
82161-10A71	ZYX10..G ｱｸｾｻﾘｰｺﾝｾﾝﾄ−有り(AC100V/1500W電源),品番ﾗﾍﾞﾙ=8216P−10A71	05/2018 - 03/2019	1
82163 - WIRE, FLOOR, NO.3
82163-10060	NGX10,ZYX10..G,GT	05/2018 - 10/2019	1
82163-10060	ZYX10..G ﾍｯﾄﾞﾗﾝﾌﾟ−LED&*AHB	12/2016 - 05/2018	1
82169A - WIRE, FLOOR, NO.6
82169-10020	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1
82169-10030	NGX10,50,ZYX10..G,GT 寒冷地仕様	12/2016 - 10/2019	1
82171 - WIRE, ROOF, NO.1
82171-10380	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1
82666B - HOLDER, CONNECTOR NO.3
82666-60220	NGX10,50,ZYX10	12/2016 - 10/2019	2
82666L - HOLDER, CONNECTOR NO.9
82666-21040	NGX10,50,ZYX10	12/2016 - 10/2019	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-52710	ZYX10	12/2016 - 10/2019	1
890C0 - WIRE ASSY, PARKING BRAKE, NO.1
890C0-10010	NGX50,ZYX10	12/2016 - 05/2018	1
890C0-10030	NGX10,50,ZYX10	05/2018 - 10/2019	1
890C0A - WIRE ASSY, PARKING BRAKE, NO.2
890C0-10020	NGX50,ZYX10	12/2016 - 05/2018	1
890C0-10040	NGX10,50,ZYX10	05/2018 - 10/2019	1
Common parts
90119-06995
91673-80616
94151-80800
Linked diagrams
8121

ILLUST NO. 8 OF 9(1612- )ZYX1#

Click highlighted areas on diagram

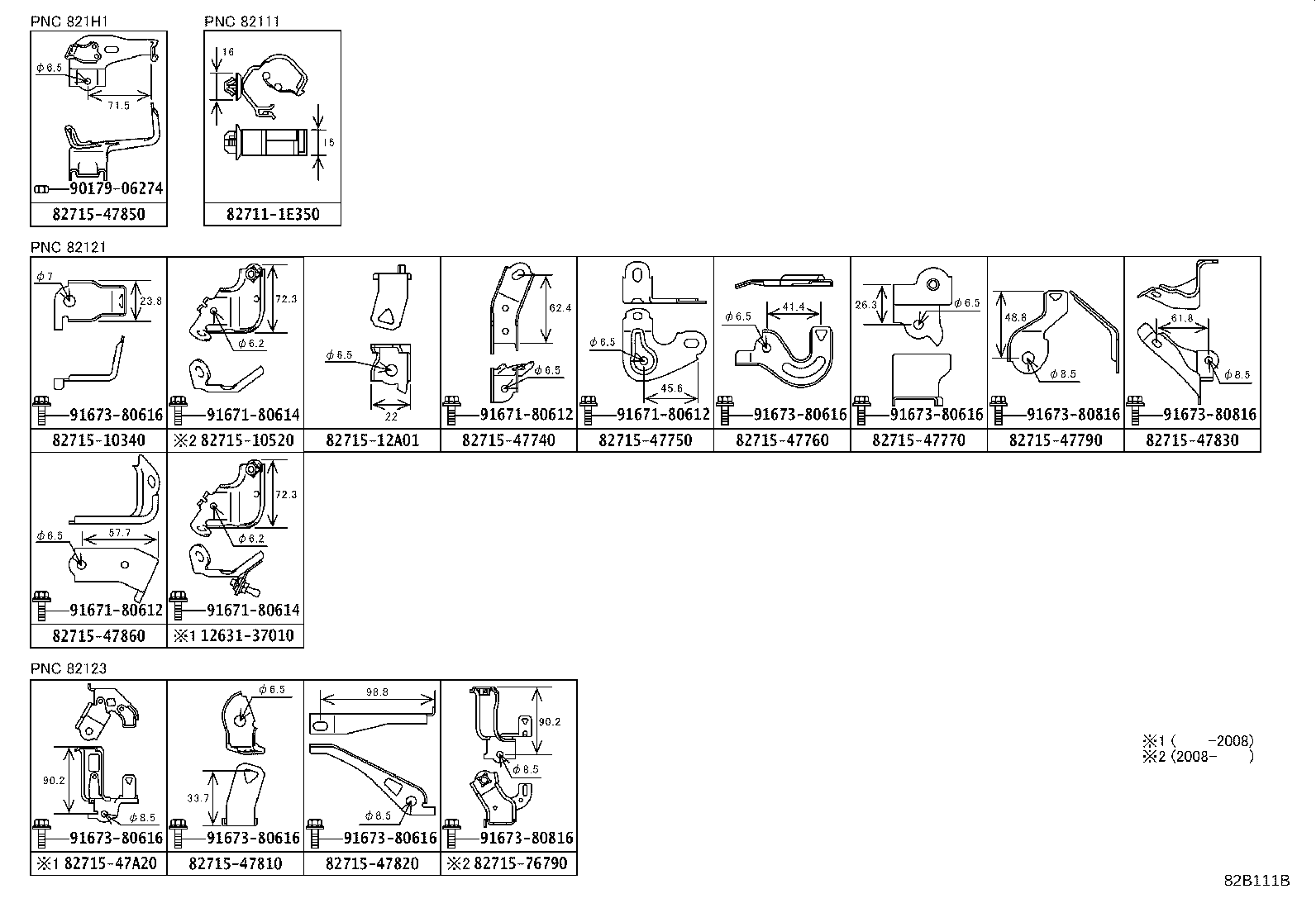

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ

Part #	Description	Period	Qty	Price
Common parts
12631-37010
82711-1E350
82715-10340
82715-10520
82715-12A01
82715-47740
82715-47750
82715-47760
82715-47770
82715-47790
82715-47810
82715-47820
82715-47830
82715-47850
82715-47860
82715-47A20
82715-76790
90179-06274
91671-80612
91671-80614
91673-80616
91673-80816

ILLUST NO. 9 OF 9(1612- )

Click highlighted areas on diagram

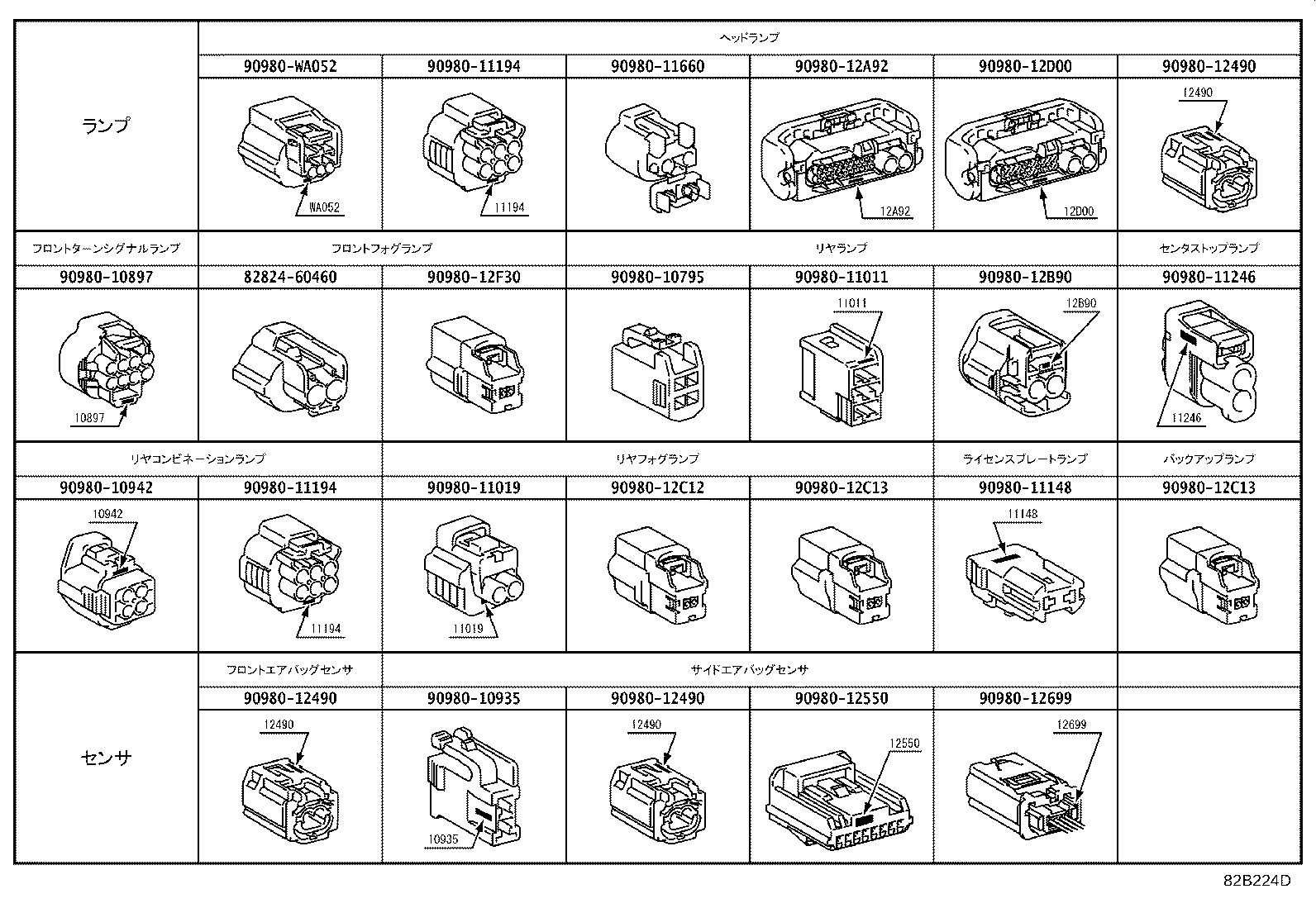

ｺﾈｸﾀ 1/2

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10795
90980-10897
90980-10935
90980-10942
90980-11011
90980-11019
90980-11148
90980-11194
90980-11246
90980-11660
90980-12490
90980-12550
90980-12699
90980-12A92
90980-12B90
90980-12C12
90980-12C13
90980-12D00
90980-12F30
90980-WA052

ILLUST NO. 9 OF 9(1612- )

Click highlighted areas on diagram

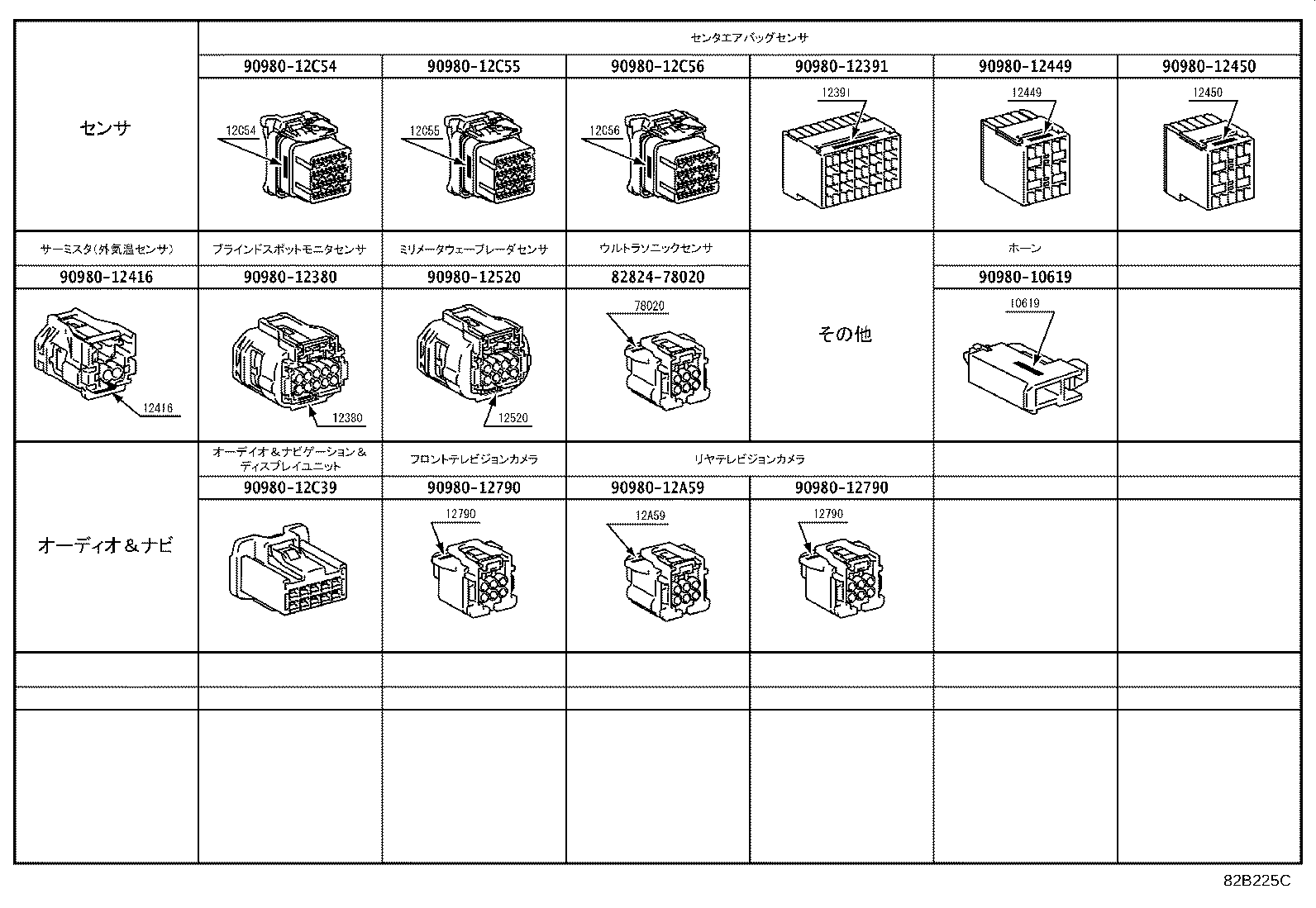

ｺﾈｸﾀ 2/2

Part #	Description	Period	Qty	Price
Common parts
82824-78020
90980-10619
90980-12380
90980-12391
90980-12416
90980-12449
90980-12450
90980-12520
90980-12790
90980-12A59
90980-12C39
90980-12C54
90980-12C55
90980-12C56

ILLUST NO. 7 OF 9(1612- )

Click highlighted areas on diagram

ｼｰﾄ

Part #	Description	Period	Qty

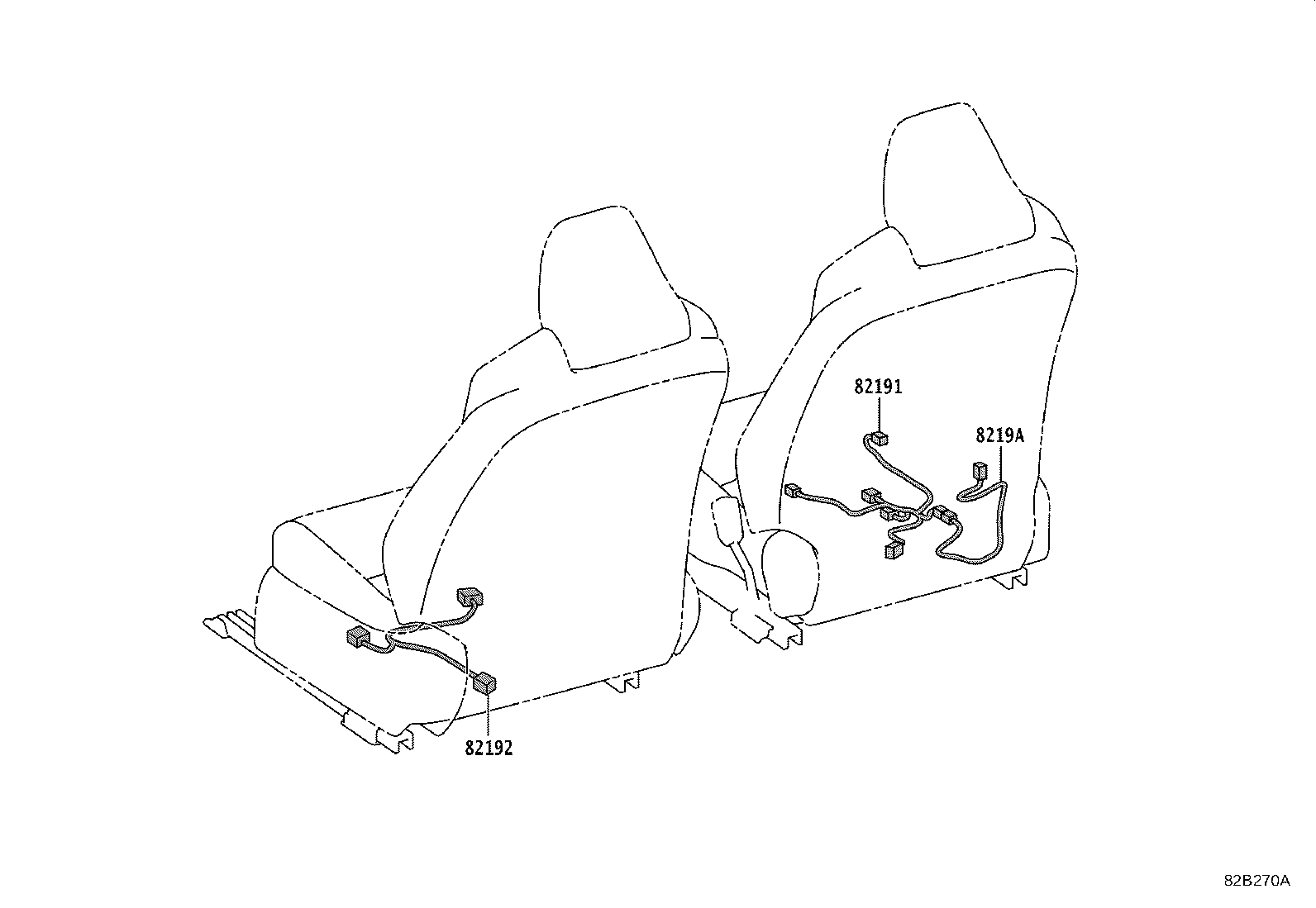

82191 - WIRE, FRONT SEAT, RH
82191-10010	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1
82192 - WIRE, FRONT SEAT, LH
82192-10010	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1
8219A - WIRE, FRONT SEAT, RH NO.2
8219A-47030	NGX10,50,ZYX10..G,GT	12/2016 - 10/2019	1

ZYX10-AHXEB (2016)

ILLUST NO. 6 OF 9(1612- )ZYX1#

ILLUST NO. 4 OF 9(1612- )

ILLUST NO. 3 OF 9(1612-1910)

ILLUST NO. 1 OF 9(1612- )ZYX1#

ILLUST NO. 2 OF 9(1612- )ZYX1#

ILLUST NO. 5 OF 9(1612- )ZYX1#

ILLUST NO. 8 OF 9(1612- )ZYX1#

ILLUST NO. 9 OF 9(1612- )

ILLUST NO. 9 OF 9(1612- )

ILLUST NO. 7 OF 9(1612- )

Part Price Details
