ZYX10-AHXEB (2016)
Toyota C-Hr
Production
Dec 2016
-
Oct 2019
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1612-1910)

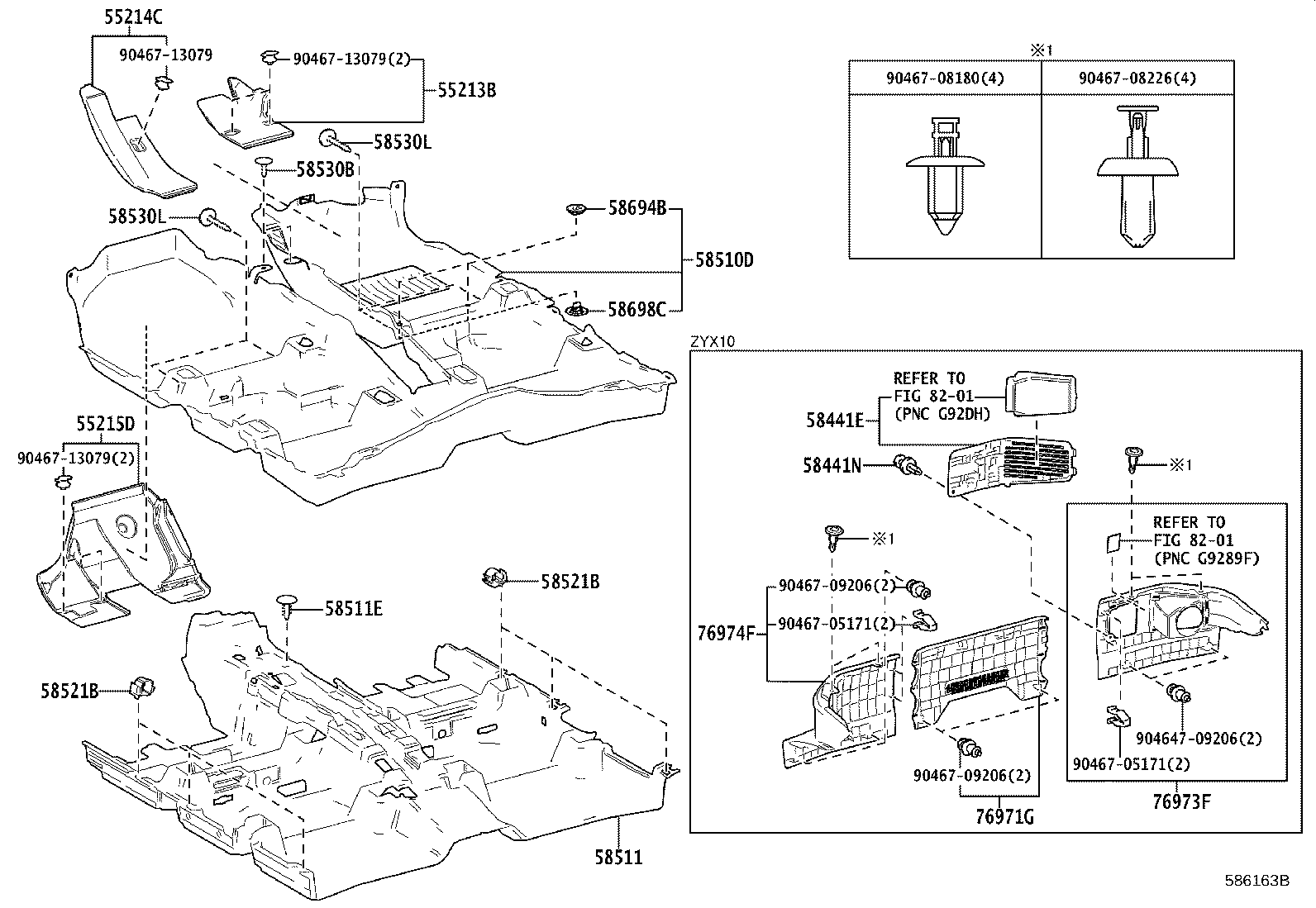

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55213B - PAD, DASH PANEL INSULATOR, NO.1 | ||||
| 55213-10370 |
NGX10,50,ZYX10 |
1 | ||
| 55214C - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-10270 |
NGX10,50,ZYX10 |
1 | ||
| 55215D - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-10150 |
NGX10,50,ZYX10 |
1 | ||
| 58441E - COVER, BATTERY SERVICE HOLE | ||||
| 58441-10010C1 |
ZYX10 BLACK,TRIM2# |
1 | ||
| 58441N - CLIP(FOR BATTERY SERVICE HOLE COVER) | ||||
| 90467-06165C3 |
ZYX10 BLACK,TRIM2# |
1 | ||
| 55328-10070C0 |
ZYX10 BLACK,TRIM2# |
1 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-10A20C2 |
ZYX10 寒冷地仕様,BLACK,TRIM2# |
1 | ||
| 58510-10A90C0 |
ZYX10 BLACK,TRIM2# |
1 | ||
| 58510-10A20C2 |
ZYX10 BLACK,TRIM2# |
1 | ||
| 58511 - MAT, FLOOR, FRONT | ||||
| 58511-10500 |
NGX10,ZYX10 寒冷地仕様 |
1 | ||
| 58511-10520 |
NGX10,ZYX10 |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 90467-07042C0 |
NGX50,ZYX10 BLACK |
1 | ||
| 90467-07042C4 |
NGX10,50,ZYX10 BLACK |
1 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-47030 |
NGX10,50,ZYX10 |
6 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-47030 |
NGX10,50,ZYX10 |
6 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-05164C7 |
NGX10,50,ZYX10 BLACK,TRIM2# |
2 | ||
| 58530L - CLIP, FLOOR CARPET, CENTER | ||||
| 64726-10020C2 |
NGX10,50,ZYX10 BLACK,TRIM2# |
4 | ||
| 58530L - CLIP, FLOOR CARPET, CENTER | ||||
| 64726-10020C2 |
NGX10,50,ZYX10 BLACK,TRIM2# |
4 | ||
| 58694B - PLATE, MAT SET, UPPER | ||||
| 58694-78010 |
NGX10,50,ZYX10 |
2 | ||
| 58698C - PLATE, MAT SET, LOWER | ||||
| 58698-78010 |
NGX10,50,ZYX10 |
2 | ||
| 76971G - COVER, REAR UNDER | ||||
| 76971-10010C1 |
ZYX10 BLACK,TRIM2# |
1 | ||
| 76973F - COVER, REAR UNDER SIDE, RH | ||||
| 76973-10010C1 |
ZYX10 BLACK,TRIM2# |
1 | ||
| 76974F - COVER, REAR UNDER SIDE, LH | ||||
| 76974-10010C1 |
ZYX10 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90467-08180 | ||||
| 90467-08226 | ||||
| 90467-09206 | ||||
| 90467-13079 | ||||
| Linked diagrams | ||||
| 8201 | ||||
