NGX50-AHXNX (2016)

Toyota C-Hr

Production Dec 2016 - Oct 2019
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1612- )

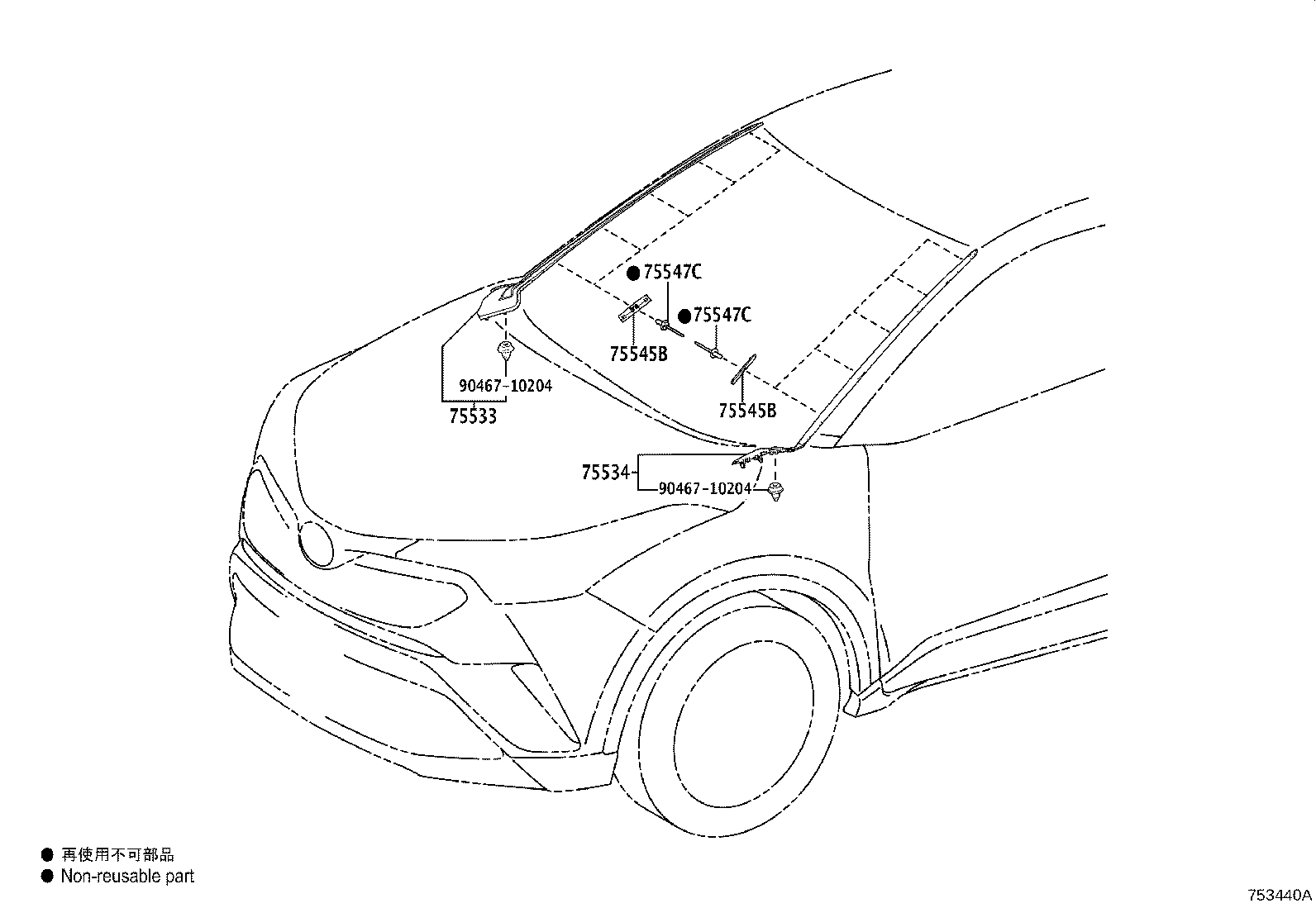

Click highlighted areas on diagram

diagram 75533 75534 75545B 75545B 75547C 75547C 9046710204 9046710204
Part # Description Qty Price
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75535-10050

NGX10,50,ZYX10

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75536-10070

NGX10,50,ZYX10

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-10020

NGX10,50,ZYX10

 10
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-10020

NGX10,50,ZYX10

 10
75547C - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-51021

NGX10,50,ZYX10

 10
75547C - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-51021

NGX10,50,ZYX10

 10
Common parts
90467-10204
