NGX50-AHXNX (2016)
Toyota C-Hr

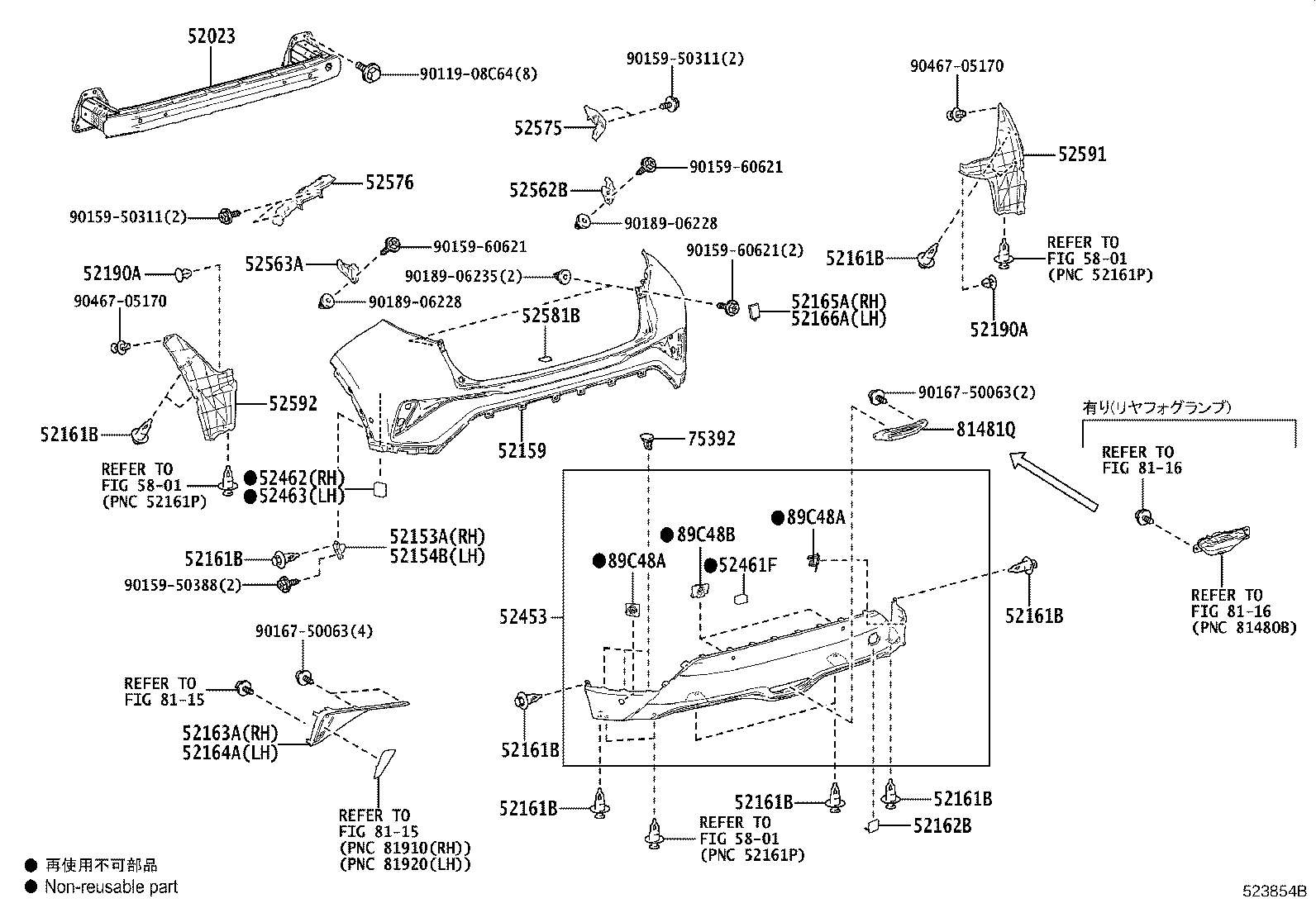

(1612-1910)S,ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-10040 |
NGX10,50,ZYX10 |
1 | ||
| 52153A - STAY, REAR BUMPER SIDE, RH | ||||
| 52153-10060 |
NGX10,50,ZYX10 |
1 | ||
| 52154B - STAY, REAR BUMPER SIDE, LH | ||||
| 52154-10020 |
NGX10,50,ZYX10 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-10300J0 |
NGX50,ZYX10..S,ST BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52159-10300B0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52159-10300J0 |
NGX50,ZYX10..G,GT 寒冷地仕様,BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52159-10300B0 |
NGX10,50,ZYX10..G,GT METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52159-10300A0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,WHITE PEARL CS.,070 ,2NA ,2TP |
1 | ||
| 52159-10300C0 |
NGX10,50,ZYX10..S,ST BLACK MC.,209 ,2ND |
1 | ||
| 52159-10300C0 |
NGX10,50,ZYX10..G,GT BLACK MC.,209 ,2ND ,2TA |
1 | ||
| 52159-10300E0 |
NGX10,50,ZYX10..S,ST DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52159-10300E0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52159-10300D0 |
NGX10,50,ZYX10..S,ST RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52159-10300E0 |
NGX10,50,ZYX10..G,GT DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52159-10300D0 |
NGX10,50,ZYX10..G,GT RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52159-10300F0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52159-10300J0 |
NGX50,ZYX10..G,GT BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52159-10300A0 |
NGX10,50,ZYX10..G,GT WHITE PEARL CS.,070 ,2NA ,2TP |
1 | ||
| 52159-10300G0 |
NGX10,50,ZYX10..S,ST RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52159-10300F0 |
NGX10,50,ZYX10..S,ST YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52159-10300C0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,BLACK MC.,209 ,2ND ,2TA |
1 | ||
| 52159-10300J1 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52159-10300G0 |
NGX10,50,ZYX10..G,GT RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52159-10300G0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52159-10300A0 |
NGX10,50,ZYX10..S,ST WHITE PEARL CS.,070 ,2NA |
1 | ||
| 52159-10300B0 |
NGX10,50,ZYX10..S,ST METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52159-10300J1 |
NGX10,50,ZYX10..G,GT NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52159-10300C1 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,BLACKISH AGEHA GF.,221 ,2TR |
1 | ||
| 52159-10300F0 |
NGX10,50,ZYX10..G,GT YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52159-10300D0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52159-10300J1 |
NGX10,50,ZYX10..S,ST NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52159-10300C1 |
NGX10,50,ZYX10..G,GT BLACKISH AGEHA GF.,221 ,2TR |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-10010 |
NGX10,50,ZYX10 |
1 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-10030 |
NGX10,50,ZYX10 |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-10010 |
NGX10,50,ZYX10 |
1 | ||
| 52165A - COVER, REAR BUMPER, UPR RH | ||||
| 52165-10030A0 |
NGX10,50,ZYX10..S,ST WHITE PEARL CS.,070 ,2NA |
1 | ||
| 52165-10030B0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52165-10030C0 |
NGX10,50,ZYX10..G,GT BLACK MC.,209 ,2ND ,2TA |
1 | ||
| 52165-10030J0 |
NGX50,ZYX10..G,GT BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52165-10030D0 |
NGX10,50,ZYX10..S,ST RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52165-10030B0 |
NGX10,50,ZYX10..S,ST METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52165-10030C0 |
NGX10,50,ZYX10..S,ST BLACK MC.,209 ,2ND |
1 | ||
| 52165-10030E0 |
NGX10,50,ZYX10..G,GT DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52165-10030B0 |
NGX10,50,ZYX10..G,GT METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52165-10030A0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,WHITE PEARL CS.,070 ,2NA ,2TP |
1 | ||
| 52165-10030C0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,BLACK MC.,209 ,2ND ,2TA |
1 | ||
| 52165-10030J0 |
NGX50,ZYX10..S,ST BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52165-10030F0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52165-10030G0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52165-10030J0 |
NGX50,ZYX10..G,GT 寒冷地仕様,BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52165-10030E0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52165-10030E0 |
NGX10,50,ZYX10..S,ST DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52165-10030J1 |
NGX10,50,ZYX10..G,GT NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52165-10030A0 |
NGX10,50,ZYX10..G,GT WHITE PEARL CS.,070 ,2NA ,2TP |
1 | ||
| 52165-10030G0 |
NGX10,50,ZYX10..G,GT RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52165-10030D0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52165-10030G0 |
NGX10,50,ZYX10..S,ST RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52165-10030D0 |
NGX10,50,ZYX10..G,GT RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52165-10030C1 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,BLACKISH AGEHA GF.,221 ,2TR |
1 | ||
| 52165-10030F0 |
NGX10,50,ZYX10..S,ST YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52165-10030J1 |
NGX10,50,ZYX10..S,ST NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52165-10030F0 |
NGX10,50,ZYX10..G,GT YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52165-10030C1 |
NGX10,50,ZYX10..G,GT BLACKISH AGEHA GF.,221 ,2TR |
1 | ||
| 52165-10030J1 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52166A - COVER, REAR BUMPER, UPR LH | ||||
| 52166-10030J0 |
NGX50,ZYX10..S,ST BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52166-10030B0 |
NGX10,50,ZYX10..G,GT METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52166-10030J0 |
NGX50,ZYX10..G,GT BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52166-10030B0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52166-10030D0 |
NGX10,50,ZYX10..G,GT RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52166-10030D0 |
NGX10,50,ZYX10..S,ST RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52166-10030C0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,BLACK MC.,209 ,2ND ,2TA |
1 | ||
| 52166-10030B0 |
NGX10,50,ZYX10..S,ST METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52166-10030J0 |
NGX50,ZYX10..G,GT 寒冷地仕様,BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52166-10030A0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,WHITE PEARL CS.,070 ,2NA ,2TP |
1 | ||
| 52166-10030A0 |
NGX10,50,ZYX10..G,GT WHITE PEARL CS.,070 ,2NA ,2TP |
1 | ||
| 52166-10030A0 |
NGX10,50,ZYX10..S,ST WHITE PEARL CS.,070 ,2NA |
1 | ||
| 52166-10030D0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52166-10030G0 |
NGX10,50,ZYX10..S,ST RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52166-10030F0 |
NGX10,50,ZYX10..S,ST YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52166-10030F0 |
NGX10,50,ZYX10..G,GT YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52166-10030E0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52166-10030E0 |
NGX10,50,ZYX10..G,GT DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52166-10030F0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52166-10030J1 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52166-10030J1 |
NGX10,50,ZYX10..G,GT NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52166-10030C0 |
NGX10,50,ZYX10..G,GT BLACK MC.,209 ,2ND ,2TA |
1 | ||
| 52166-10030C1 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,BLACKISH AGEHA GF.,221 ,2TR |
1 | ||
| 52166-10030C0 |
NGX10,50,ZYX10..S,ST BLACK MC.,209 ,2ND |
1 | ||
| 52166-10030J1 |
NGX10,50,ZYX10..S,ST NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52166-10030C1 |
NGX10,50,ZYX10..G,GT BLACKISH AGEHA GF.,221 ,2TR |
1 | ||
| 52166-10030G0 |
NGX10,50,ZYX10..G,GT RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52166-10030G0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52166-10030E0 |
NGX10,50,ZYX10..S,ST DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52190A - CLIP | ||||
| 90467-06206C0 |
NGX10,50,ZYX10 BLACK |
2 | ||
| 52190A - CLIP | ||||
| 90467-06206C0 |
NGX10,50,ZYX10 BLACK |
2 | ||
| 52453 - GUARD, REAR BUMPER, CENTER | ||||
| 52453-10010 |
NGX10,50,ZYX10..S,ST |
1 | ||
| 52453-10901 |
NGX10,50,ZYX10..G,GT |
1 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52462-10010 |
NGX10,50,ZYX10 |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-10020 |
NGX10,50,ZYX10 |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-10020 |
NGX10,50,ZYX10 |
1 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-10010 |
NGX10,50,ZYX10 |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-10010 |
NGX10,50,ZYX10 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-10010 |
NGX10,50,ZYX10 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-10010 |
NGX10,50,ZYX10 |
1 | ||
| 52581B - PROTECTOR, REAR BUMPER | ||||
| 52581-12140 |
NGX10,50,ZYX10 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-10100 |
NGX10,50,ZYX10 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-10060 |
NGX10,50,ZYX10 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
NGX10,50,ZYX10 |
6 | ||
| 81481Q - BRACKET, FOG LAMP | ||||
| 81481-10050 |
NGX10,50,ZYX10 |
1 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-F4140C0 |
NGX10,50,ZYX10..G,GT BLACK |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-F4140C0 |
NGX10,50,ZYX10..G,GT BLACK |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-F4120 |
NGX10,50,ZYX10..G,GT 左側 |
1 | ||
| 89348-F4130 |
NGX10,50,ZYX10..G,GT 右側 |
1 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-50311 | ||||
| 90159-50388 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90189-06228 | ||||
| 90189-06235 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 8115 | ||||
| 8116 | ||||

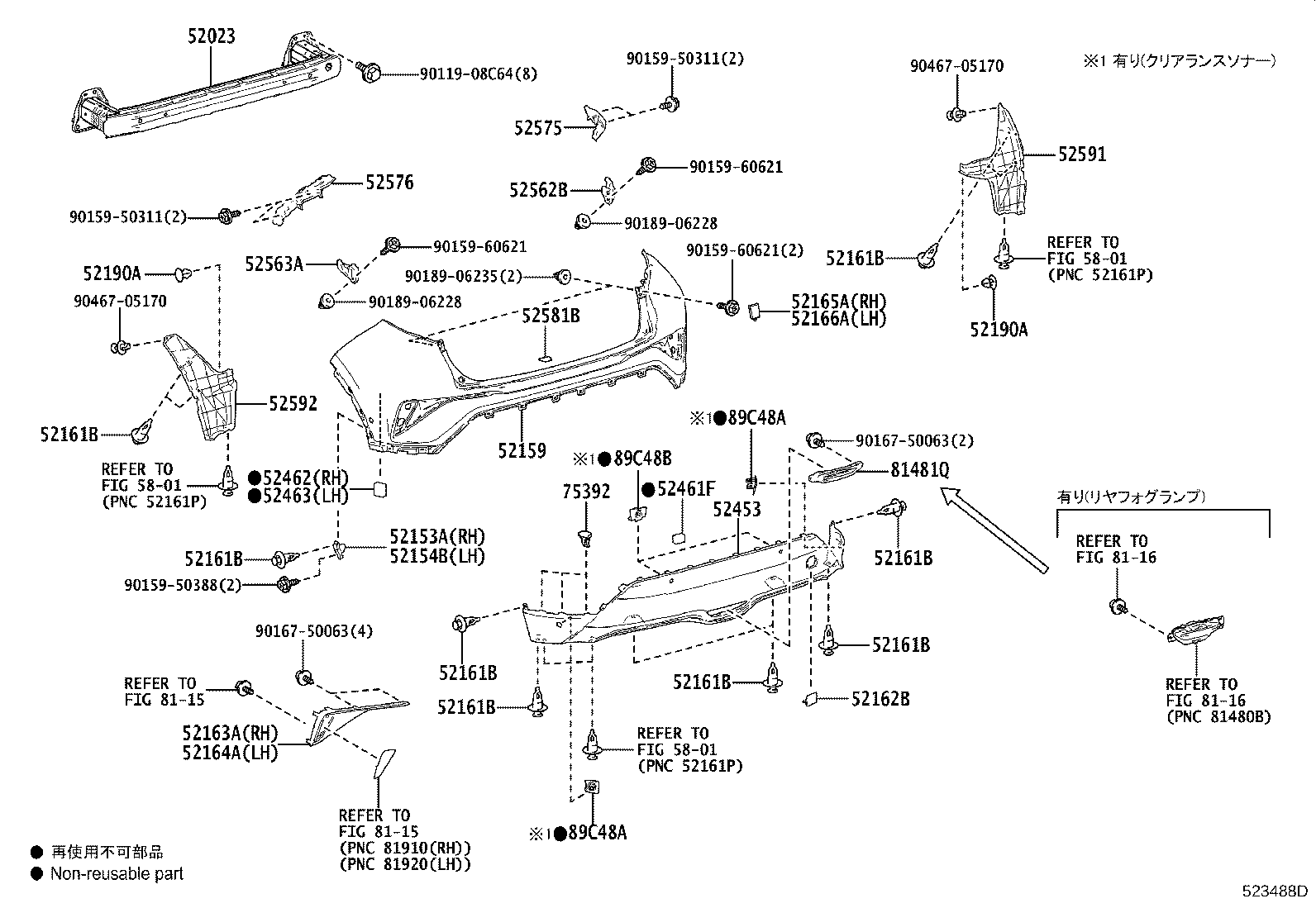

(1612-1910)G,GT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-10040 |
NGX10,50,ZYX10 |
1 | ||
| 52153A - STAY, REAR BUMPER SIDE, RH | ||||
| 52153-10060 |
NGX10,50,ZYX10 |
1 | ||
| 52154B - STAY, REAR BUMPER SIDE, LH | ||||
| 52154-10020 |
NGX10,50,ZYX10 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-10300J0 |
NGX50,ZYX10..S,ST BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52159-10300B0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52159-10300J0 |
NGX50,ZYX10..G,GT 寒冷地仕様,BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52159-10300B0 |
NGX10,50,ZYX10..G,GT METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52159-10300A0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,WHITE PEARL CS.,070 ,2NA ,2TP |
1 | ||
| 52159-10300C0 |
NGX10,50,ZYX10..S,ST BLACK MC.,209 ,2ND |
1 | ||
| 52159-10300C0 |
NGX10,50,ZYX10..G,GT BLACK MC.,209 ,2ND ,2TA |
1 | ||
| 52159-10300E0 |
NGX10,50,ZYX10..S,ST DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52159-10300E0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52159-10300D0 |
NGX10,50,ZYX10..S,ST RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52159-10300E0 |
NGX10,50,ZYX10..G,GT DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52159-10300D0 |
NGX10,50,ZYX10..G,GT RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52159-10300F0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52159-10300J0 |
NGX50,ZYX10..G,GT BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52159-10300A0 |
NGX10,50,ZYX10..G,GT WHITE PEARL CS.,070 ,2NA ,2TP |
1 | ||
| 52159-10300G0 |
NGX10,50,ZYX10..S,ST RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52159-10300F0 |
NGX10,50,ZYX10..S,ST YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52159-10300C0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,BLACK MC.,209 ,2ND ,2TA |
1 | ||
| 52159-10300J1 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52159-10300G0 |
NGX10,50,ZYX10..G,GT RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52159-10300G0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52159-10300A0 |
NGX10,50,ZYX10..S,ST WHITE PEARL CS.,070 ,2NA |
1 | ||
| 52159-10300B0 |
NGX10,50,ZYX10..S,ST METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52159-10300J1 |
NGX10,50,ZYX10..G,GT NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52159-10300C1 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,BLACKISH AGEHA GF.,221 ,2TR |
1 | ||
| 52159-10300F0 |
NGX10,50,ZYX10..G,GT YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52159-10300D0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52159-10300J1 |
NGX10,50,ZYX10..S,ST NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52159-10300C1 |
NGX10,50,ZYX10..G,GT BLACKISH AGEHA GF.,221 ,2TR |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NGX10,50,ZYX10 |
12 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-10010 |
NGX10,50,ZYX10 |
1 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-10030 |
NGX10,50,ZYX10 |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-10010 |
NGX10,50,ZYX10 |
1 | ||
| 52165A - COVER, REAR BUMPER, UPR RH | ||||
| 52165-10030A0 |
NGX10,50,ZYX10..S,ST WHITE PEARL CS.,070 ,2NA |
1 | ||
| 52165-10030B0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52165-10030C0 |
NGX10,50,ZYX10..G,GT BLACK MC.,209 ,2ND ,2TA |
1 | ||
| 52165-10030J0 |
NGX50,ZYX10..G,GT BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52165-10030D0 |
NGX10,50,ZYX10..S,ST RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52165-10030B0 |
NGX10,50,ZYX10..S,ST METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52165-10030C0 |
NGX10,50,ZYX10..S,ST BLACK MC.,209 ,2ND |
1 | ||
| 52165-10030E0 |
NGX10,50,ZYX10..G,GT DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52165-10030B0 |
NGX10,50,ZYX10..G,GT METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52165-10030A0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,WHITE PEARL CS.,070 ,2NA ,2TP |
1 | ||
| 52165-10030C0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,BLACK MC.,209 ,2ND ,2TA |
1 | ||
| 52165-10030J0 |
NGX50,ZYX10..S,ST BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52165-10030F0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52165-10030G0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52165-10030J0 |
NGX50,ZYX10..G,GT 寒冷地仕様,BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52165-10030E0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52165-10030E0 |
NGX10,50,ZYX10..S,ST DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52165-10030J1 |
NGX10,50,ZYX10..G,GT NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52165-10030A0 |
NGX10,50,ZYX10..G,GT WHITE PEARL CS.,070 ,2NA ,2TP |
1 | ||
| 52165-10030G0 |
NGX10,50,ZYX10..G,GT RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52165-10030D0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52165-10030G0 |
NGX10,50,ZYX10..S,ST RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52165-10030D0 |
NGX10,50,ZYX10..G,GT RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52165-10030C1 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,BLACKISH AGEHA GF.,221 ,2TR |
1 | ||
| 52165-10030F0 |
NGX10,50,ZYX10..S,ST YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52165-10030J1 |
NGX10,50,ZYX10..S,ST NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52165-10030F0 |
NGX10,50,ZYX10..G,GT YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52165-10030C1 |
NGX10,50,ZYX10..G,GT BLACKISH AGEHA GF.,221 ,2TR |
1 | ||
| 52165-10030J1 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52166A - COVER, REAR BUMPER, UPR LH | ||||
| 52166-10030J0 |
NGX50,ZYX10..S,ST BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52166-10030B0 |
NGX10,50,ZYX10..G,GT METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52166-10030J0 |
NGX50,ZYX10..G,GT BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52166-10030B0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52166-10030D0 |
NGX10,50,ZYX10..G,GT RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52166-10030D0 |
NGX10,50,ZYX10..S,ST RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52166-10030C0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,BLACK MC.,209 ,2ND ,2TA |
1 | ||
| 52166-10030B0 |
NGX10,50,ZYX10..S,ST METAL STREAM ME,1K0 ,2NK |
1 | ||
| 52166-10030J0 |
NGX50,ZYX10..G,GT 寒冷地仕様,BLUE ME.,2PR ,2RW ,8T7 |
1 | ||
| 52166-10030A0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,WHITE PEARL CS.,070 ,2NA ,2TP |
1 | ||
| 52166-10030A0 |
NGX10,50,ZYX10..G,GT WHITE PEARL CS.,070 ,2NA ,2TP |
1 | ||
| 52166-10030A0 |
NGX10,50,ZYX10..S,ST WHITE PEARL CS.,070 ,2NA |
1 | ||
| 52166-10030D0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 52166-10030G0 |
NGX10,50,ZYX10..S,ST RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52166-10030F0 |
NGX10,50,ZYX10..S,ST YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52166-10030F0 |
NGX10,50,ZYX10..G,GT YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52166-10030E0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52166-10030E0 |
NGX10,50,ZYX10..G,GT DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52166-10030F0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,YELLOW,2JU ,2PQ ,5A3 |
1 | ||
| 52166-10030J1 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52166-10030J1 |
NGX10,50,ZYX10..G,GT NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52166-10030C0 |
NGX10,50,ZYX10..G,GT BLACK MC.,209 ,2ND ,2TA |
1 | ||
| 52166-10030C1 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,BLACKISH AGEHA GF.,221 ,2TR |
1 | ||
| 52166-10030C0 |
NGX10,50,ZYX10..S,ST BLACK MC.,209 ,2ND |
1 | ||
| 52166-10030J1 |
NGX10,50,ZYX10..S,ST NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 52166-10030C1 |
NGX10,50,ZYX10..G,GT BLACKISH AGEHA GF.,221 ,2TR |
1 | ||
| 52166-10030G0 |
NGX10,50,ZYX10..G,GT RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52166-10030G0 |
NGX10,50,ZYX10..G,GT 寒冷地仕様,RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 52166-10030E0 |
NGX10,50,ZYX10..S,ST DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 52190A - CLIP | ||||
| 90467-06206C0 |
NGX10,50,ZYX10 BLACK |
2 | ||
| 52190A - CLIP | ||||
| 90467-06206C0 |
NGX10,50,ZYX10 BLACK |
2 | ||
| 52453 - GUARD, REAR BUMPER, CENTER | ||||
| 52453-10010 |
NGX10,50,ZYX10..S,ST |
1 | ||
| 52453-10901 |
NGX10,50,ZYX10..G,GT |
1 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52462-10010 |
NGX10,50,ZYX10 |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-10020 |
NGX10,50,ZYX10 |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-10020 |
NGX10,50,ZYX10 |
1 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-10010 |
NGX10,50,ZYX10 |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-10010 |
NGX10,50,ZYX10 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-10010 |
NGX10,50,ZYX10 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-10010 |
NGX10,50,ZYX10 |
1 | ||
| 52581B - PROTECTOR, REAR BUMPER | ||||
| 52581-12140 |
NGX10,50,ZYX10 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-10100 |
NGX10,50,ZYX10 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-10060 |
NGX10,50,ZYX10 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
NGX10,50,ZYX10 |
6 | ||
| 81481Q - BRACKET, FOG LAMP | ||||
| 81481-10050 |
NGX10,50,ZYX10 |
1 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-F4140C0 |
NGX10,50,ZYX10..G,GT BLACK |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-F4140C0 |
NGX10,50,ZYX10..G,GT BLACK |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-F4120 |
NGX10,50,ZYX10..G,GT 左側 |
1 | ||
| 89348-F4130 |
NGX10,50,ZYX10..G,GT 右側 |
1 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-50311 | ||||
| 90159-50388 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90189-06228 | ||||
| 90189-06235 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 8115 | ||||
| 8116 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
