NGX50-AHXNX (2016)
Toyota C-Hr
Production
Dec 2016
-
Oct 2019
Engine
8NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

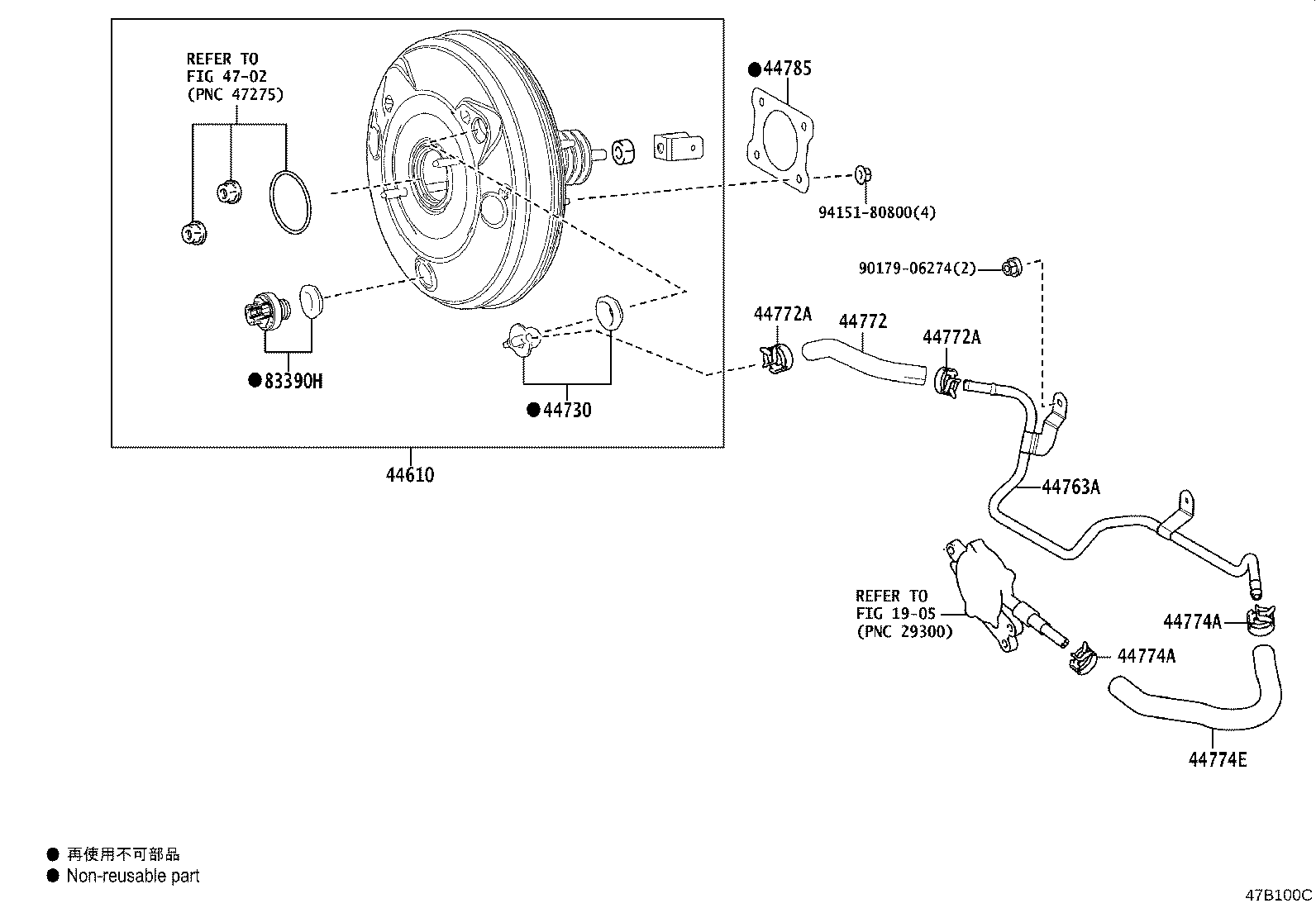

(1612-1802)NGX50
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-F9030 |
NGX10,50 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-F9010 |
NGX10,50 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-10040 |
NGX50 |
1 | ||
| 44763-12570 |
NGX10,50 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-10220 |
NGX10,50 |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NGX10,50 |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NGX10,50 |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NGX10,50 |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NGX10,50 |
2 | ||
| 44774E - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-10021 |
NGX50 |
1 | ||
| 44774-12800 |
NGX10,50 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
NGX10,50 |
1 | ||
| 83390H - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-09020 |
NGX10,50 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 4702 | ||||

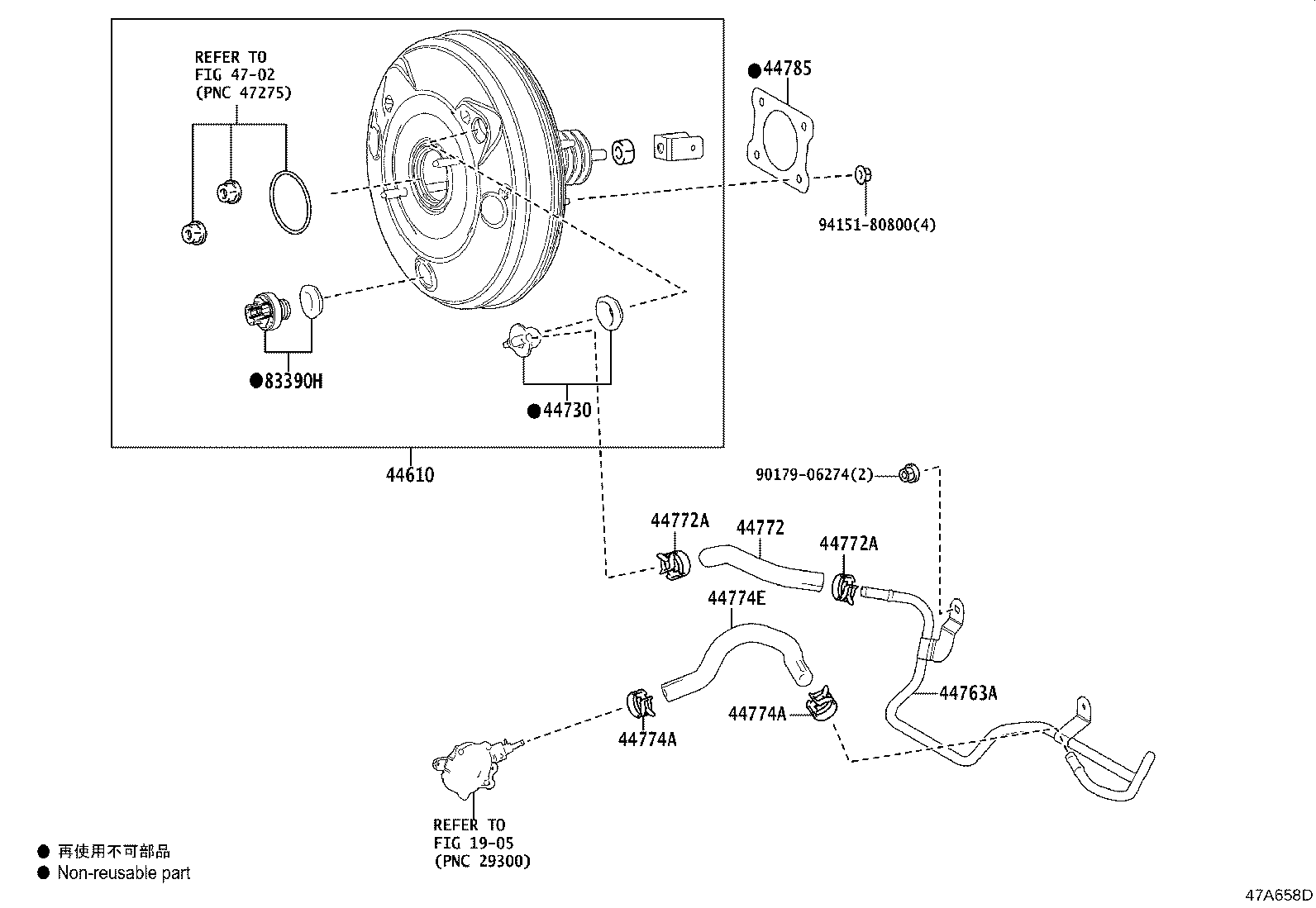

(1802-1910)NGX10,50
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-F9030 |
NGX10,50 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-F9010 |
NGX10,50 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-10040 |
NGX50 |
1 | ||
| 44763-12570 |
NGX10,50 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-10220 |
NGX10,50 |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NGX10,50 |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NGX10,50 |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NGX10,50 |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NGX10,50 |
2 | ||
| 44774E - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-10021 |
NGX50 |
1 | ||
| 44774-12800 |
NGX10,50 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
NGX10,50 |
1 | ||
| 83390H - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-09020 |
NGX10,50 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 4702 | ||||
