NGX50-AHXEX (2016)

Toyota C-Hr

Production Dec 2016 - Oct 2019
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

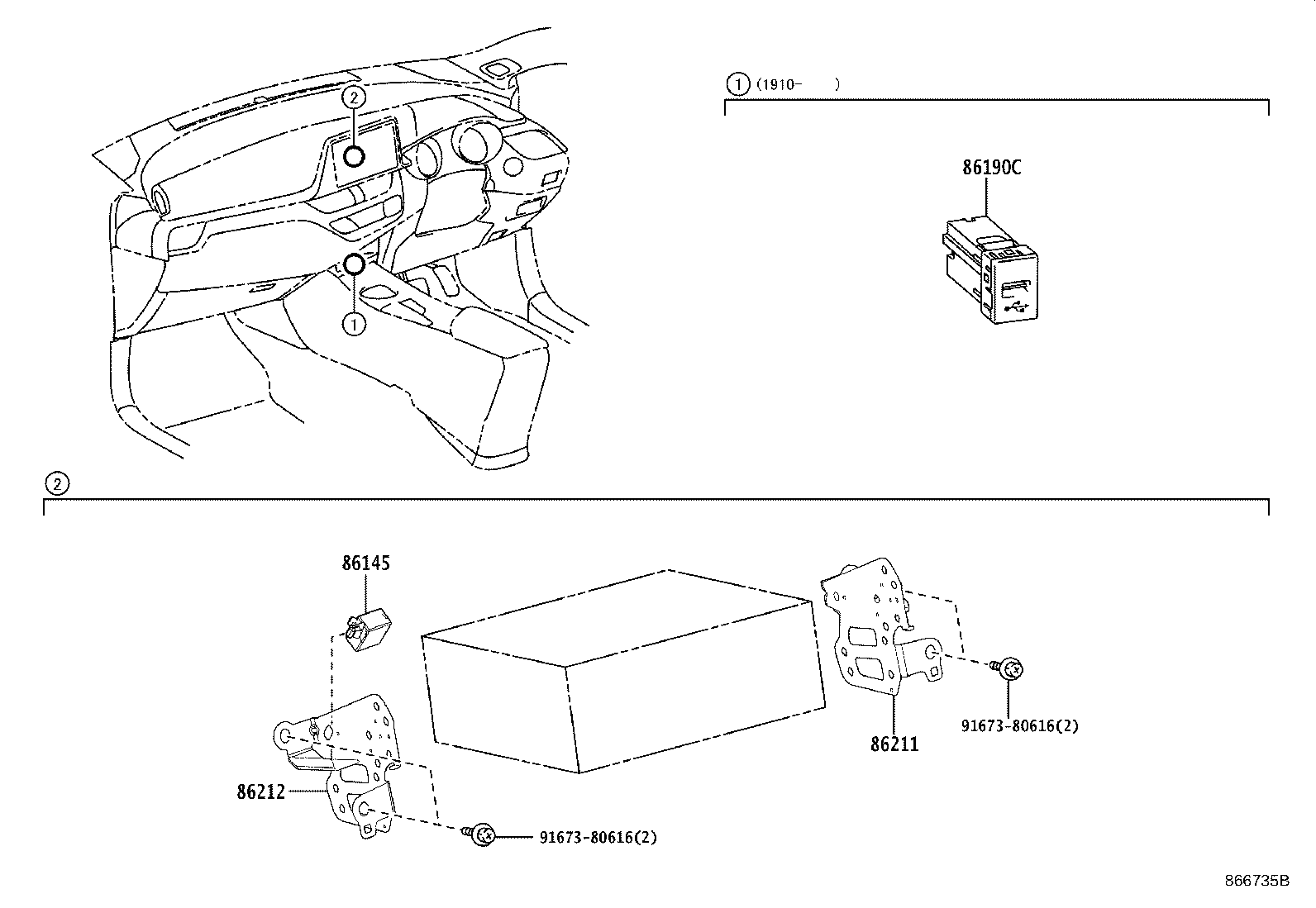

ILLUST NO. 1 OF 2(1612- )

Click highlighted areas on diagram

ﾚｼｰﾊﾞ

diagram 86145 86190C 86211 86212 9167380616 9167380616
Part # Description Qty Price
86145 - CONNECTOR, ANTENNA MALE
86145-52010

NGX10,50,ZYX10

 1
86211 - BRACKET, RADIO, NO.1
86211-10150

NGX10,50,ZYX10

 1
86212 - BRACKET, RADIO, NO.2
86212-10150

NGX10,50,ZYX10

 1
Common parts
91673-80616

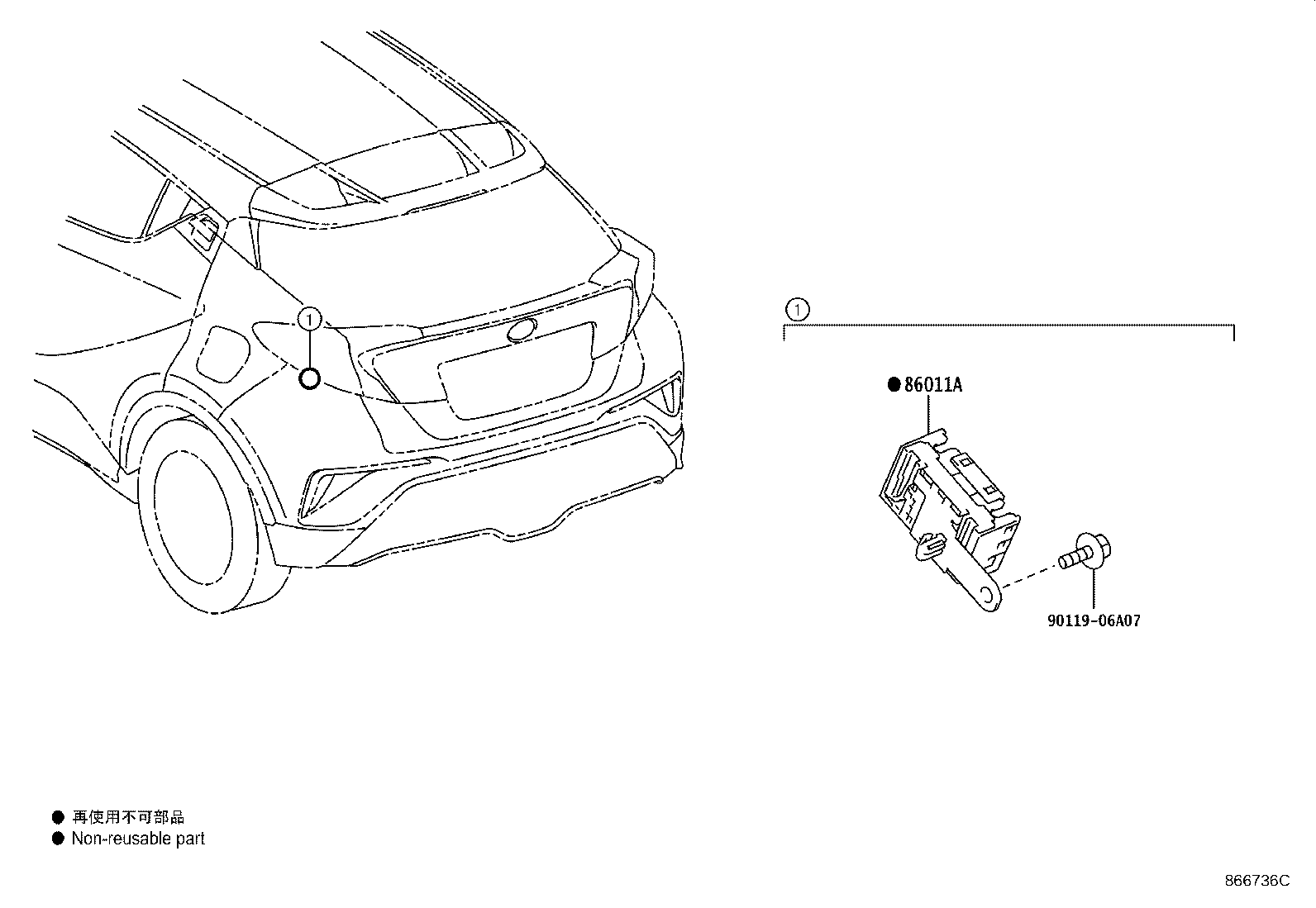

ILLUST NO. 2 OF 2(1612- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ

diagram 86011A 9011906A07
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04204

NGX10,50,ZYX10

 1
Common parts
90119-06A07
