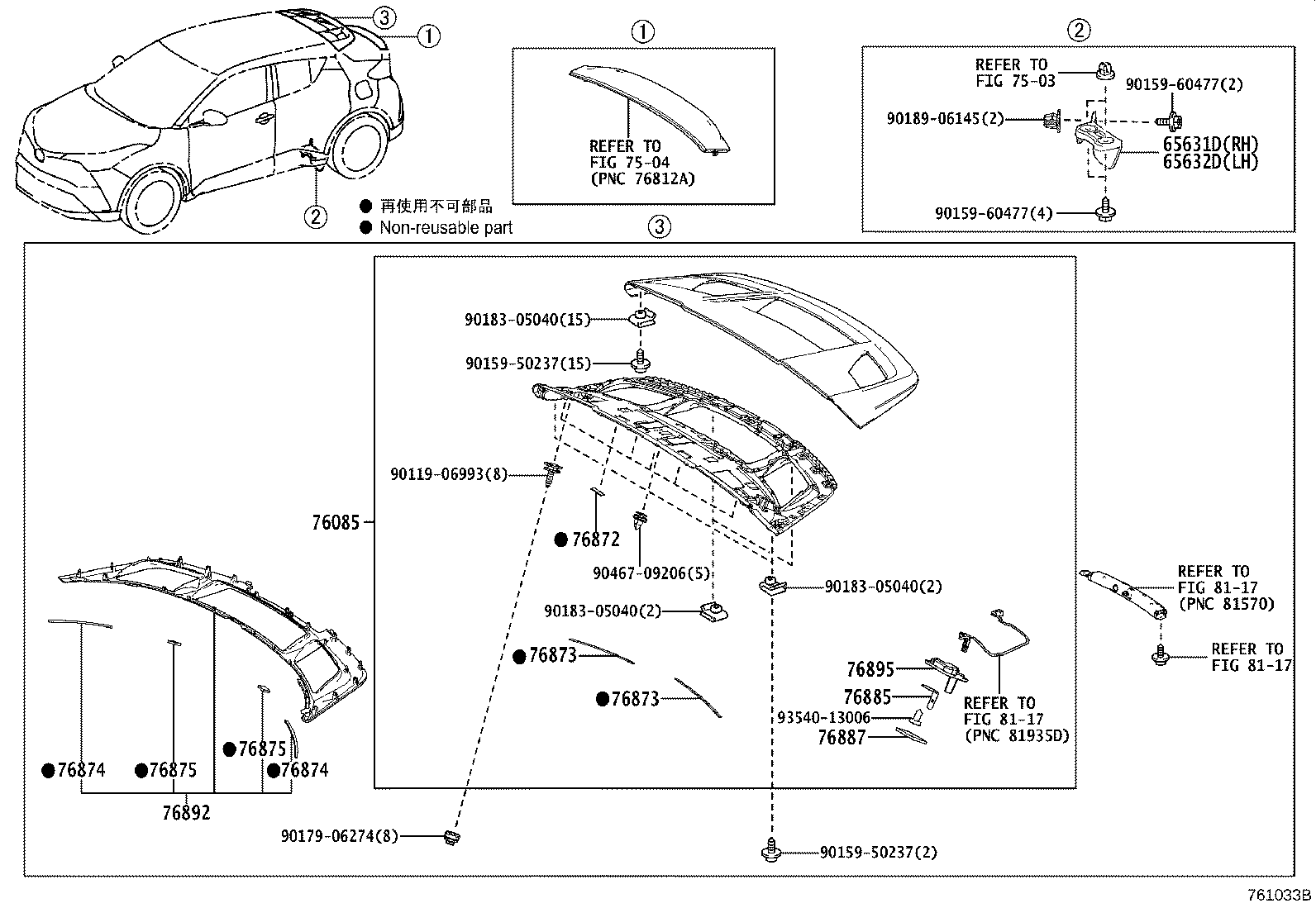

NGX50-AHXEX (2016)
Toyota C-Hr
(1612-1910)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-10010 |
NGX10,50,ZYX10 |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-10010 |
NGX10,50,ZYX10 |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-10902J0 |
NGX50,ZYX10 BLUE ME.,8T7 |
1 | ||
| 76085-10902A0 |
NGX10,50,ZYX10 WHITE PEARL CS.,070 |
1 | ||
| 76085-10902A1 |
NGX10,50,ZYX10 WHITE,2JU ,2NC ,2ND ,2NE ,2NG ,2NJ ,2PR |
1 | ||
| 76085-10902B0 |
NGX10,50,ZYX10..S,ST MEYAL STREAM ME.,1K0 |
1 | ||
| 76085-10902E0 |
NGX10,50,ZYX10..G,GT DK. BROWN M.M.,2TP ,4U3 |
1 | ||
| 76085-10902E0 |
NGX10,50,ZYX10..S,ST DK. BROWN M.M.,4U3 |
1 | ||
| 76085-10902C0 |
NGX10,50,ZYX10 BLACK MC.,209 |
1 | ||
| 76085-10902B0 |
NGX10,50,ZYX10..G,GT MEYAL STREAM ME.,1K0 ,2TA ,2TR |
1 | ||
| 76085-10902J1 |
NGX10,50,ZYX10 NEBULA BLUE ME.,8X2 |
1 | ||
| 76085-10902C2 |
NGX10,50,ZYX10..G,GT BLACKISH AGEHA GF.,221 |
1 | ||
| 76085-10902C1 |
NGX10,50,ZYX10 BLACK,2NA ,2NF ,2NH ,2NK ,2PQ ,2RW |
1 | ||
| 76085-10902D0 |
NGX10,50,ZYX10 RED MC.,3T3 |
1 | ||
| 76085-10902F0 |
NGX10,50,ZYX10 YELLOW,5A3 |
1 | ||
| 76085-10902G0 |
NGX10,50,ZYX10 RADIANT GREEN ME.,6W9 |
1 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-10050 |
NGX10,50,ZYX10 |
6 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-10070 |
NGX10,50,ZYX10 |
2 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-10070 |
NGX10,50,ZYX10 |
2 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-10060 |
NGX10,50,ZYX10 |
2 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-10060 |
NGX10,50,ZYX10 |
2 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-10040 |
NGX10,50,ZYX10 |
2 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-10040 |
NGX10,50,ZYX10 |
2 | ||
| 76885 - RETAINER, REAR SPOILER, NO.5 | ||||
| 76885-10010 |
NGX10,50,ZYX10 |
1 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-10050 |
NGX10,50,ZYX10 |
1 | ||
| 76892 - SPOILER, REAR NO.2 | ||||
| 76892-10010 |
NGX10,50,ZYX10 |
1 | ||
| 76895 - PROTECTOR, REAR SPOILER, NO.5 | ||||
| 76895-10010 |
NGX10,50,ZYX10 |
1 | ||
| Common parts | ||||
| 90119-06993 | ||||
| 90159-50237 | ||||
| 90159-60477 | ||||
| 90179-06274 | ||||
| 90183-05040 | ||||
| 90189-06145 | ||||
| 90467-09206 | ||||
| 93540-13006 | ||||
| Linked diagrams | ||||
| 7503 | ||||
| 7504 | ||||
| 8117 | ||||
