NGX50-AHXEX (2016)

Toyota C-Hr

Production Dec 2016 - Oct 2019
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

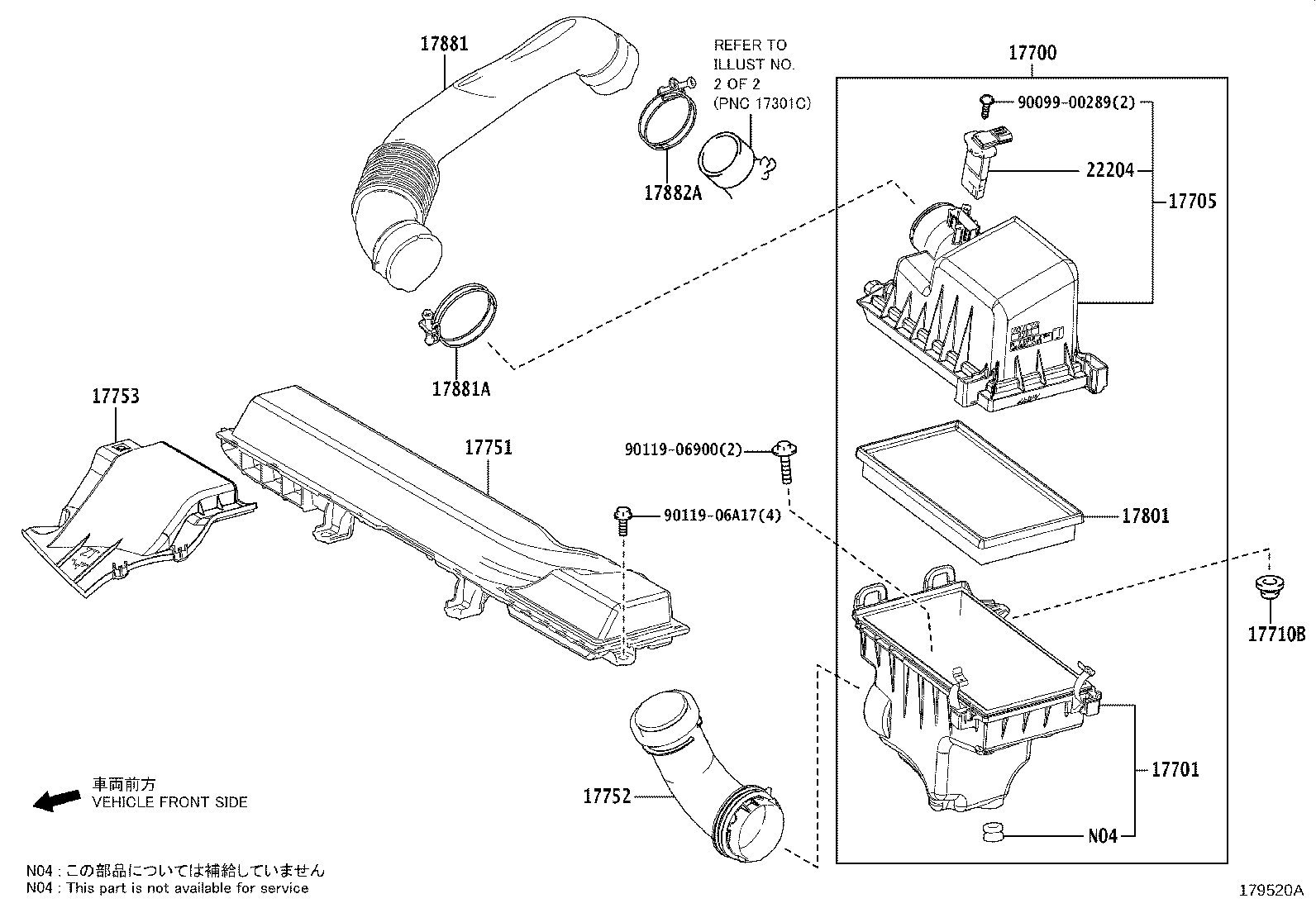

ILLUST NO. 1 OF 2(1612- )8NRFTS

Click highlighted areas on diagram

ｴｱｸﾘｰﾅｶﾞﾜ

diagram 17700 17701 17705 17710B 17751 17752 17753 17801 17881 17881A 17882A 22204 9009900289 9011906900 9011906A17
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-47180

8NRFTS..NGX10,50

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-47080

8NRFTS..NGX10,50

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-47140

8NRFTS..NGX10,50

 1
17710B - GROMMET
90480-18006

8NRFTS..NGX10,50

 1
17751 - INLET, AIR CLEANER, NO.1
17751-47090

8NRFTS..NGX10,50

 1
17752 - INLET, AIR CLEANER, NO.2
17752-47020

8NRFTS..NGX10,50

 1
17753 - INLET, AIR CLEANER, NO.3
17753-47010

8NRFTS..NGX10,50

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-77050

8NRFTS..NGX10,50

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-47080

8NRFTS..NGX10,50

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730

8NRFTS..NGX10,50

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

8NRFTS..NGX10,50

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75030

8NRFTS..NGX10,50

 1
Common parts
90099-00289
90119-06900
90119-06A17

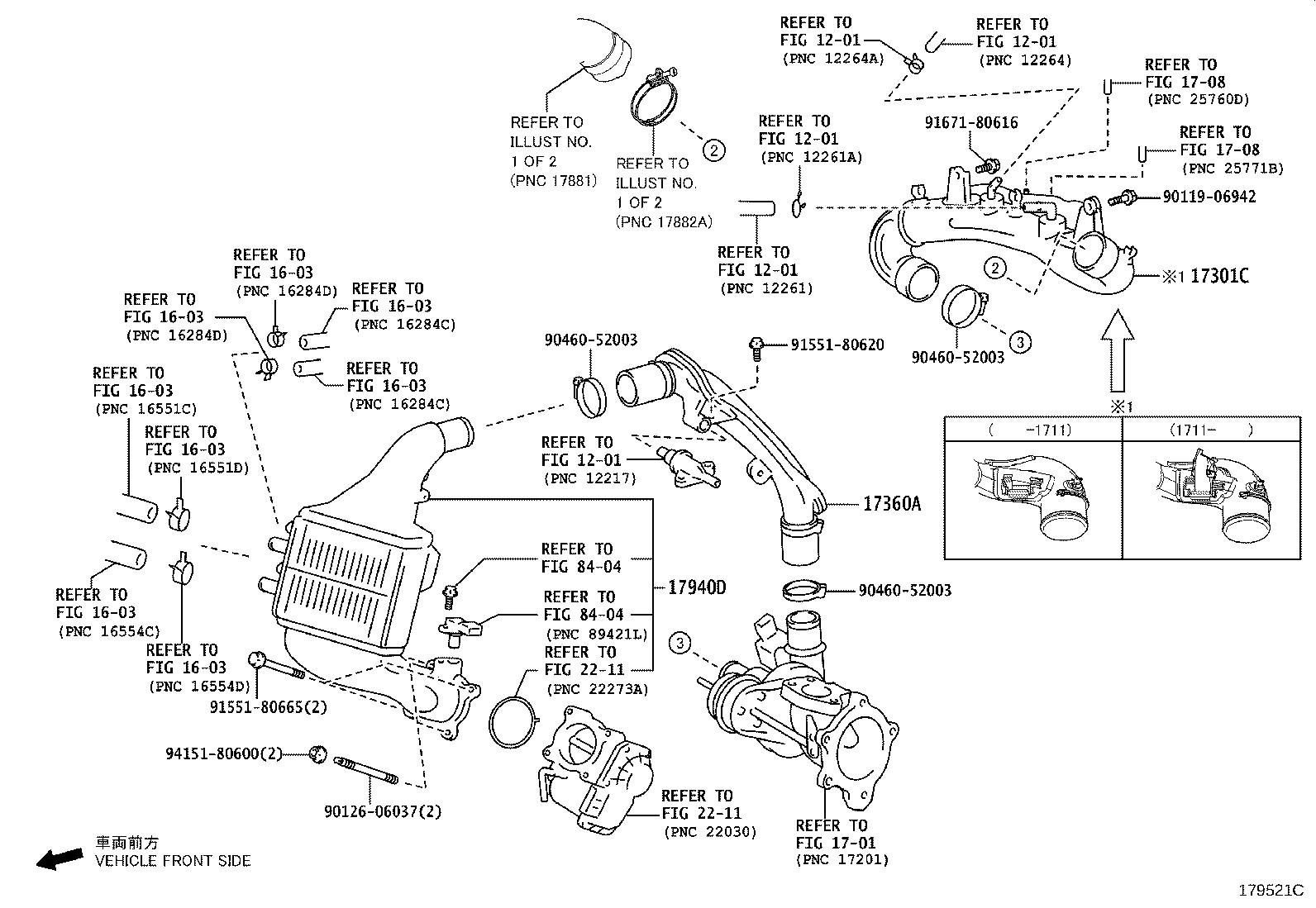

ILLUST NO. 2 OF 2(1612- )8NRFTS

Click highlighted areas on diagram

ｲﾝﾀｸｰﾗｶﾞﾜ

diagram 1201 1201 1201 1201 1201 1603 1603 1603 1603 1603 1603 1603 1603 1701 1708 1708 17301C 17360A 17940D 2211 2211 8404 8404 9011906942 9012606037 9046052003 9046052003 9046052003 9155180620 9155180665 9167180616 9415180600
Part # Description Qty Price
17301C - DUCT SUB-ASSY, AIR INLET, NO.1
17301-47010

8NRFTS..NGX50

 1
17301-47020

8NRFTS..NGX10,50

 1
17360A - TUBE ASSY, AIR
17360-47010

8NRFTS..NGX50

 1
17360-47011

8NRFTS..NGX10,50

 1
17940D - INTERCOOLER ASSY
17940-47021

8NRFTS..NGX10,50

 1
Common parts
90119-06942
90126-06037
90460-52003
91551-80620
91551-80665
91671-80616
94151-80600
Linked diagrams
1201
1603
1701
1708
2211
8404
