NGX50-AHXEX (2019)

Toyota C-Hr

Production Oct 2019 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 9(1910- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

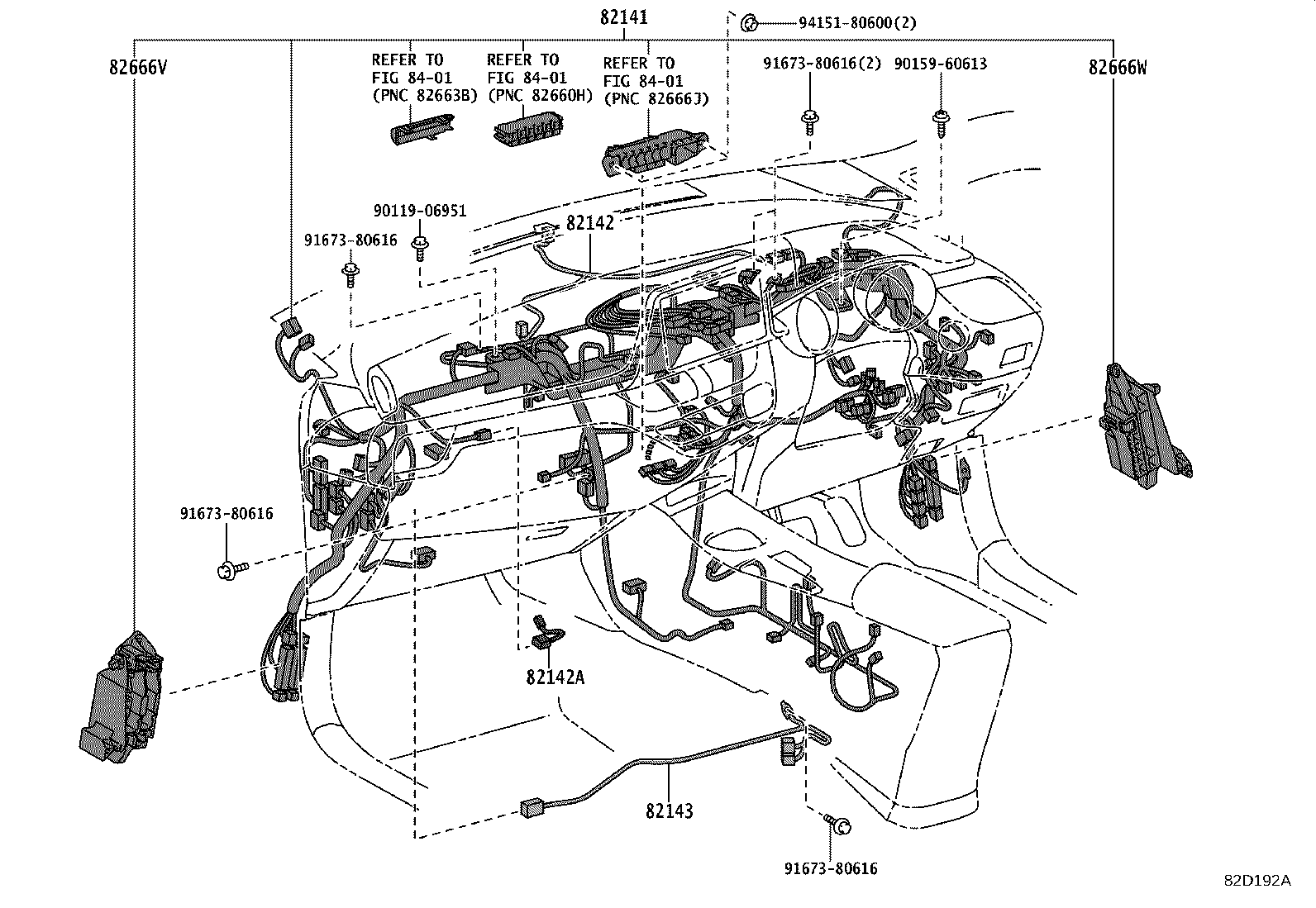

diagram 82141 82142 82142A 82143 82666V 82666W 8401 8401 8401 9011906951 9015960613 9167380616 9167380616 9167380616 9167380616 9415180600
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-10C80

NGX10,50..CVT..GT

ﾊﾞｯｸﾓﾆﾀ−有り(*BGM)

 1
82141-10C70

NGX10,50..CVT..GT

ﾊﾞｯｸﾓﾆﾀ−有り(*PVM)

 1
82141-10C90

NGX10,50..CVT..GT

 1
82141-10C81

NGX10,50..CVT..GT

 1
82141-10C71

NGX10,50..CVT..GT

ﾊﾞｯｸﾓﾆﾀ−有り(*PVM)

 1
82141-10N40

NGX10,50..CVT..GT

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−無し

 1
82141-10N40

NGX10,50..CVT..GT

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ&ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄ ｱﾗｰﾄ/ﾌﾞﾚｰｷ−有り(ﾊﾟｰｷﾝｸﾞｻﾎﾟｰﾄﾌﾞﾚｰｷ)&ﾊﾞｯｸﾓﾆﾀ−有り,国内ﾗｼﾞｵﾚｽ用

 1
82141-10N50

NGX10,50..CVT..GT

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り,国内ﾗｼﾞｵﾚｽ用

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-10050

NGX10,50,ZYX11..S,ST

 1
82142-10060

NGX10,50,ZYX11..G,GT

 1
82142-10060

NGX10,50,ZYX11..G,GT

ｼｰﾄﾋｰﾀ−有り

 1
82142-10050

NGX10,50,ZYX11..G,GT

 1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-60020

NGX10,50,ZYX11

 1
82666V - HOLDER, CONNECTOR NO.15
82666-10050

NGX10,50,ZYX11

 1
82666W - HOLDER, CONNECTOR NO.16
82666-10060

NGX10,50,ZYX11

 1
Common parts
90119-06951
90159-60613
91673-80616
94151-80600
Linked diagrams
8401
