NGX10-AHXNX (2019)

Toyota C-Hr

Production Oct 2019 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

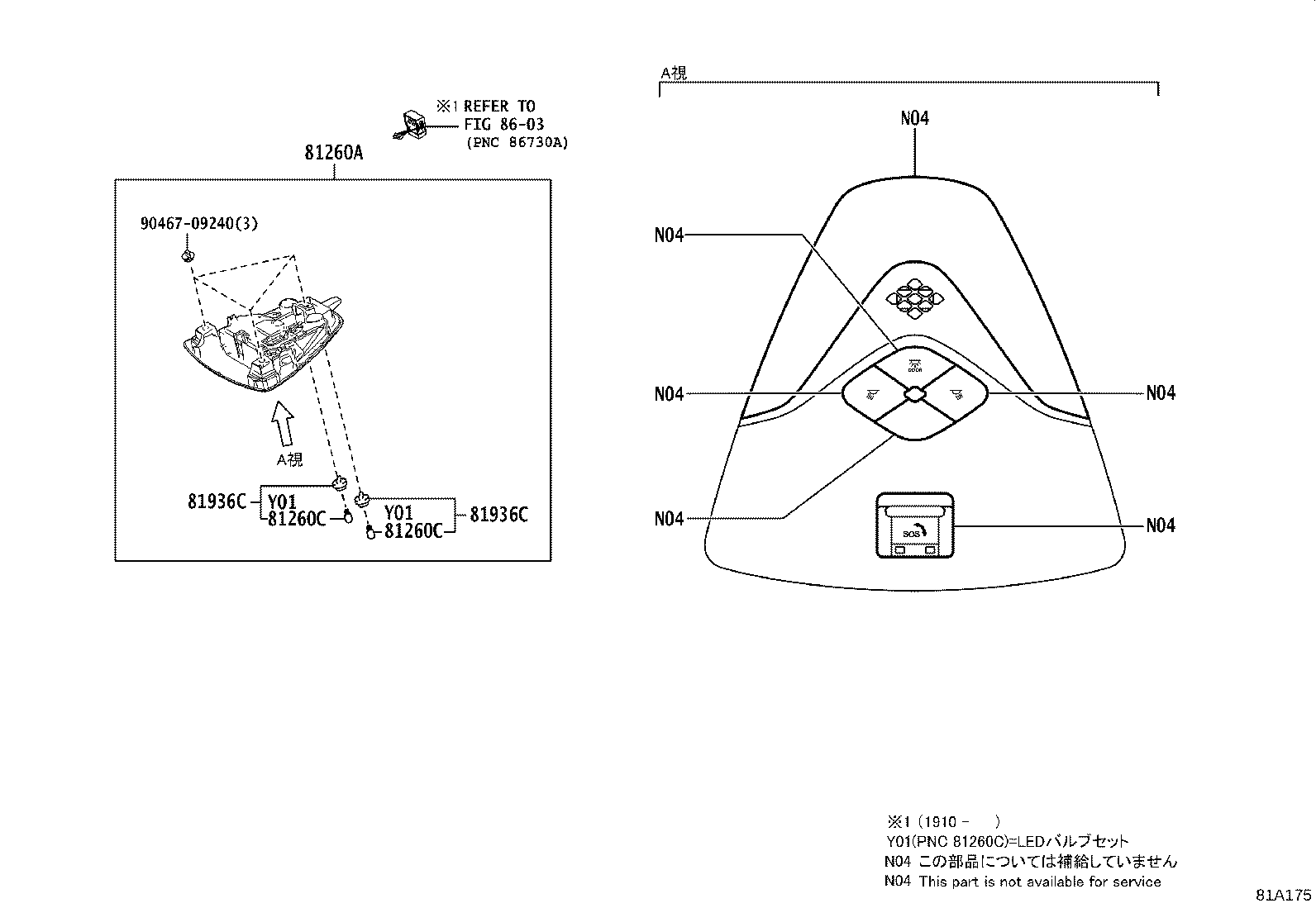

ILLUST NO. 2 OF 2(1910- )

Click highlighted areas on diagram

diagram 81260A 81260C 81260C 81936C 81936C 8603 9046709240
Part # Description Qty Price
81260A - LAMP ASSY, MAP
81208-10020C0

NGX10,50,ZYX11..S,ST

BLACK,TRIM2#

 1
81260-10130C0

NGX10,50,ZYX11..G,GT

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#,4#

 1
81208-10020C0

NGX10,50,ZYX11..G,GT

BLACK,TRIM2#,4#

 1
81260-10130C0

NGX10,50,ZYX11..S,ST

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

NGX10,50,ZYX11

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

NGX10,50,ZYX11

12V 5W

 2
81936C - BULB ASSY
81936-12160

NGX10,50,ZYX11

 2
81936C - BULB ASSY
81936-12160

NGX10,50,ZYX11

 2
Common parts
90467-09240
Linked diagrams
8603
