NGX10-AHXNX (2019)

Toyota C-Hr

Production Oct 2019 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

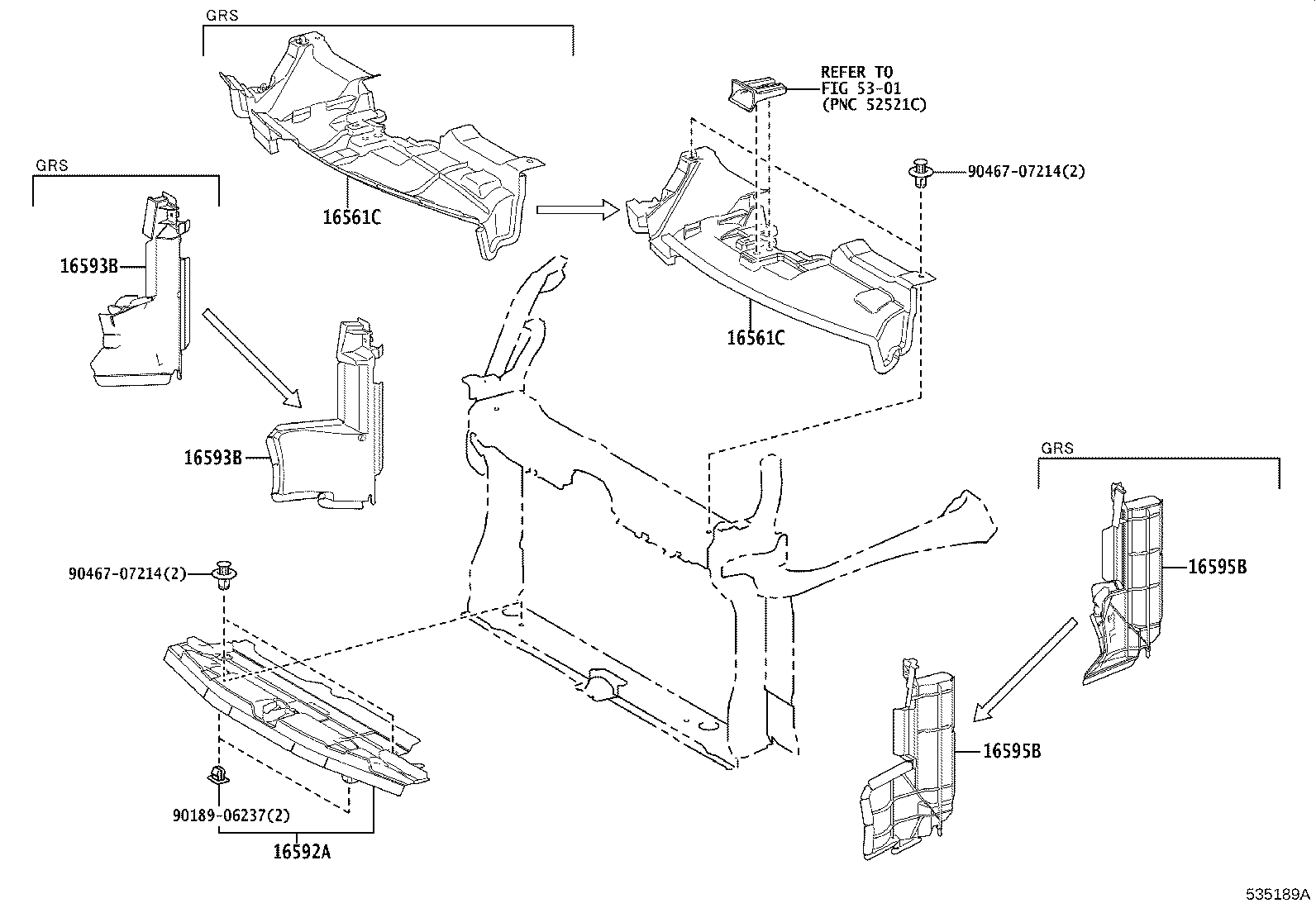

ILLUST NO. 1 OF 3(1910- )NGX10,50

Click highlighted areas on diagram

ｴｱｶﾞｲﾄﾞ

diagram 16561C 16561C 16592A 16593B 16593B 16595B 16595B 5301 9018906237 9046707214 9046707214
Part # Description Qty Price
16561C - SEAL, RADIATOR TO SUPPORT, NO.1
16561-37120

8NRFTS,2ZRFXE..NGX10,50,ZYX11

 1
16561-37140

8NRFTS..NGX10,50..CVT..ST

GR SPORT

 1
16561C - SEAL, RADIATOR TO SUPPORT, NO.1
16561-37120

8NRFTS,2ZRFXE..NGX10,50,ZYX11

 1
16561-37140

8NRFTS..NGX10,50..CVT..ST

GR SPORT

 1
16592A - GUIDE, RADIATOR AIR, NO.3
16592-37060

8NRFTS,2ZRFXE..NGX10,50,ZYX11

 1
16593B - GUIDE, RADIATOR AIR, NO.1 RH
16593-37100

8NRFTS..NGX10,50..CVT..ST

GR SPORT

 1
16593-37230

8NRFTS,2ZRFXE..NGX10,50,ZYX11

 1
16593B - GUIDE, RADIATOR AIR, NO.1 RH
16593-37100

8NRFTS..NGX10,50..CVT..ST

GR SPORT

 1
16593-37230

8NRFTS,2ZRFXE..NGX10,50,ZYX11

 1
16595B - GUIDE, RADIATOR AIR, NO.1 LH
16595-47050

8NRFTS..NGX10,50

 1
16595-47010

8NRFTS..NGX10,50..CVT..ST

GR SPORT

 1
16595B - GUIDE, RADIATOR AIR, NO.1 LH
16595-47050

8NRFTS..NGX10,50

 1
16595-47010

8NRFTS..NGX10,50..CVT..ST

GR SPORT

 1
Common parts
90189-06237
90467-07214
Linked diagrams
5301
