NGX10-AHXEX (2019)

Toyota C-Hr

Production Oct 2019 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1910- )

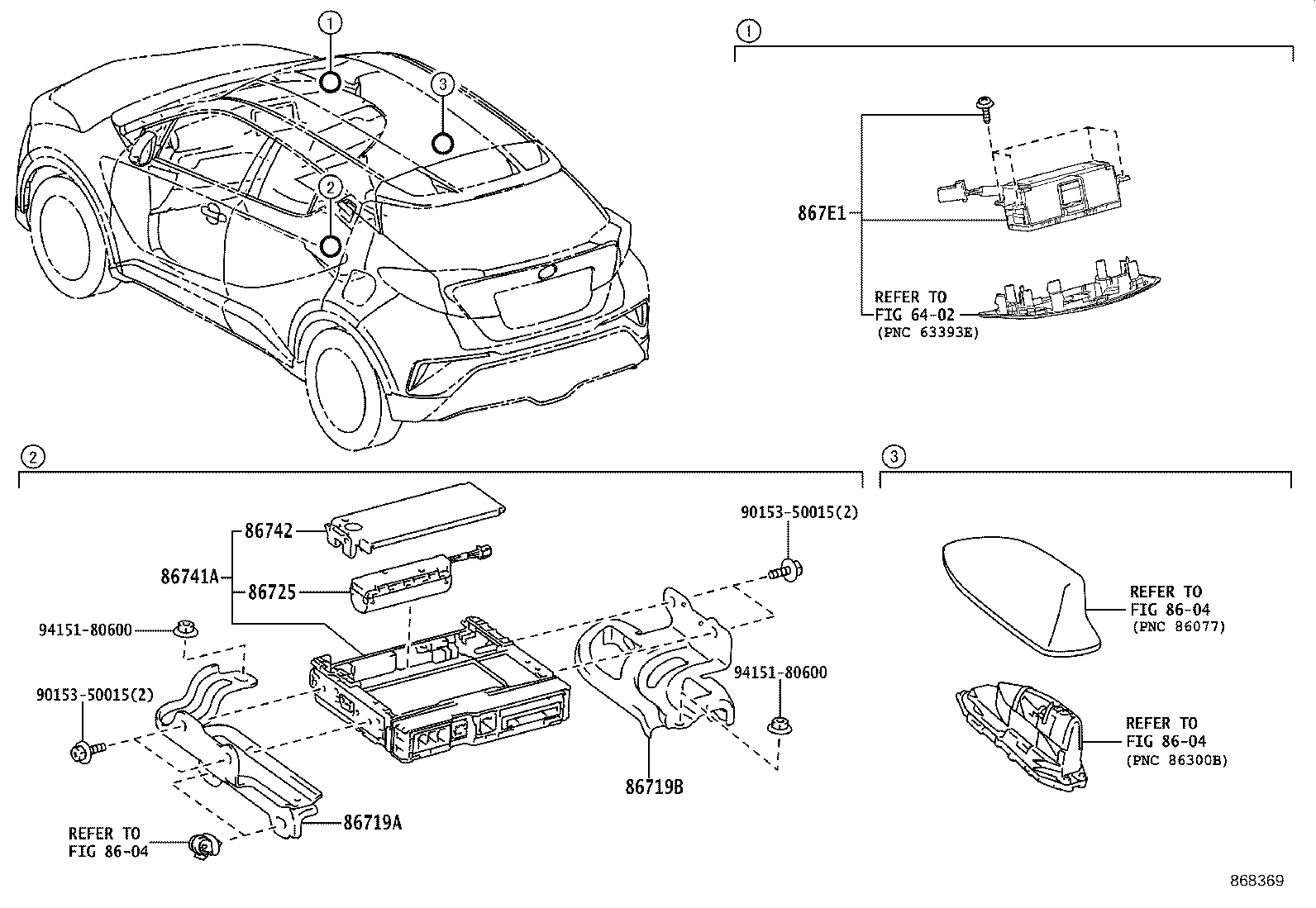

Click highlighted areas on diagram

diagram 6402 8604 8604 8604 86719A 86719B 86725 86741A 86742 867E1 9015350015 9015350015 9415180600 9415180600
Part # Description Qty Price
86719A - BRACKET, TELEPHONE NO.1
86719-10010

NGX10,50,ZYX11

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ

 1
86719-10010

NGX10,50,ZYX11

 1
86719B - BRACKET, TELEPHONE NO.2
86719-10020

NGX10,50,ZYX11

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ

 1
86719-10020

NGX10,50,ZYX11

 1
86725 - BATTERY, MOBILEPHONE
86725-26010

NGX10,50,ZYX11

 1
86725-26010

NGX10,50,ZYX11

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ

 1
86741A - TRANSCEIVER, TELEMATICS
86741-K0011

NGX10,50,ZYX11

 1
86741-10040

NGX10,50,ZYX11

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ

 1
86741-K0011

NGX10,50,ZYX11

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ

 1
86741-10040

NGX10,50,ZYX11

 1
86742 - COVER, TRANSCEIVER
86742-26010

NGX10,50,ZYX11

 1
86742-26010

NGX10,50,ZYX11

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ

 1
867E1 - BOX, COMMUNICATION TELEMATICS
867E0-10030C0

NGX10,50,ZYX11..S,ST

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#

 1
867E0-10030C0

NGX10,50,ZYX11..S,ST

BLACK,TRIM2#

 1
867E0-10030C0

NGX10,50,ZYX11..G,GT

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#,4#

 1
867E0-10030C0

NGX10,50,ZYX11..G,GT

BLACK,TRIM2#,4#

 1
Common parts
90153-50015
94151-80600
Linked diagrams
6402
8604
