NGX10-AHFNX (2019)

Toyota C-Hr

Production Oct 2019 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

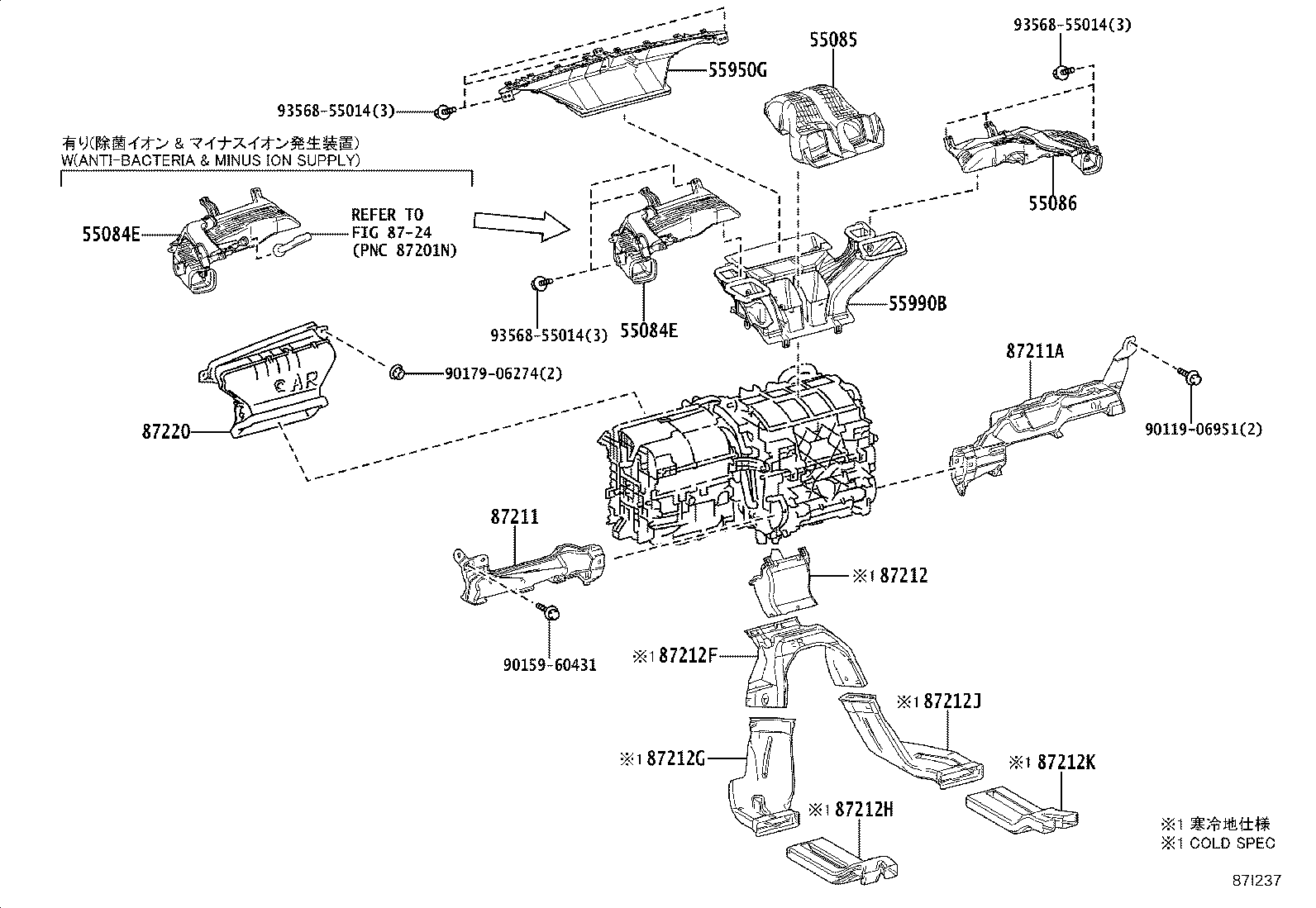

ILLUST NO. 2 OF 3(1910- )

Click highlighted areas on diagram

ｴｱﾀﾞｸﾄ

diagram 55084E 55084E 55085 55086 55950G 55990B 87211 87211A 87212 87212F 87212G 87212H 87212J 87212K 87220 8724 9011906951 9015960431 9017906274 9356855014 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55086-10100

NGX10,50,ZYX11..G,GT

ｼｰﾄﾋｰﾀ−有り

 1
55086-10090

NGX10,50,ZYX11..G,GT

 1
55086-10090

NGX10,50,ZYX11..S,ST

 1
55086-10100

NGX10,50,ZYX11..G,GT

 1
55086-10100

ZYX11..S;NGX10..6F..ST

ｼｰﾄﾋｰﾀ−有り

 1
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55086-10100

NGX10,50,ZYX11..G,GT

ｼｰﾄﾋｰﾀ−有り

 1
55086-10090

NGX10,50,ZYX11..G,GT

 1
55086-10090

NGX10,50,ZYX11..S,ST

 1
55086-10100

NGX10,50,ZYX11..G,GT

 1
55086-10100

ZYX11..S;NGX10..6F..ST

ｼｰﾄﾋｰﾀ−有り

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-10060

NGX10,50,ZYX11

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55084-10030

NGX10,50,ZYX11

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-10070

NGX10,50,ZYX11

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-10010

NGX10,50,ZYX11

 1
87211 - DUCT, AIR, NO.1
87211-47180

NGX10,50,ZYX11

 1
87211A - DUCT, AIR, NO.2
87211-10120

NGX10,50,ZYX11

 1
87212 - DUCT, AIR, REAR NO.1
87413-10060

NGX10,50,ZYX11

寒冷地仕様

 1
87212F - DUCT, AIR, REAR NO.2
87215-47040

NGX10,50,ZYX11

寒冷地仕様

 1
87212G - DUCT, AIR, REAR NO.3
87213-47050

NGX10,50,ZYX11

寒冷地仕様

 1
87212H - DUCT, AIR, REAR NO.4
87217-10060

NGX10,50,ZYX11

寒冷地仕様

 1
87212J - DUCT, AIR, REAR NO.5
87212-47040

NGX10,50,ZYX11

寒冷地仕様

 1
87212K - DUCT, AIR, REAR NO.6
87216-10010

NGX10,50,ZYX11

寒冷地仕様

 1
87220 - DUCT ASSY, AIR
87220-10070

NGX10,50,ZYX11

 1
Common parts
90119-06951
90159-60431
90179-06274
93568-55014
Linked diagrams
8724
