NGX10-AHFNX (2019)

Toyota C-Hr

Production Oct 2019 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )

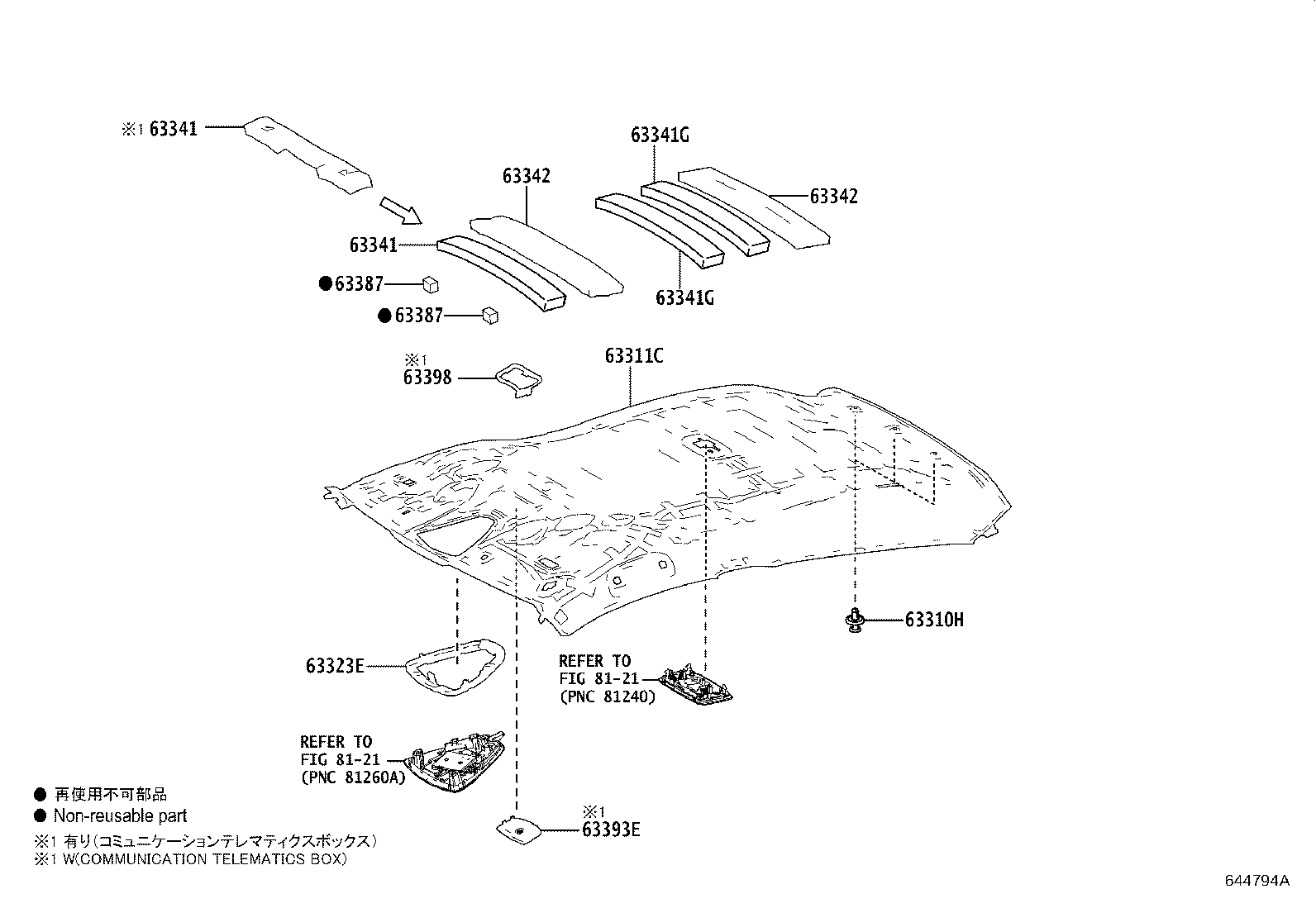

Click highlighted areas on diagram

diagram 63310H 63311C 63323E 63341 63341 63341G 63341G 63342 63342 63387 63387 63393E 63398 8121 8121
Part # Description Qty Price
63310H - CLIP(FOR ROOF HEADLINING)
63399-10010C0

NGX10,50,ZYX11..S,ST

BLACK,TRIM2#

 3
63399-10010C0

NGX10,50,ZYX11..G,GT

BLACK,TRIM2#,4#

 3
63311C - HEADLINING, ROOF
63311-10230C0

NGX10,50,ZYX11..G,GT

BLACK,TRIM2#,4#

 1
63311-10240C0

NGX10,50,ZYX11..S,ST

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,日本向け,BLACK,TRIM2#

 1
63311-10230C0

NGX10,50,ZYX11..G,GT

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,日本向け,BLACK,TRIM2#,4#

 1
63311-10250C0

NGX10,50,ZYX11..G,GT

BLACK,TRIM2#,4#

 1
63311-10260C0

NGX10,50,ZYX11..S,ST

BLACK,TRIM2#

 1
63311-10240C0

NGX10,50,ZYX11..S,ST

BLACK,TRIM2#

 1
63323E - CASE, HEADLINING LAMP
63323-10010

NGX10,50,ZYX11

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-10100

NGX10,50,ZYX11

 1
63341-10090

NGX10,50,ZYX11

 1
63341-10090

NGX10,50,ZYX11

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,日本向け

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-10100

NGX10,50,ZYX11

 1
63341-10090

NGX10,50,ZYX11

 1
63341-10090

NGX10,50,ZYX11

ﾊﾟｯｹｰｼﾞｵﾌﾟｼｮﾝ1−日本向けﾗｼﾞｵﾚｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,日本向け

 1
63341G - PAD, ROOF SILENCER
63341-10090

NGX10,50,ZYX11

 2
63341G - PAD, ROOF SILENCER
63341-10090

NGX10,50,ZYX11

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-10050

NGX10,50,ZYX11

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-10050

NGX10,50,ZYX11

 2
63387 - PAD, ROOF HEADLINING FORMING
63387-52010

NGX10,50,ZYX11

 2
63387 - PAD, ROOF HEADLINING FORMING
63387-52010

NGX10,50,ZYX11

 2
63393E - TRIM, ROOF HEADLINING
63393-10020C0

NGX10,50,ZYX11..S,ST

BLACK,TRIM2#

 1
63393-10020C0

NGX10,50,ZYX11..G,GT

BLACK,TRIM2#,4#

 1
63398 - PLATE, ROOF HEADLINING SUPPORT
63398-10050

NGX10,50,ZYX11

 1
Linked diagrams
8121
