JCG15-CEPVH (2001)

Toyota Brevis

Production Oct 2001 - Jun 2007
Engine 1JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0203)JCG10,11 ; (0203- )

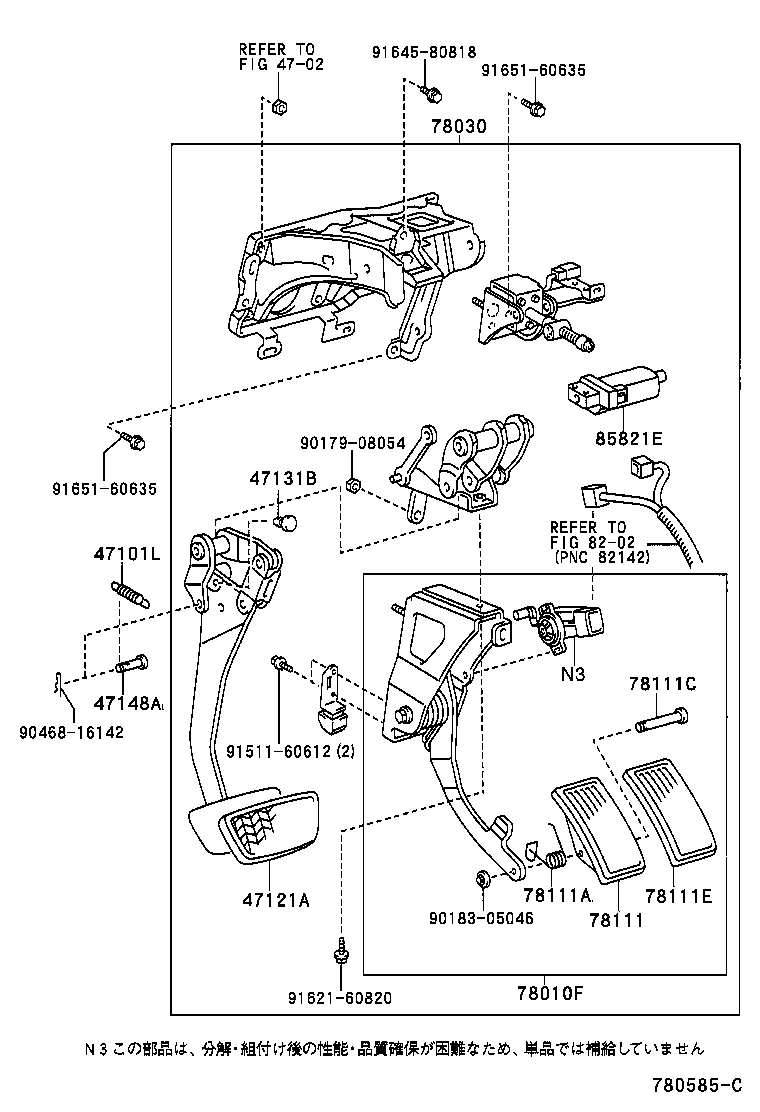

Click highlighted areas on diagram

ｶﾄﾞｳｼｷ ﾍﾟﾀﾞﾙ

diagram 4702 47101L 47121A 47131B 47148A 78010F 78030 78111 78111A 78111C 78111E 8202 85821E 9017908054 9018305046 9046816142 9151160612 9162160820 9164580818 9165160635 9165160635
Part # Description Qty Price
47101L - SPRING(FOR BRAKE PEDAL RETURN)
90507-15003

JCG1#

 1
47121A - PAD, BRAKE PEDAL
47121-50020

JCG1#

 1
47131B - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

JCG1#

 1
47148A - PIN(FOR BRAKE MASTER CYLINDER PUSH ROD)
47148-35010

JCG1#

 1
78010F - PEDAL ASSY, ACCELERATOR
78010-51051

JCG1#

ｶﾄﾞｳｼｷ ﾍﾟﾀﾞﾙ

 1
78010-51070

JCG10,15

 1
78030 - PEDAL ASSY, ACCELERATOR & BRAKE
78030-51011

JCG1#

 1
78111 - PEDAL, ACCELERATOR
78111-22020

JCG1#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90905-08002

JCG1#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90241-05022

JCG1#

 1
78111E - PAD, ACCELERATOR PEDAL
78117-51010

JCG1#

 1
85821E - MOTOR, ADJUSTER PEDAL
85820-30510

JCG1#

 1
Common parts
90179-08054
90183-05046
90468-16142
91511-60612
91621-60820
91645-80818
91651-60635
Linked diagrams
4702
8202
