Toyota Brevis JCG10 WIRING & CLAMP

JCG10-CEAVH (2001)

Toyota Brevis

Production May 2001 - Jun 2007

Engine 1JZFSE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

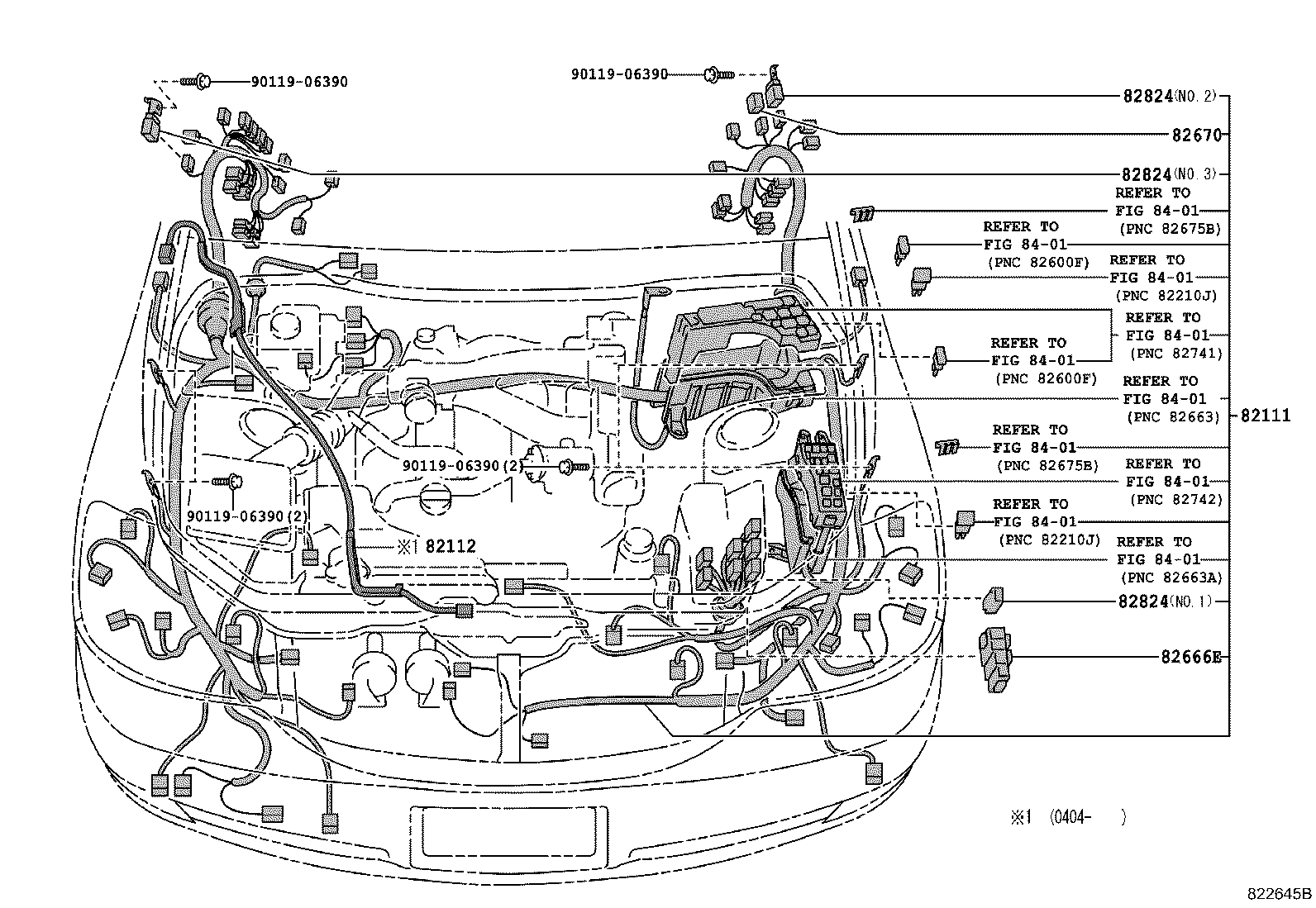

ILLUST NO. 1 OF 8(0105- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-51120	JCG10 ｱﾘ(ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ)	05/2001 - 04/2004	1
82111-51150	JCG10 ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)	05/2001 - 04/2004	1
82111-51121	JCG10 ｱﾘ(ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ)	04/2004 - 12/2005	1
82111-51140	JCG10	05/2001 - 04/2004	1
82111-51130	JCG10 ｱﾘ(ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ & ﾚ-ﾀﾞ- ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)	05/2001 - 04/2004	1
82111-51141	JCG10	04/2004 - 12/2005	1
82111-51131	JCG10 ｱﾘ(ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ & ﾚ-ﾀﾞ- ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)	04/2004 - 12/2005	1
82111-51132	JCG10 ｱﾘ(ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ & ﾚ-ﾀﾞ- ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)	12/2005 - 12/2999	1
82111-51122	JCG10 ｱﾘ(ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ)	12/2005 - 12/2999	1
82111-51151	JCG10 ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)	04/2004 - 12/2005	1
82111-51142	JCG10	12/2005 - 12/2999	1
82111-51152	JCG10 ｱﾘ(ﾚ-ﾀﾞ- ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)	12/2005 - 12/2999	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-51020	JCG1#	04/2004 - 12/2999	1
82666E - HOLDER, CONNECTOR NO.6
82666-30610	JCG1#	05/2001 - 12/2999	2
82670 - BLOCK ASSY, JUNCTION, NO.1
82670-2B010	JCG1#	05/2001 - 12/2999	2
82824 - CONNECTOR, WIRING HARNESS
82824-48010	JCG1# NO.3	05/2001 - 12/2999	1
82824-12210	JCG1# NO.1	05/2001 - 12/2999	1
82824-20130	JCG1# NO.2	05/2001 - 12/2999	1
82824-51020	JCG10,15	04/2004 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-48010	JCG1# NO.3	05/2001 - 12/2999	1
82824-12210	JCG1# NO.1	05/2001 - 12/2999	1
82824-20130	JCG1# NO.2	05/2001 - 12/2999	1
82824-51020	JCG10,15	04/2004 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-48010	JCG1# NO.3	05/2001 - 12/2999	1
82824-12210	JCG1# NO.1	05/2001 - 12/2999	1
82824-20130	JCG1# NO.2	05/2001 - 12/2999	1
82824-51020	JCG10,15	04/2004 - 12/2999	1
Common parts
90119-06390
Linked diagrams
8401

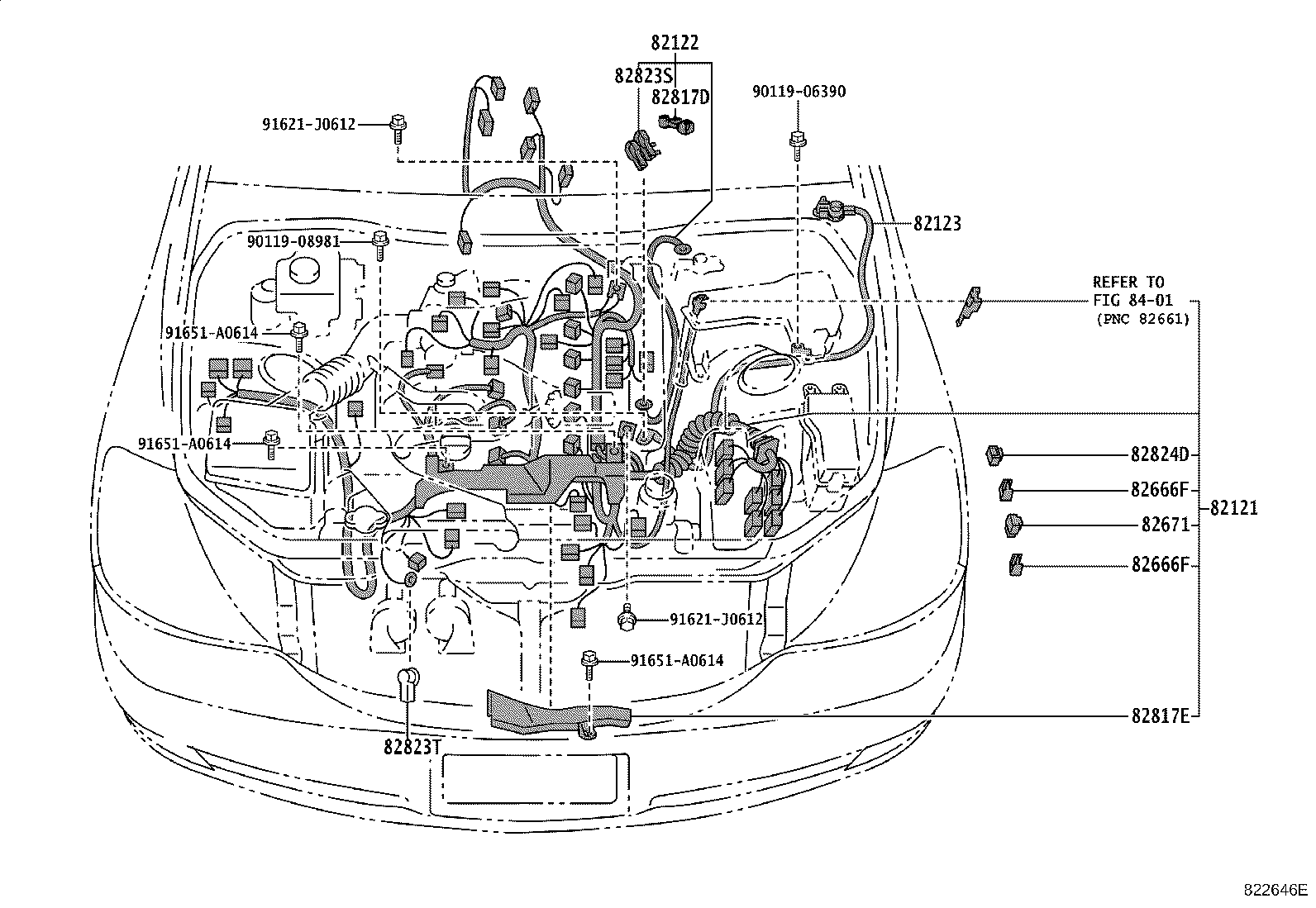

ILLUST NO. 2 OF 8(0105- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-2A631	JCG10	05/2001 - 12/2999	1
82122 - WIRE, ENGINE, NO.2
82122-51130	JCG10	05/2001 - 12/2999	1
82122-51140	JCG10 ｶﾝﾚｲﾁｼﾖｳ	05/2001 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-51020	JCG10 ｶﾝﾚｲﾁｼﾖｳ & ｳｴﾙｷﾔﾌﾞｼﾖｳ	05/2001 - 12/2999	1
82123-51010	JCG10,11	05/2001 - 12/2999	1
82666F - HOLDER, CONNECTOR NO.7
82666-30670	JCG1#	05/2001 - 12/2999	2
82666F - HOLDER, CONNECTOR NO.7
82666-30670	JCG1#	05/2001 - 12/2999	2
82671 - BLOCK, JUNCTION
82671-30340	JCG1#	05/2001 - 12/2999	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-3K670	JCG1#	05/2001 - 12/2999	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-3K610	JCG10	05/2001 - 12/2999	1
82823S - CAP, STARTER TERMINAL
82823-20080	JCG10,15	05/2001 - 06/2007	1
82823T - CAP, ALTERNATOR TERMINAL
82823-24030	JCG1#	05/2001 - 06/2007	1
82824D - CONNECTOR, WIRING HARNESS
82824-50110	JCG1#	05/2001 - 12/2999	1
Common parts
90119-06390
90119-08981
91621-J0612
91651-A0614
Linked diagrams
8401

ILLUST NO. 3 OF 8(0105- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-51170	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51170	05/2001 - 04/2004	1
82141-51180	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51180	05/2001 - 04/2004	1
82141-51200	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51200	05/2001 - 04/2004	1
82141-51210	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51210	05/2001 - 04/2004	1
82141-51220	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51220	05/2001 - 04/2004	1
82141-51250	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51250	05/2001 - 04/2004	1
82141-51240	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51240	05/2001 - 04/2004	1
82141-51190	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51190	05/2001 - 04/2004	1
82141-51181	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51181	04/2004 - 12/2005	1
82141-51230	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51230	05/2001 - 04/2004	1
82141-51260	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51260	05/2001 - 04/2004	1
82141-51270	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51270	05/2001 - 04/2004	1
82141-51201	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51201	04/2004 - 12/2005	1
82141-51191	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51191	04/2004 - 12/2005	1
82141-51231	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51231	04/2004 - 12/2005	1
82141-51211	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51211	04/2004 - 12/2005	1
82141-51171	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51171	04/2004 - 12/2005	1
82141-51241	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51241	04/2004 - 12/2005	1
82141-51251	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51251	04/2004 - 12/2005	1
82141-51221	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51221	04/2004 - 12/2005	1
82141-51261	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51261	04/2004 - 12/2005	1
82141-51271	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51271	04/2004 - 12/2005	1
82141-51212	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51212	12/2005 - 12/2999	1
82141-51252	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51252	12/2005 - 12/2999	1
82141-51242	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51242	12/2005 - 12/2999	1
82141-51262	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51262	12/2005 - 12/2999	1
82141-51272	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51272	12/2005 - 12/2999	1
82141-51202	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51202	12/2005 - 12/2999	1
82141-51182	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-51182	12/2005 - 12/2999	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-51020	JCG10,11	05/2001 - 06/2007	1
82666C - HOLDER, CONNECTOR NO.4
82666-51030	JCG1#	05/2001 - 12/2999	1
82666D - HOLDER, CONNECTOR NO.5
82666-51040	JCG1#	04/2004 - 12/2999	1
82671J - BLOCK, JUNCTION, NO.2
82671-51010	JCG1#	05/2001 - 12/2999	1
82734 - BLOCK, CENTER JUNCTION
82734-51010	JCG1#	05/2001 - 12/2999	1
Common parts
90119-06390
90179-06288
Linked diagrams
8401

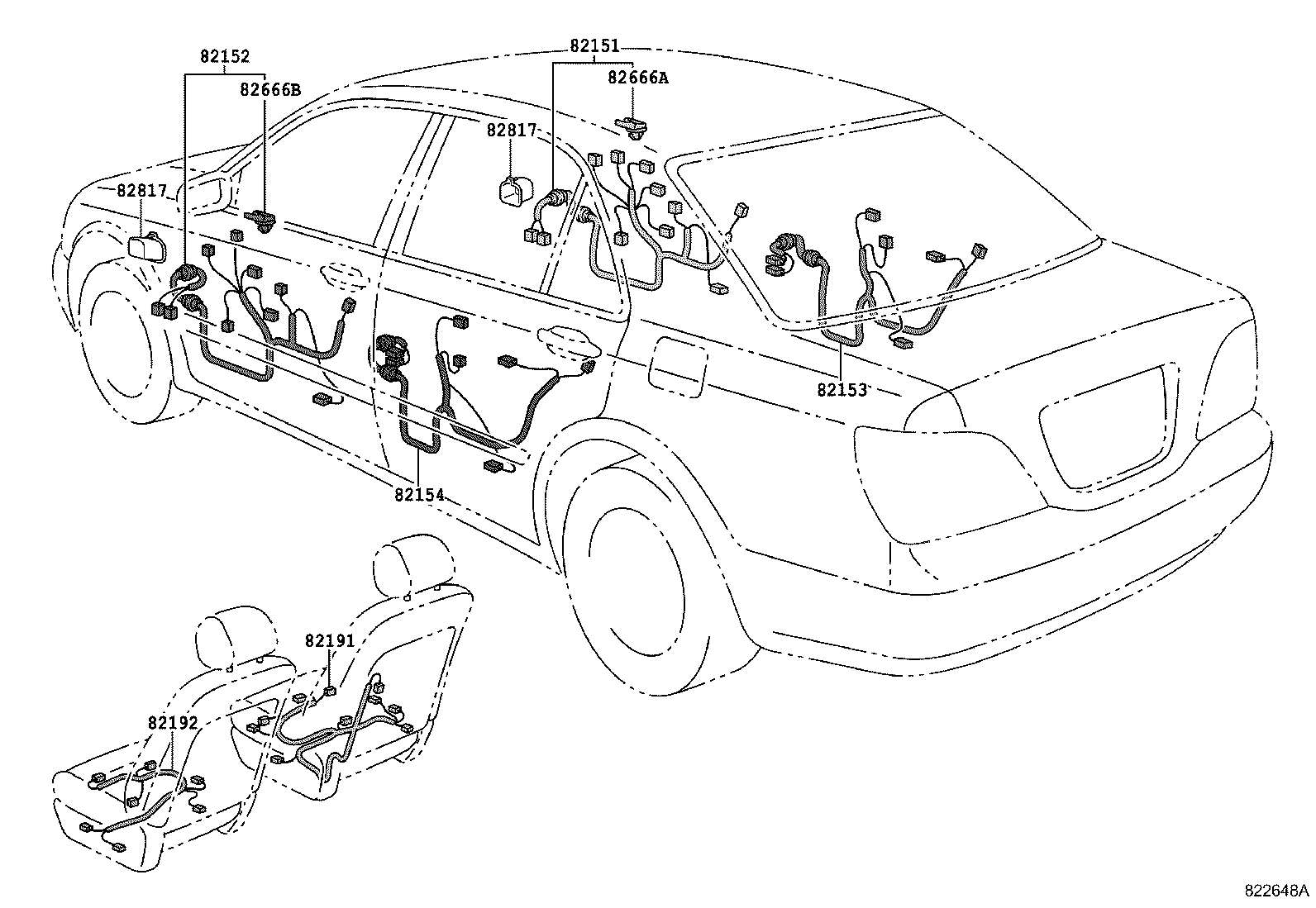

ILLUST NO. 4 OF 8(0105- )

Click highlighted areas on diagram

ｼ-ﾄ & ﾄﾞｱ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-51050	JCG10,15	05/2001 - 12/2999	1
82151-51060	JCG10,11 ｱﾘ(ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ)	05/2001 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-51030	JCG1#	05/2001 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-51040	JCG1#	05/2001 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82154-51040	JCG1#	05/2001 - 12/2999	1
82191 - WIRE, FRONT SEAT, RH
82191-51012	JCG10,15	05/2001 - 06/2007	1
82191-51040	JCG10,11 ｱﾘ(ﾒﾓﾘﾊﾟﾜ-ｼ-ﾄ)	05/2001 - 06/2007	1
82192 - WIRE, FRONT SEAT, LH
82192-51020	JCG1#	05/2001 - 06/2007	1
82666A - HOLDER, CONNECTOR NO.2
82666-22080	JCG1#	05/2001 - 12/2999	1
82666B - HOLDER, CONNECTOR NO.3
82666-22080	JCG1#	05/2001 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-51070	JCG1#	05/2001 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-51070	JCG1#	05/2001 - 12/2999	1

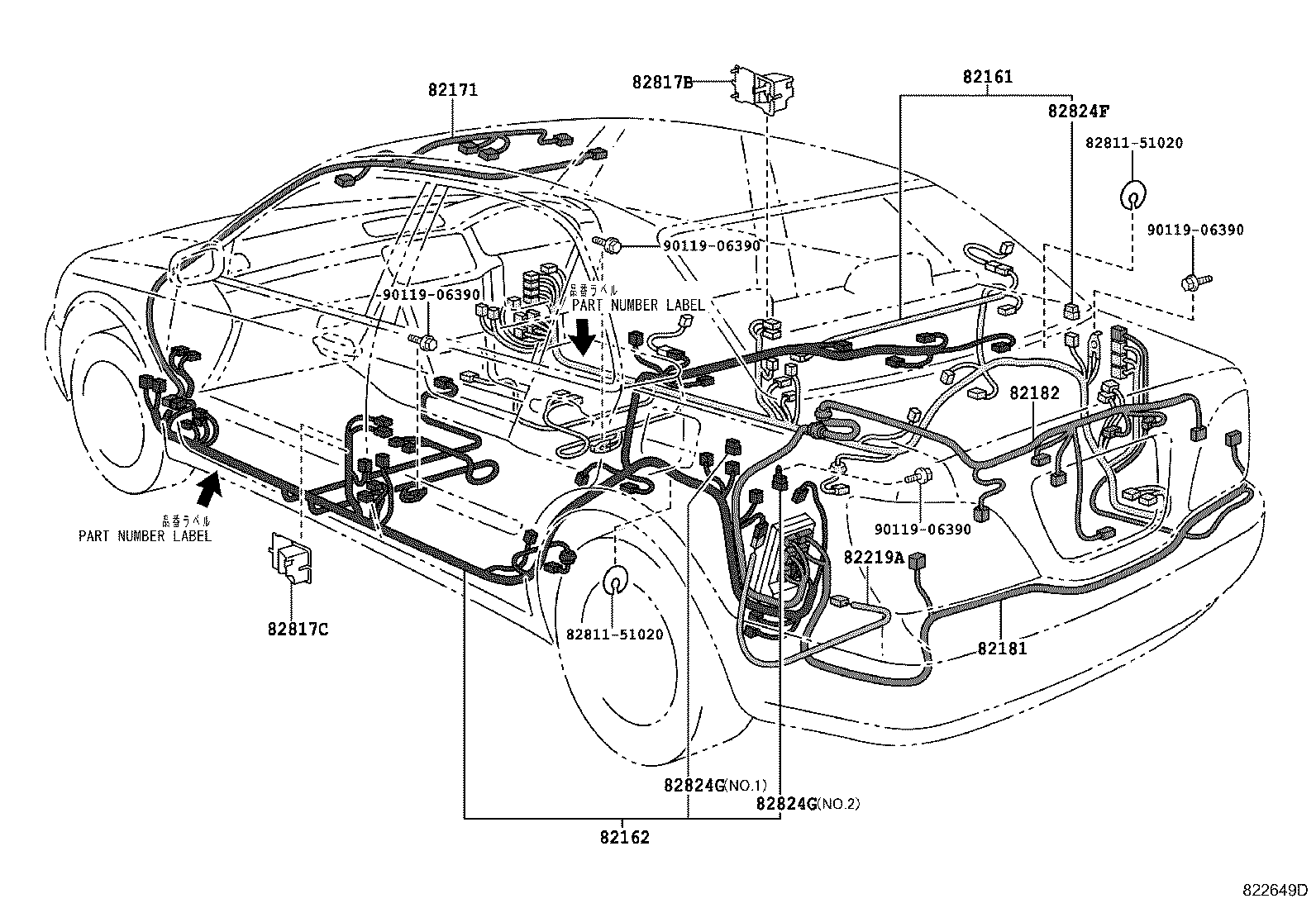

ILLUST NO. 5 OF 8(0105- )

Click highlighted areas on diagram

ﾌﾛｱ,ﾙ-ﾌ & ﾗﾂｹﾞ-ｼﾞ

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-51100	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-51100	05/2001 - 03/2002	1
82161-51090	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-51090	05/2001 - 06/2001	1
82161-51160	JCG10,15 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-51160	05/2001 - 03/2002	1
82161-51091	JCG10,15 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-51091	06/2001 - 03/2002	1
82161-51162	JCG10,15 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-51162	04/2004 - 12/2999	1
82161-51111	JCG10,15 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-51111	03/2002 - 12/2999	1
82161-51170	JCG1# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-51170	05/2001 - 03/2002	1
82161-51101	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-51101	03/2002 - 12/2005	1
82161-51172	JCG1# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-51172	04/2004 - 12/2999	1
82161-51161	JCG10,15 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-51161	03/2002 - 04/2004	1
82161-51171	JCG1# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-51171	03/2002 - 04/2004	1
82161-51092	JCG10,15 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-51092	03/2002 - 12/2999	1
82161-51110	JCG1# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-51110	05/2001 - 03/2002	1
82162 - WIRE, FLOOR, NO.2
82162-51080	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51080	05/2001 - 03/2002	1
82162-51100	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51100	05/2001 - 03/2002	1
82162-51090	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51090	05/2001 - 03/2002	1
82162-51120	JCG10,11 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51120	05/2001 - 03/2002	1
82162-51121	JCG10,11 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51121	03/2002 - 12/2005	1
82162-51092	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51092	04/2004 - 12/2005	1
82162-51101	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51101	03/2002 - 12/2005	1
82162-51081	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51081	03/2002 - 11/2003	1
82162-51110	JCG10,11 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51110	05/2001 - 03/2002	1
82162-51091	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51091	03/2002 - 04/2004	1
82162-51102	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51102	12/2005 - 12/2999	1
82162-51111	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51111	03/2002 - 04/2004	1
82162-51093	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51093	12/2005 - 12/2999	1
82162-51112	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51112	04/2004 - 12/2005	1
82162-51113	JCG10 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51113	12/2005 - 12/2999	1
82162-51122	JCG10,11 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-51122	12/2005 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-51020	JCG1#	05/2001 - 12/2005	1
82171-51030	JCG1# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	05/2001 - 12/2005	1
82171-51021	JCG1#	12/2005 - 06/2007	1
82171-51031	JCG1# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	12/2005 - 06/2007	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-51040	JCG1# ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-)	05/2001 - 04/2004	1
82181-51041	JCG1# ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-)	04/2004 - 12/2005	1
82181-51031	JCG10,15	12/2005 - 12/2999	1
82181-51030	JCG1#	05/2001 - 12/2005	1
82181-51042	JCG1# ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-)	12/2005 - 12/2999	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-51010	JCG1#	05/2001 - 12/2005	1
82182-51020	JCG1# ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-)	05/2001 - 12/2005	1
82182-51011	JCG10,15	12/2005 - 12/2999	1
82182-51021	JCG1# ｱﾘ(ﾊﾞﾂｸﾓﾆﾀ-)	12/2005 - 12/2999	1
82219A - WIRE, SENSOR
82219-51010	JCG1#	05/2001 - 12/2999	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-51050	JCG1#	05/2001 - 12/2999	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-51040	JCG1#	05/2001 - 12/2999	1
82824F - CONNECTOR, WIRING HARNESS
82824-30220	JCG1#	03/2002 - 12/2999	1
82824G - CONNECTOR, WIRING HARNESS
82824-30220	JCG1# NO.1	05/2001 - 12/2999	1
82824G - CONNECTOR, WIRING HARNESS
82824-30220	JCG1# NO.1	05/2001 - 12/2999	1
Common parts
82811-51020
90119-06390

ILLUST NO. 6 OF 8(0105- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82710-24010
82711-20870
82715-24090
82715-30460
82715-30590
82715-30600
82715-30720
82715-30730
82715-30740
82715-3A320
82715-3A330
82715-3A340
82715-3A360
82715-42060
82715-50020
82715-50160
82715-51010
82715-51030
82715-51040
90119-06195
90119-06375
91651-A0614

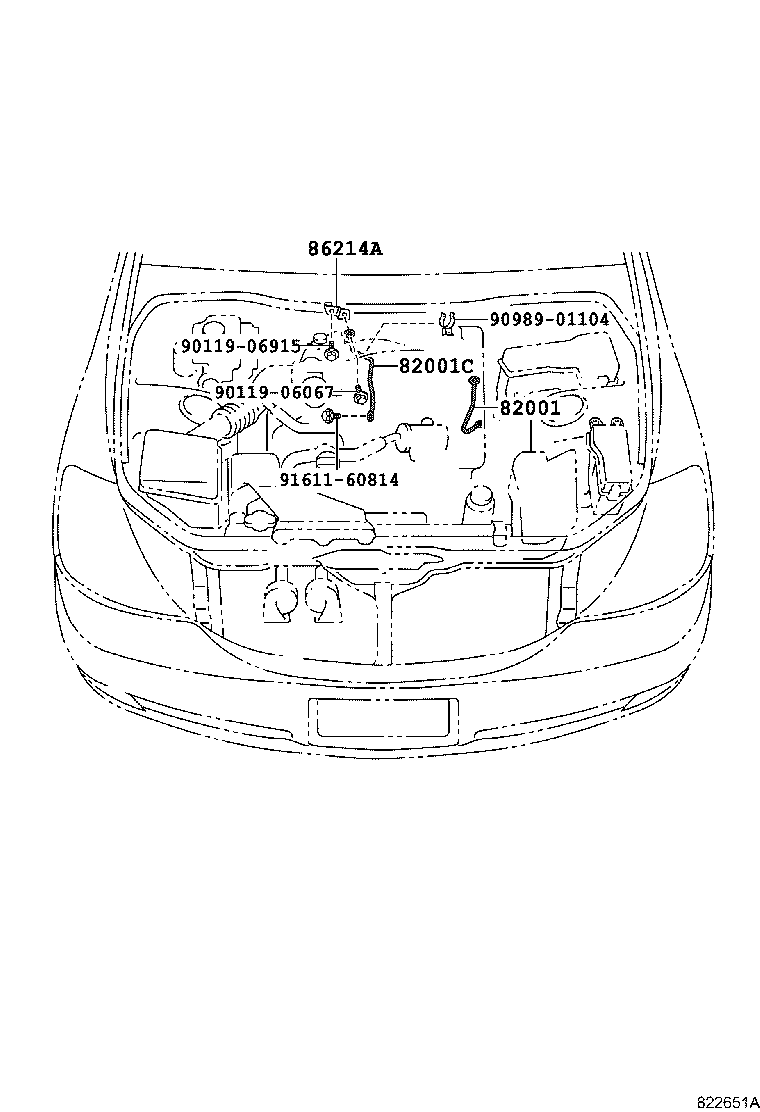

ILLUST NO. 7 OF 8(0105- )

Click highlighted areas on diagram

ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07356	JCG1#	05/2001 - 12/2999	1
82001C - CABLE, BOND, NO.2
90980-07375	JCG1#	05/2001 - 12/2999	1
86214A - BRACKET, RADIO EARTH
82046-30050	JCG1#	05/2001 - 12/2999	1
Common parts
90119-06067
90119-06915
90989-01104
91611-60814

ILLUST NO. 6 OF 8(0105- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82711-14110
82711-3A540
82711-3F230
82711-51010
82715-22760
82715-3A240
82715-3A260
82715-51060
82715-51070
90159-50327
90463-13003
91553-80614
91621-J0612
91631-J0612

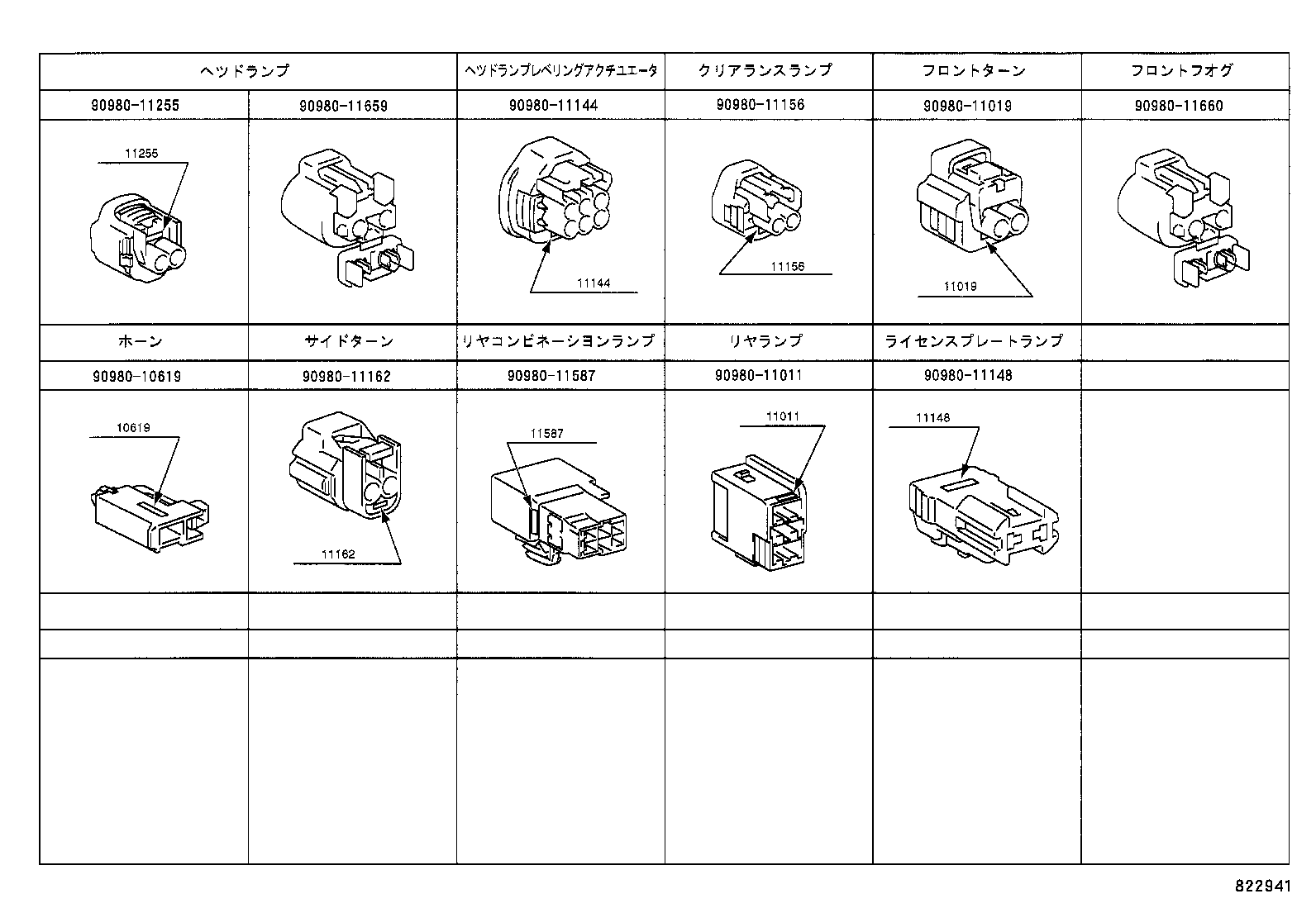

ILLUST NO. 8 OF 8(0105- )

Click highlighted areas on diagram

ｺﾈｸﾀ

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-11011
90980-11019
90980-11144
90980-11148
90980-11156
90980-11162
90980-11255
90980-11587
90980-11659
90980-11660
