JCG10-CEAVH (2001)
Toyota Brevis
Production
May 2001
-
Jun 2007
Engine
1JZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )

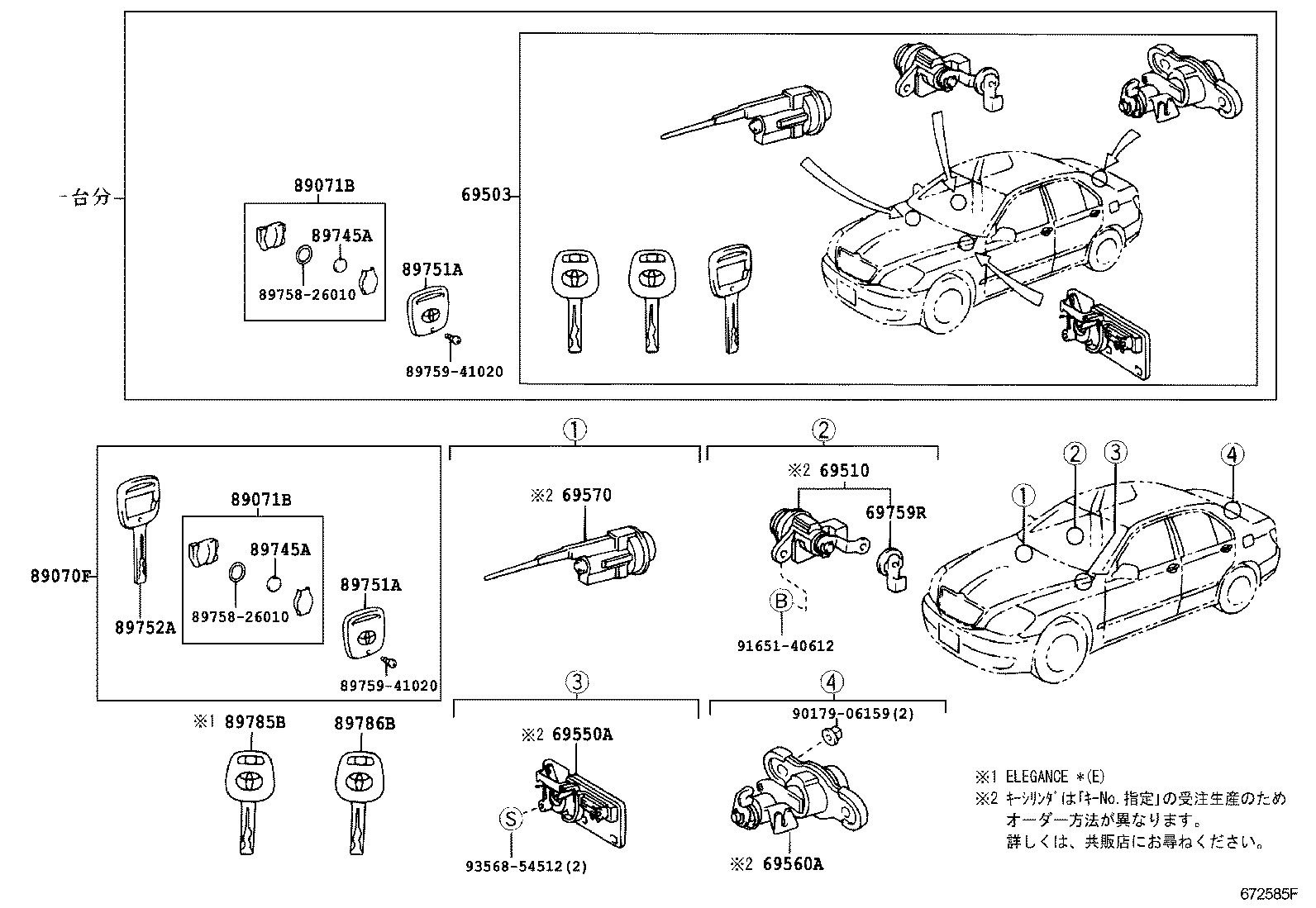

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-51050 |
JCG1# |
1 | ||
| 69005-51080 |
JCG10,15 ELEGANCE *(E) |
1 | ||
| 69005-51060 |
JCG10,15 ELEGANCE *(E) |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-51010 |
JCG1# |
1 | ||
| 69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 69550-30130 |
JCG1# |
1 | ||
| 69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 69560-51040 |
JCG1# |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-30210 |
JCG1# |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
JCG1# |
1 | ||
| 89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY) | ||||
| 89070-51160 |
JCG10,11 |
1 | ||
| 89070-51160 |
JCG1# |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-30010 |
JCG10,15 ELEGANCE *(E) |
1 | ||
| 89071-30010 |
JCG10,15 ELEGANCE *(E) |
1 | ||
| 89071-30010 |
JCG1# |
2 | ||
| 89071-30010 |
JCG1# |
2 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-30010 |
JCG10,15 ELEGANCE *(E) |
1 | ||
| 89071-30010 |
JCG10,15 ELEGANCE *(E) |
1 | ||
| 89071-30010 |
JCG1# |
2 | ||
| 89071-30010 |
JCG1# |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-26010 |
JCG10,15 ELEGANCE *(E) |
1 | ||
| 89745-26010 |
JCG1# |
2 | ||
| 89745-26010 |
JCG10,15 ELEGANCE *(E) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-26010 |
JCG10,15 ELEGANCE *(E) |
1 | ||
| 89745-26010 |
JCG1# |
2 | ||
| 89745-26010 |
JCG10,15 ELEGANCE *(E) |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-51030 |
JCG1# |
2 | ||
| 89751-51030 |
JCG10,15 ELEGANCE *(E) |
1 | ||
| 89751-51030 |
JCG1# |
2 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-51030 |
JCG1# |
2 | ||
| 89751-51030 |
JCG10,15 ELEGANCE *(E) |
1 | ||
| 89751-51030 |
JCG1# |
2 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-51010 |
JCG1# |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-50070 |
JCG10,15 ELEGANCE *(E) |
1 | ||
| 89785-50070 |
JCG10,15 |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-50070 |
JCG1# ｶｯﾄｷｰ |
1 | ||
| Common parts | ||||
| 89758-26010 | ||||
| 89759-41020 | ||||
| 90179-06159 | ||||
| 91651-40612 | ||||
| 93568-54512 | ||||
