JCG10-CEAVH (2001)

Toyota Brevis

Production May 2001 - Jun 2007
Engine 1JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )1JZFSE,2JZFSE..JCG10,11

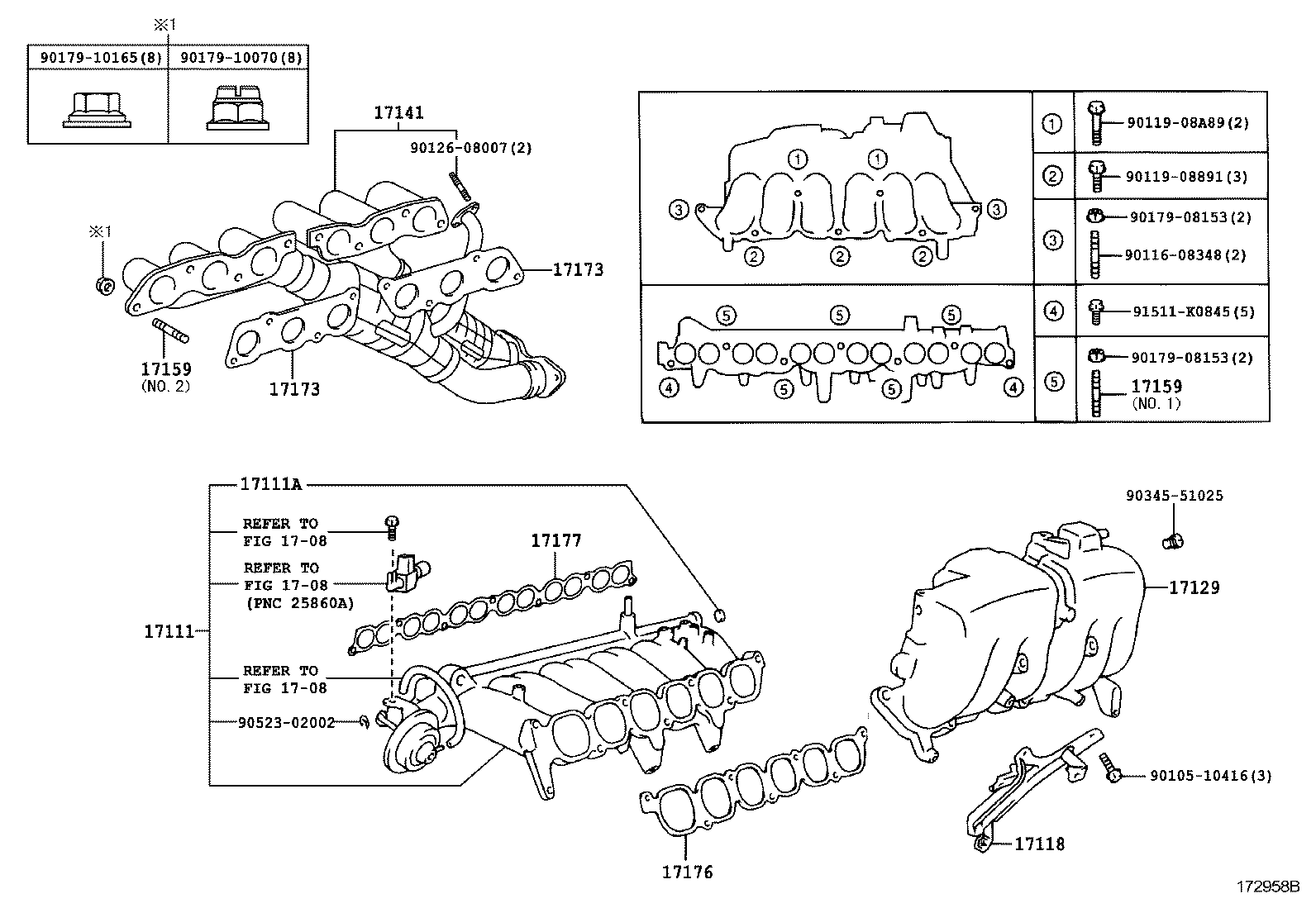

Click highlighted areas on diagram

diagram 1708 1708 1708 17111 17111A 17118 17129 17141 17159 17159 17173 17173 17176 17177 9010510416 9011608348 9011908891 9011908A89 9012608007 9017908153 9017908153 9017910070 9017910165 9034551025 9052302002 91511K0845
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-46040

1JZFSE..JCG10,15

 1
17111A - PLUG, NO.1
96411-41400

1JZFSE,2JZFSE..JCG1#

 1
17118 - STAY, MANIFOLD
17118-46022

1JZFSE,2JZFSE..JCG1#

 1
17118-46021

1JZFSE,2JZFSE..JCG1#

 1
17129 - TANK, INTAKE AIR SURGE
17109-46120

1JZFSE..JCG10,15

 1
17141 - MANIFOLD, EXHAUST
17140-46150

1JZFSE..JCG10

 1
17140-46151

1JZFSE..JCG10

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

1JZFSE,2JZFSE..JCG1#

NO.1

 2
90126-10014

1JZFSE,2JZFSE..JCG1#

NO.2

 8
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

1JZFSE,2JZFSE..JCG1#

NO.1

 2
90126-10014

1JZFSE,2JZFSE..JCG1#

NO.2

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-46051

1JZFSE,2JZFSE..JCG1#

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-46051

1JZFSE,2JZFSE..JCG1#

 2
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-46050

1JZFSE,2JZFSE..JCG1#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-46070

1JZFSE,2JZFSE..JCG1#

 1
Common parts
90105-10416
90116-08348
90119-08891
90119-08A89
90126-08007
90179-08153
90179-10070
90179-10165
90345-51025
90523-02002
91511-K0845
Linked diagrams
1708
