JCG10-CEAVH (2001)

Toyota Brevis

Production May 2001 - Jun 2007
Engine 1JZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )1JZFSE

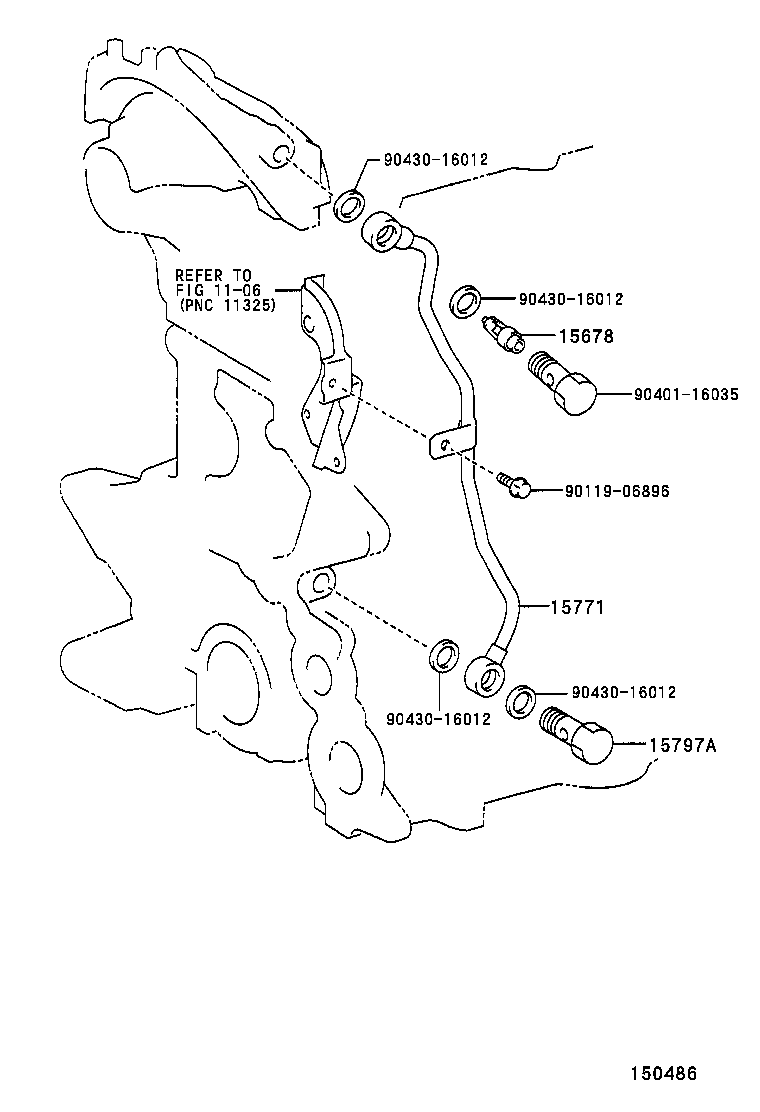

Click highlighted areas on diagram

diagram 1106 15678 15771 15797A 9011906896 9040116035 9043016012 9043016012 9043016012 9043016012
Part # Description Qty Price
15678 - FILTER, OIL CONTROL VALVE
15678-46020

1JZFSE,2JZFSE..JCG1#

 1
15771 - PIPE, OIL, NO.1
15771-46050

1JZFSE..JCG10,15

 1
15797A - BOLT, OIL CHECK VALVE
15797-46010

1JZFSE,2JZFSE..JCG1#

 1
Common parts
90119-06896
90401-16035
90430-16012
Linked diagrams
1106
