LD21G-MNX (1985)
Toyota Blizzard
Production
Sep 1985
-
Feb 1990
Engine
2LT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405-9002)

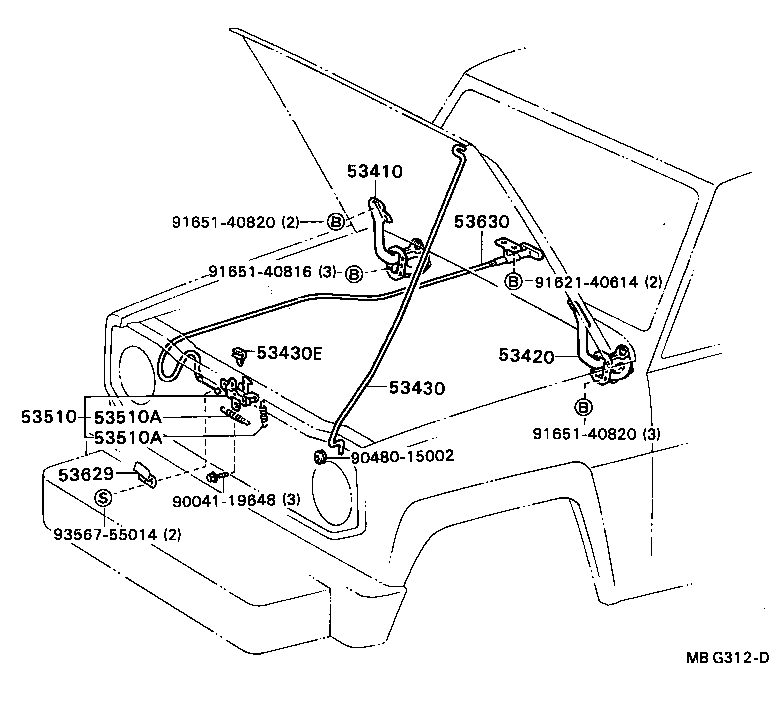

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-87602 |
LD2# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-87602 |
LD2# |
1 | ||
| 53430 - SUPPORT ASSY, HOOD | ||||
| 53441-87601 |
LD2# |
1 | ||
| 53430E - CLAMP, HOOD SUPPORT | ||||
| 53455-87101 |
LD2# |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-87603 |
LD2# |
1 | ||
| 53510-87607 |
LD2# |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09008 |
LD2# 線径=0.9,ｺｲﾙ巻数=21.25,CW=21,WD=0.9 |
1 | ||
| 90045-06216 |
LD2# CW=21,WD=0.9 |
1 | ||
| 90506-09012 |
LD2# CW=45,WD=0.9 |
1 | ||
| 90045-06220 |
LD2# CW=45,WD=0.9 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09008 |
LD2# 線径=0.9,ｺｲﾙ巻数=21.25,CW=21,WD=0.9 |
1 | ||
| 90045-06216 |
LD2# CW=21,WD=0.9 |
1 | ||
| 90506-09012 |
LD2# CW=45,WD=0.9 |
1 | ||
| 90045-06220 |
LD2# CW=45,WD=0.9 |
1 | ||
| 53629 - COVER, HOOD LOCK CONTROL CABLE | ||||
| 53629-87601 |
LD2# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-87604 |
LD2# |
1 | ||
| 53630-87603 |
LD2# |
1 | ||
| Common parts | ||||
| 90041-19648 | ||||
| 90480-15002 | ||||
| 91621-40614 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 93567-55014 | ||||
