LD21G-MEX (1985)
Toyota Blizzard

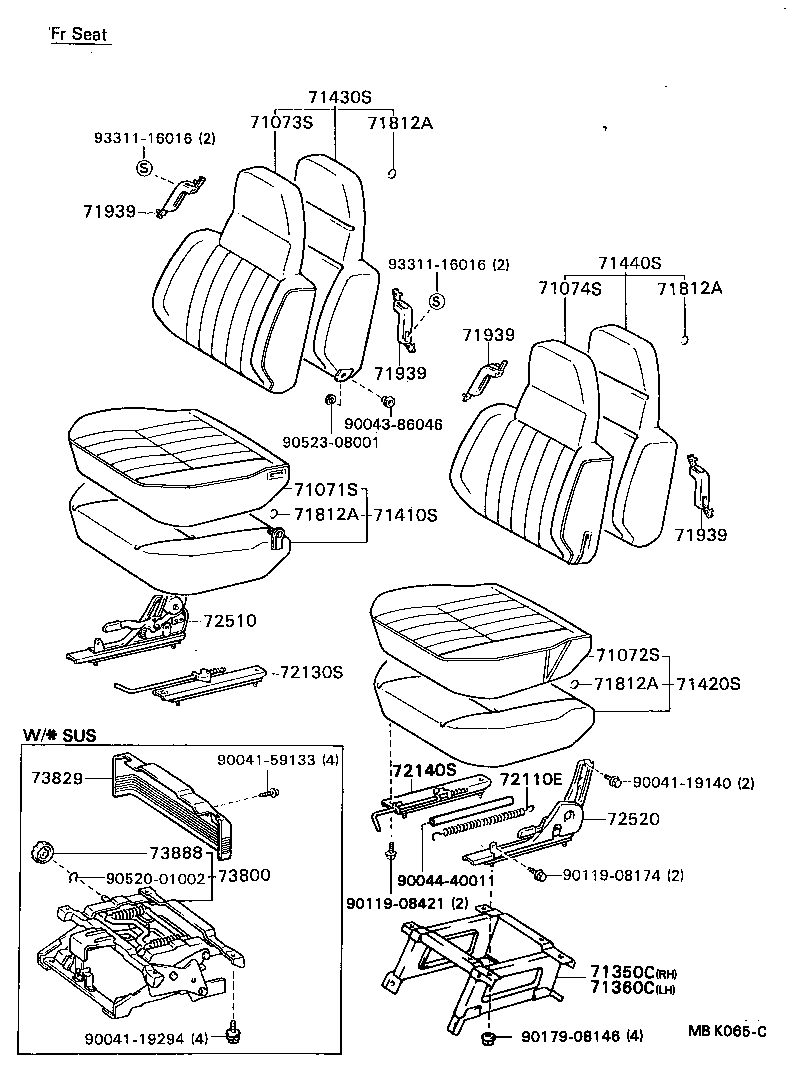

(8509-9002)SX5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-8766703 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71071-8765504 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71071-8765503 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71071-8766704 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-8765004 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71072-8765003 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71072-8766204 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71072-8766203 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-8767503 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71073-8767504 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71073-87E1403 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71073-87E1404 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-87E0203 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71074-87E0204 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71074-8766804 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71074-8766803 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71350C - LEG ASSY, FRONT SEAT CUSHION, RH | ||||
| 71350-87601 |
LD2# |
1 | ||
| 71360C - LEG ASSY, FRONT SEAT CUSHION, LH | ||||
| 71360-87606 |
LD2# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-8766403 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71410-8766404 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71410-87E0404 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71410-87E0403 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-87E1503 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71420-8766903 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71420-8766904 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71420-87E4703 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71420-87E4704 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71420-87E1504 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-87E0303 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71430-87E3603 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71430-87E0304 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71530-8766804 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71530-8766803 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71430-87E3604 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-87E1004 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71440-87E1003 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71540-8767704 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71440-87E4604 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71440-87E4603 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71540-8767703 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
LD2# |
1 | ||
| 71812-87401 |
LD2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
LD2# |
1 | ||
| 71812-87401 |
LD2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
LD2# |
1 | ||
| 71812-87401 |
LD2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
LD2# |
1 | ||
| 71812-87401 |
LD2# |
1 | ||
| 71939 - GRIP, FRONT SEAT ASSIST | ||||
| 71939-87601 |
LD2#..TD |
4 | ||
| 71939-87601 |
LD2#..LX,LX5,SX5 |
4 | ||
| 71939 - GRIP, FRONT SEAT ASSIST | ||||
| 71939-87601 |
LD2#..TD |
4 | ||
| 71939-87601 |
LD2#..LX,LX5,SX5 |
4 | ||
| 71939 - GRIP, FRONT SEAT ASSIST | ||||
| 71939-87601 |
LD2#..TD |
4 | ||
| 71939-87601 |
LD2#..LX,LX5,SX5 |
4 | ||
| 71939 - GRIP, FRONT SEAT ASSIST | ||||
| 71939-87601 |
LD2#..TD |
4 | ||
| 71939-87601 |
LD2#..LX,LX5,SX5 |
4 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90045-06189 |
LD2# |
1 | ||
| 72130S - TRACK ASSY, RH SEAT, INNER (FOR SEPARATE SEAT) | ||||
| 72130-87604 |
LD2# |
1 | ||
| 72130-87611 |
LD2#..LX,LX5,SX5 |
1 | ||
| 72130-87608 |
LD2#..TD W/*SUS |
1 | ||
| 72140S - TRACK ASSY, LH SEAT, INNER (FOR SEPARATE SEAT) | ||||
| 72140-87611 |
LD2#..LX,LX5,SX5 |
1 | ||
| 72140-87607 |
LD2# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-87608 |
LD21 |
1 | ||
| 72510-87612 |
LD21 W/*SUS |
1 | ||
| 72510-8761201 |
LD21 W/*SUS,BLACK,BLACK |
1 | ||
| 72510-8761203 |
LD21..SX5 W/*SUS,SHADOW GRAY,SHADOW GRAY |
1 | ||
| 72510-8760801 |
LD21 BLACK,BLACK |
1 | ||
| 72510-8760803 |
LD21..SX5 SHADOW GRAY,SHADOW GRAY |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-8761001 |
LD21 BLACK,BLACK |
1 | ||
| 72520-8761003 |
LD21..SX5 SHADOW GRAY,SHADOW GRAY |
1 | ||
| 72520-87610 |
LD21 |
1 | ||
| Common parts | ||||
| 90041-19140 | ||||
| 90041-19294 | ||||
| 90041-59133 | ||||
| 90043-86046 | ||||
| 90044-40011 | ||||
| 90119-08174 | ||||
| 90119-08421 | ||||
| 90179-08146 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93311-16016 | ||||

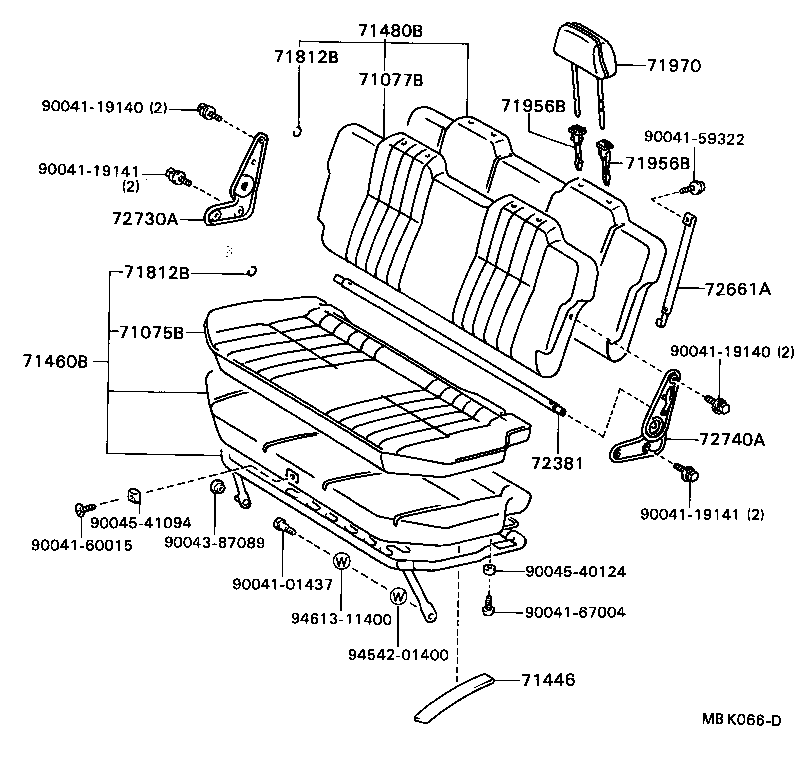

(8509-9002)LD21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-8764803 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71075-8764804 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71065-8760403 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71065-8760404 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-8766103 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71077-8766104 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71077-87E0904 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71077-87E0903 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71446 - SILENCER, SEAT BACK, LH | ||||
| 71446-87301 |
LD21 |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-8764704 |
LD21..SX5 BLUE,GRAY |
1 | ||
| 71460-87E0503 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71460-8764703 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71460-87E0504 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-8765803 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71480-8765804 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71480-87E1503 |
LD21..SX5 GRAY,GRAY |
1 | ||
| 71480-87E1504 |
LD21..SX5 BLUE,BLUE |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
LD2# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-87401 |
LD2# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-8770101 |
LD21 W/LOCK,BLACK,LH,BLACK |
2 | ||
| 71931-8770101 |
LD21 BLACK,RH,BLACK |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-8770101 |
LD21 W/LOCK,BLACK,LH,BLACK |
2 | ||
| 71931-8770101 |
LD21 BLACK,RH,BLACK |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-8760103 |
LD21 SHADOW GRAY(YF12,YF13),SHADOW GRAY |
2 | ||
| 71940-8760101 |
LD21 BLACK(YD13,YD14),BLACK |
2 | ||
| 71940-8760513 |
LD21..SX5 SHADOW GRAY(YJ12),GRAY |
1 | ||
| 71940-8760504 |
LD21..SX5 BLUE(YJ13),BLUE |
2 | ||
| 72381 - ROD, RECLINING ADJUSTER EQUALIZING, NO.1 | ||||
| 72381-87601 |
LD21 |
1 | ||
| 72661A - BAND, REAR SEAT STOP | ||||
| 72661-87605 |
LD21 |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-8760103 |
LD21..SX5 SHADOW GRAY,SHADOW GRAY |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-8760103 |
LD21..SX5 SHADOW GRAY,SHADOW GRAY |
1 | ||
| Common parts | ||||
| 90041-01437 | ||||
| 90041-19140 | ||||
| 90041-19141 | ||||
| 90041-59322 | ||||
| 90041-60015 | ||||
| 90041-67004 | ||||
| 90043-87089 | ||||
| 90045-40124 | ||||
| 90045-41094 | ||||
| 94542-01400 | ||||
| 94613-11400 | ||||
