LD20V-MNX (1984)

Toyota Blizzard

Production Sep 1984 - Nov 1989
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-9002)

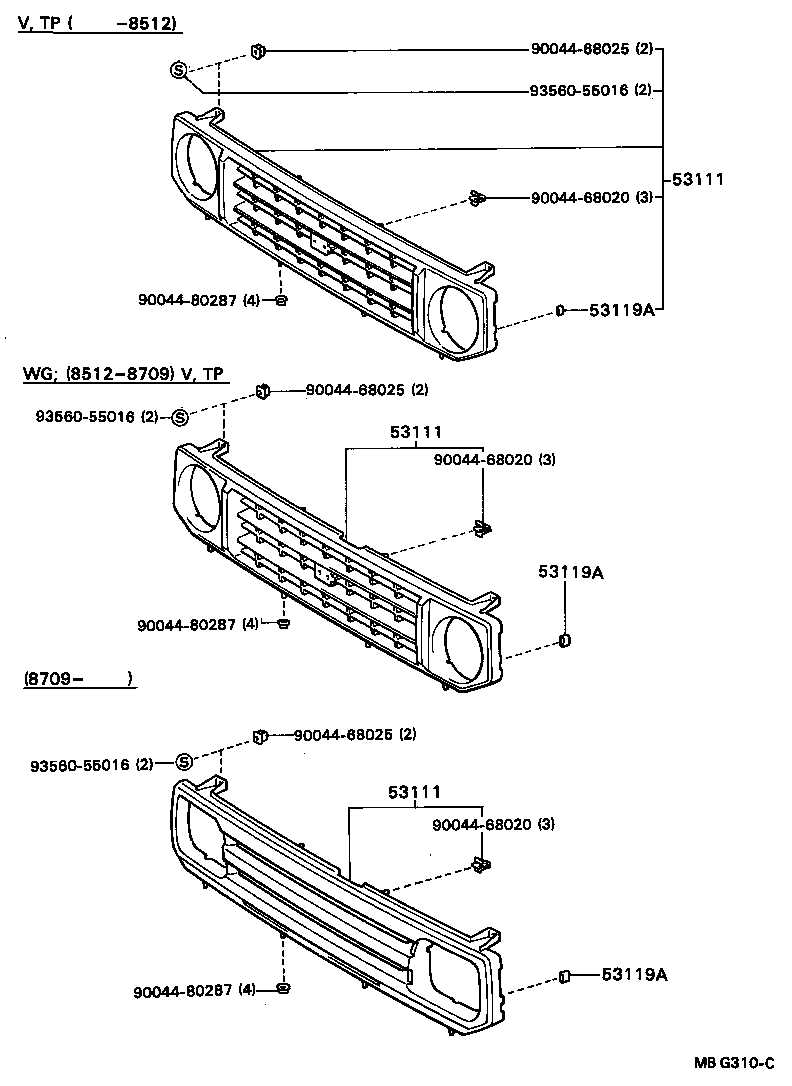

Click highlighted areas on diagram

diagram 53111 53111 53111 53119A 53119A 53119A 9004468020 9004468020 9004468020 9004468025 9004468025 9004468025 9004480287 9004480287 9004480287 9356055016 9356055016 9356055016
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-87608

LD20

 1
53111-87613

LD2#..DX,LX,LX5

GRAY M

 1
53111-87614

LD2#..(LX,LX5)..TD

SILVER M,2N8 ,20A

 1
53111-87681

LD20

 1
53111 - GRILLE, RADIATOR
53111-87608

LD20

 1
53111-87613

LD2#..DX,LX,LX5

GRAY M

 1
53111-87614

LD2#..(LX,LX5)..TD

SILVER M,2N8 ,20A

 1
53111-87681

LD20

 1
53111 - GRILLE, RADIATOR
53111-87608

LD20

 1
53111-87613

LD2#..DX,LX,LX5

GRAY M

 1
53111-87614

LD2#..(LX,LX5)..TD

SILVER M,2N8 ,20A

 1
53111-87681

LD20

 1
53119A - CUSHION, RADIATOR GRILLE TO FRONT VALANCE PANEL
53119-87602

LD2#

 2
53119A - CUSHION, RADIATOR GRILLE TO FRONT VALANCE PANEL
53119-87602

LD2#

 2
53119A - CUSHION, RADIATOR GRILLE TO FRONT VALANCE PANEL
53119-87602

LD2#

 2
Common parts
90044-68020
90044-68025
90044-80287
93560-55016
