LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 1(8405- )

Click highlighted areas on diagram

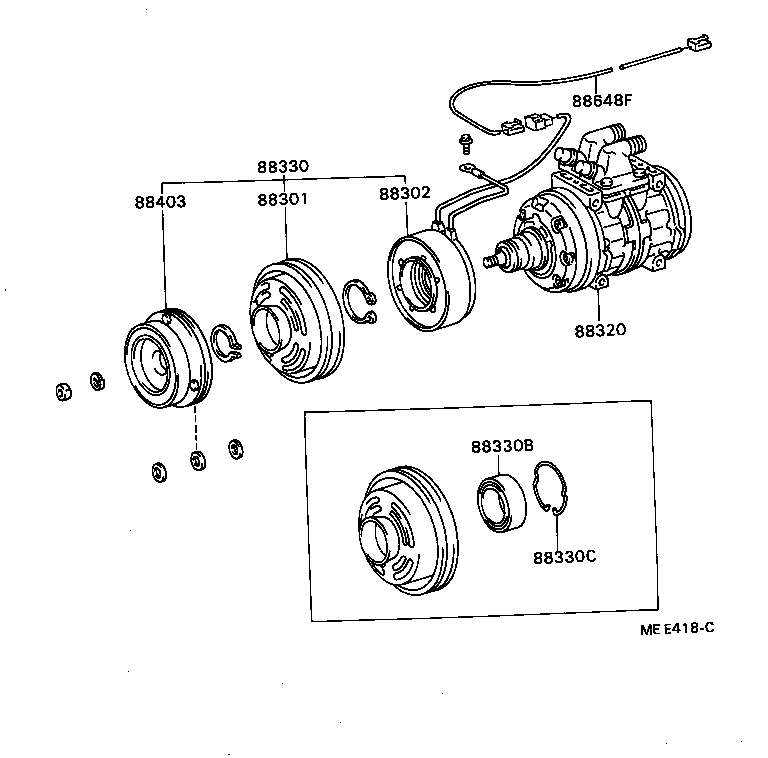

diagram 88301 88302 88320 88330 88330B 88330C 88403 88648F
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22030

LD2#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050

LD2#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-60120

LD20..DSL

 1
88320-60121

LD20..DSL

 1
88330 - CLUTCH ASSY, MAGNET
88410-22080

LD2#

 1
88330B - BEARING, MAGNET CLUTCH
90099-10133

LD2#

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07114

LD2#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14030

LD2#

 1
88648F - WIRE, MAGNET CLUTCH
88648-87605

LD2#

 1

ILLUST NO. 2 OF 2(8405- )

Click highlighted areas on diagram

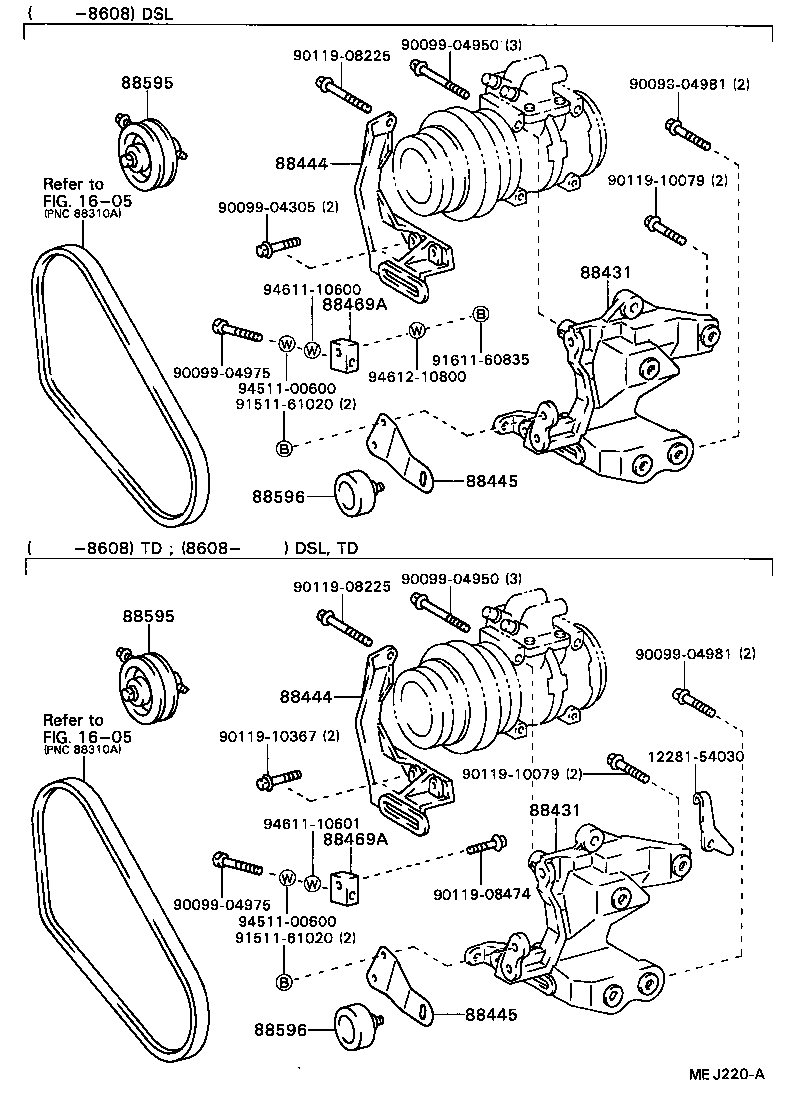

diagram 1228154030 1605 1605 88431 88431 88444 88444 88445 88445 88469A 88469A 88595 88595 88596 88596 9009904305 9009904950 9009904950 9009904975 9009904975 9009904981 9009904981 9011908225 9011908225 9011908474 9011910079 9011910079 9011910367 9151161020 9151161020 9161160835 9451100600 9451100600 9461110600 9461110601 9461210800
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-26180

LD20..DSL

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-26180

LD20..DSL

 1
88444 - BRACKET, IDLE PULLEY
88444-26060

LD2#

 1
88444 - BRACKET, IDLE PULLEY
88444-26060

LD2#

 1
88445 - BRACKET, IDLE PULLEY
88444-26070

LD2#

 1
88445 - BRACKET, IDLE PULLEY
88444-26070

LD2#

 1
88469A - COLLAR, ADJUSTING
88469-30280

LD2#

 1
88469A - COLLAR, ADJUSTING
88469-30280

LD2#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

LD2#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

LD2#

 1
88596 - PULLEY ASSY, IDLE, NO.2
88440-26070

LD2#

 1
88596 - PULLEY ASSY, IDLE, NO.2
88440-26070

LD2#

 1
Common parts
12281-54030
90099-04305
90099-04950
90099-04975
90099-04981
90119-08225
90119-08474
90119-10079
90119-10367
91511-61020
91611-60835
94511-00600
94611-10600
94611-10601
94612-10800
Linked diagrams
1605
