LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

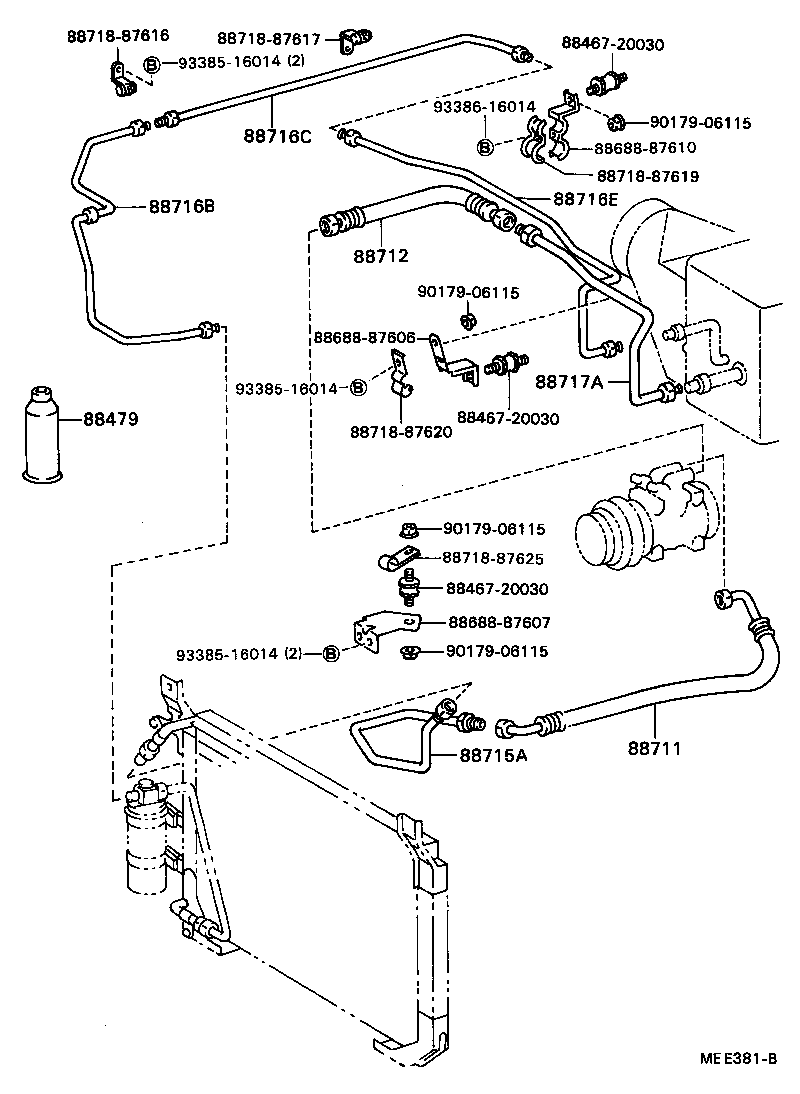

ILLUST NO. 2 OF 2(8405- )DSL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
LD20 400G |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-87606 |
LD20..DSL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-87609 |
LD20..DSL |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-87606 |
LD20..DSL |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-87622 |
LD2# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-87623 |
LD2# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-87625 |
LD2# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-87609 |
LD20..DSL |
1 | ||
| Common parts | ||||
| 88467-20030 | ||||
| 88688-87606 | ||||
| 88688-87607 | ||||
| 88688-87610 | ||||
| 88718-87616 | ||||
| 88718-87617 | ||||
| 88718-87619 | ||||
| 88718-87620 | ||||
| 88718-87625 | ||||
| 90179-06115 | ||||
| 93385-16014 | ||||
| 93386-16014 | ||||

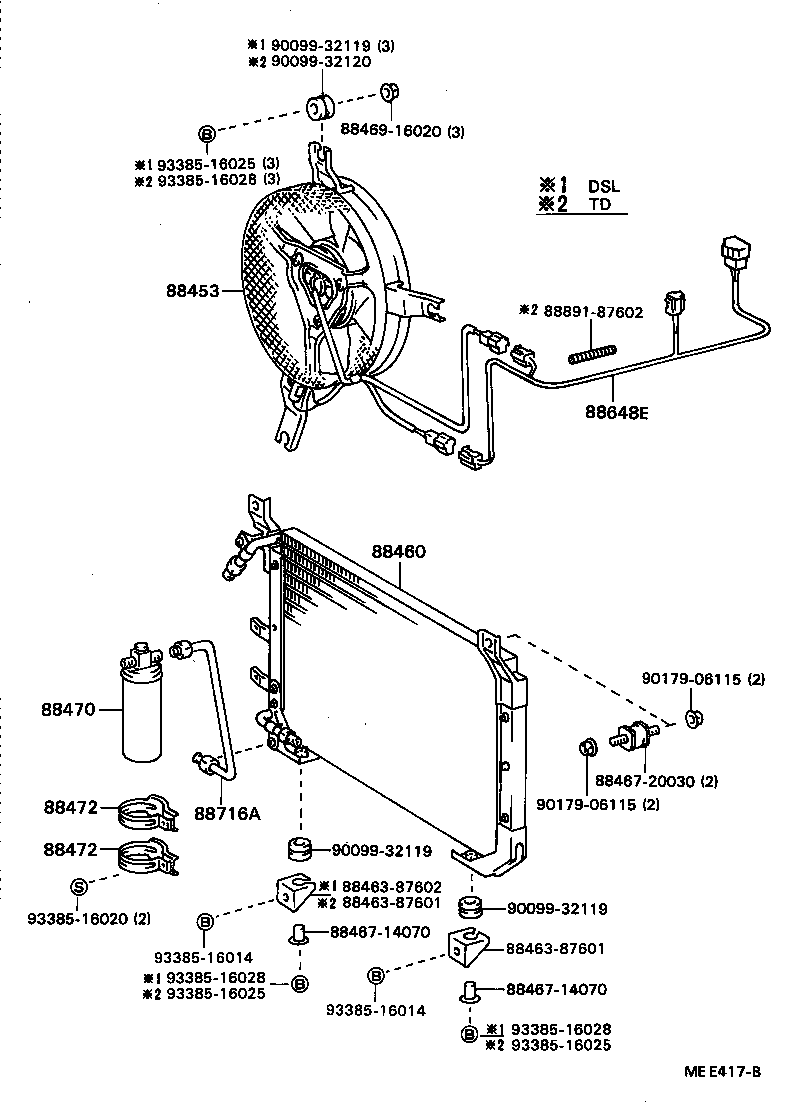

ILLUST NO. 1 OF 2(8405- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88454-87608 |
LD2# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-87606 |
LD2# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12050 |
LD2# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
LD2# |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
LD2# |
2 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-87606 |
LD20..DSL |
1 | ||
| 88648-87606 |
LD2# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-87627 |
LD2# |
1 | ||
| Common parts | ||||
| 88463-87601 | ||||
| 88463-87602 | ||||
| 88467-14070 | ||||
| 88467-20030 | ||||
| 88469-16020 | ||||
| 88891-87602 | ||||
| 90099-32119 | ||||
| 90099-32120 | ||||
| 90179-06115 | ||||
| 93385-16014 | ||||
| 93385-16020 | ||||
| 93385-16025 | ||||
| 93385-16028 | ||||
