LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

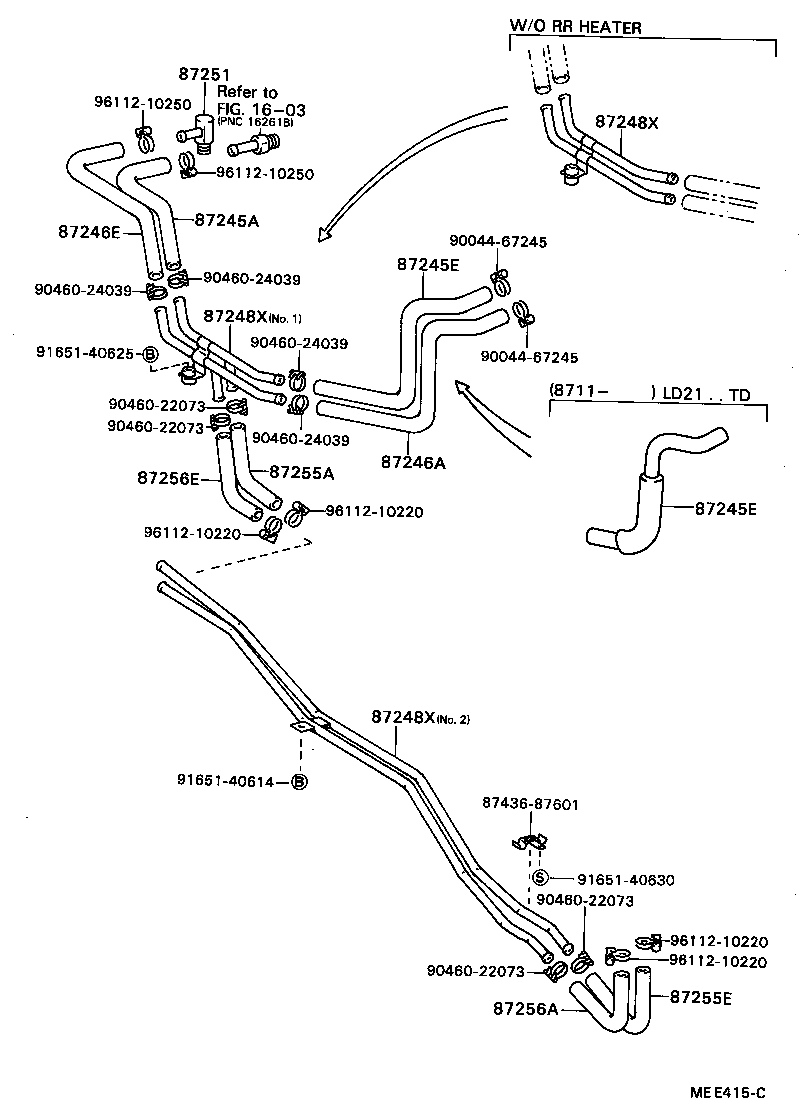

Click highlighted areas on diagram

diagram 1603 87245A 87245E 87245E 87246A 87246E 87248X 87248X 87248X 87251 87255A 87255E 87256A 87256E 8743687601 9004467245 9004467245 9046022073 9046022073 9046022073 9046022073 9046024039 9046024039 9046024039 9046024039 9165140614 9165140625 9165140630 9611210220 9611210220 9611210220 9611210220 9611210250 9611210250
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-87617

LD20..DSL

 1
87245E - HOSE, HEATER WATER, INLET E
87245-87656

LD2#

 1
87245-87656

LD20..DSL

 1
87245-87619

LD2#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-87656

LD2#

 1
87245-87656

LD20..DSL

 1
87245-87619

LD2#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-87620

LD2#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-87618

LD20..DSL

 1
87248X - PIPE, HEATER WATER
87208-87603

LD2#

NO.2

 1
87208-87602

LD2#

NO.1

 1
87208-87601

LD2#

W/O RR HEATER

 1
87248X - PIPE, HEATER WATER
87208-87603

LD2#

NO.2

 1
87208-87602

LD2#

NO.1

 1
87208-87601

LD2#

W/O RR HEATER

 1
87248X - PIPE, HEATER WATER
87208-87603

LD2#

NO.2

 1
87208-87602

LD2#

NO.1

 1
87208-87601

LD2#

W/O RR HEATER

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LD2#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-87621

LD2#

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-87623

LD2#

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-87623

LD2#

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-87622

LD2#

 1
Common parts
87436-87601
90044-67245
90460-22073
90460-24039
91651-40614
91651-40625
91651-40630
96112-10220
96112-10250
Linked diagrams
1603
